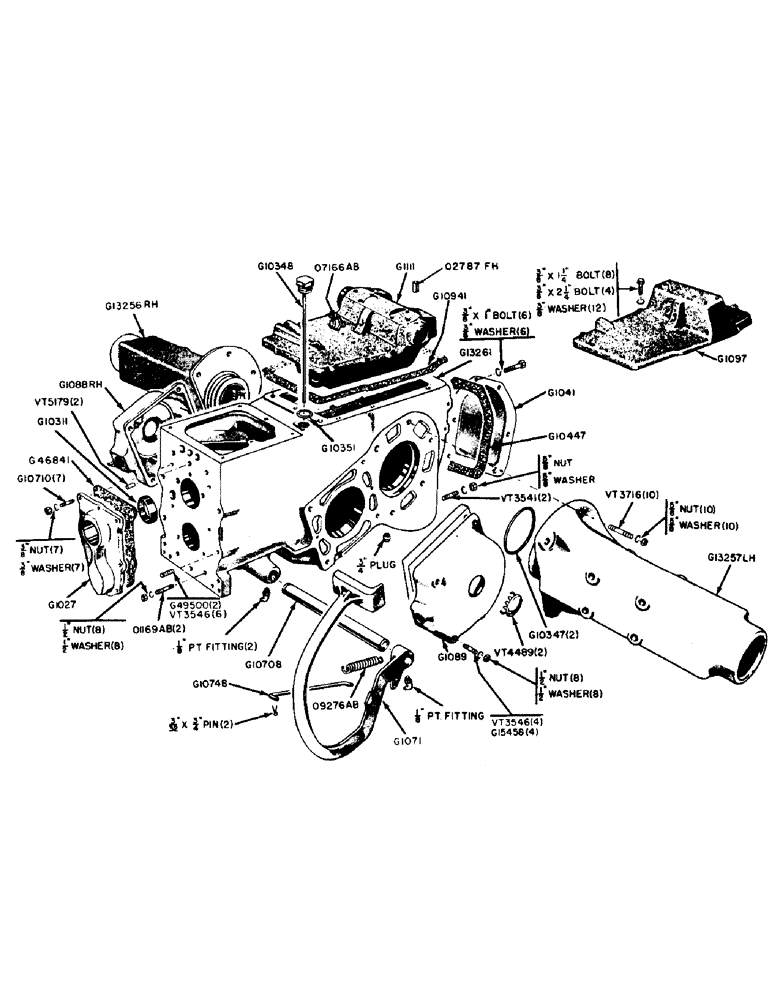

Запчасти Case IH 300-SERIES (104) - TRANSMISSION CASE AND REAR AXLE HOUSINGS UTILITY TRACTORS (06) - POWER TRAIN

G1027

COVER

- front transmission case (4 speed transmission only)

1шт.

G1041

COVER

- rear (P.T.O. opening)

1шт.

3/8" X 1" NC HEX. HD. BOLT W/LOCKWASHER

6шт.

G1071

PEDAL - clutch

1шт.

1/8" 67-1/2 degree fitting (Lincoln #5300)

1шт.

G1088

COVER - R.H. brake

1шт.

G1089

COVER - L.H. brake

1шт.

G1096

CASE - transmission (Use G13261)

1шт.

G1097

COVER - top rear, transmission case (Without Eagle Hitch)

1шт.

3/8" X 1-1/4" NC HEX. HD. BOLT W/LOCKWASHER

8шт.

3/8" X 2-1/4" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

G1111

HOUSING - Eagle Hitch rockshaft

1шт.

G1116

HOUSING (Use G13256)

1шт.

G1117

HOUSING (Use G13257)

1шт.

G10311

COLLAR

- pilot, for G1027 cover

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - axle housing inner seal (5-1/4" dia.)

2шт.

G10348

DIPSTICK

- transmission oil level

1шт.

G10351

GASKET

- dipstick

1шт.

G10447

GASKET

- G1041, Serial Range: cover-case

1шт.

G10708

SHAFT

- clutch and brake pedals

1шт.

G10710

STUD

- front cover to transmission case (3/8" x 1-5/8")

7шт.

3/8" NF HEX. NUT AND LOCKWASHER

7шт.

G10748

LINK

ROD - link, clutch, Serial Range: pedal-lever

1шт.

3/32" X 3/4" COTTER PIN

2шт.

G10941

GASKET

- G1097 or G1111 to transmission case

1шт.

G13256

HOUSING - rear axle, R.H. (Includes bearing cups)

1шт.

5/8" X 1-3/4" NC HEX. HD. BOLT

1шт.

G13257

HOUSING - rear axle, L.H. (Includes bearing cups)

1шт.

G13261

CASE - transmission (Includes 2-VT2067 snap rings, 2-VT2097 bearing cups and 7-G10710, 2-G49500, 2-O1169AB, 2-VT3541, 8-VT3546, 4-G15458 and 9-VT3716 studs)

1шт.

3/4" SQ. HD. PIPE PLUG

1шт.

1/4" 45 DEGREE FITTING (Lincoln #5200)

2шт.

G15458

STUD

- brake cover to transmission case (1/2" x 4-1/2")

4шт.

1/2" NF HEX. NUT AND LOCKWASHER

4шт.

G46841

GASKET

- front cover, transmission case

1шт.

G49500

STUD

- torque tube to transmission case (1/2" x 2-3/16")

2шт.

1/2" NF HEX. NUT AND LOCKWASHER

2шт.

O1169AB

STUD - torque tube to transmission case (1/2" x 2-3/16")

2шт.

1/2" NF HEX. NUT AND LOCKWASHER

2шт.

O7166AB

X

BREATHER - rear cover

1шт.

O9276AB

X

SPRING - return, clutch pedal

1шт.

O2787FH

X

ROLL PIN - E.H. rockshaft housing to transmission case (1/2" x 1")

1шт.

VT3541

STUD - draw bar support (5/8" x 2")

2шт.

5/8" NF HEX. NUT AND LOCKWASHER

2шт.

VT3546

X

STUD - torque tube and brake cover to transmission case (1/2" x 2-1/2")

8шт.

1/2" NF HEX. NUT AND LOCKWASHER

8шт.

VT3716

STUD - axle housing (5/8" x 2-11/16")

9шт.

5/8" NF HEX. NUT AND LOCKWASHER

9шт.

VT4489

X

PLUG - button, brake cover

2шт.

VT5179

X

DOWEL - torque tube to transmission case (1/2" x 1-5/16")

2шт.
