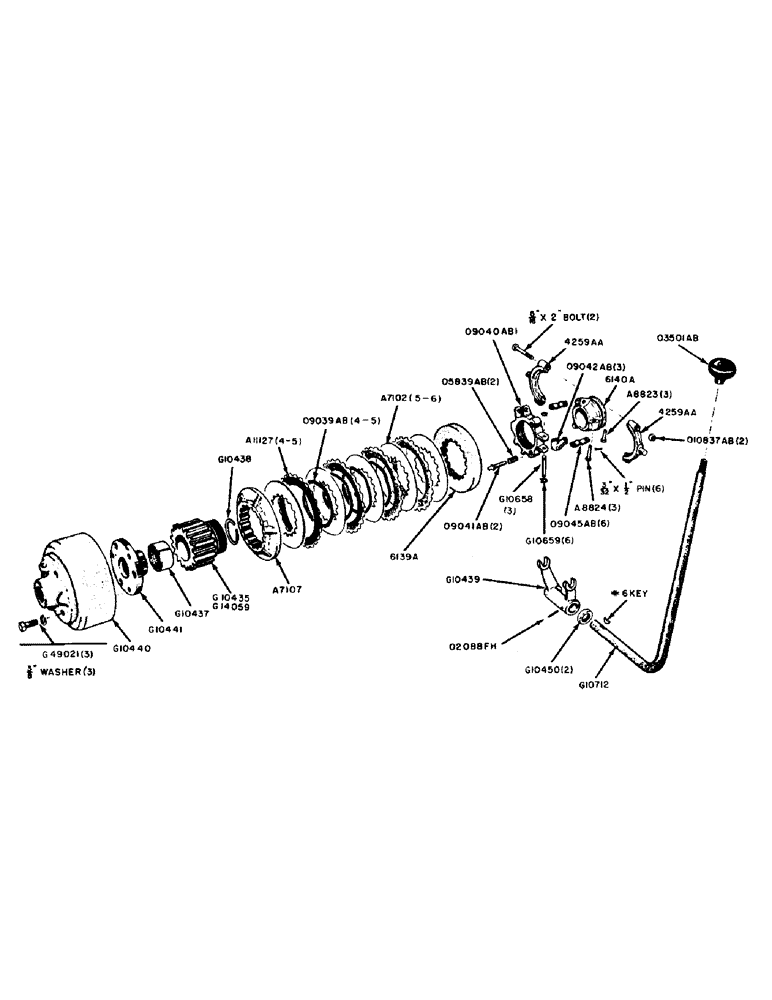

Запчасти Case IH 300-SERIES (102) - HAND CLUTCH, PARTS FOR MULTIPLE PLATE CLUTCH (06) - POWER TRAIN

G10439

COUPLING

YOKE - hand clutch throw-out

1шт.

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

OIL SEAL - hand clutch lever

2шт.

G10712

LEVER - hand clutch throw-out

1шт.

#6 WOOORUFF KEY

1шт.

O3501AB

X

KNOB - clutch lever

1шт.

O2088FH

X

ROLL PIN - yoke to clutch lever (3/16" x 1-3/8")

1шт.

A7102

CLUTCH DRIVING PLATE

PLATE - driven (Steel ground finish)

6шт.

A7107

PLATE

- backing

1шт.

A8823

PIN,6.29mm OD x 26.99mm L

- outer, clutch lever link

3шт.

3/32" X 1/2" COTTER PIN

3шт.

A8824

PIN

- inner, clutch lever link

3шт.

3/32" X 1/2" COTTER PIN

3шт.

A11127

PLATE

- clutch drive (Bronze, circular corregations)

5шт.

G10435

HUB - clutch (2-1/2" long) (Includes G10437 bushing and G10438 snap ring)

1шт.

G10437

BEARING

BUSHING - clutch hub

1шт.

G10438

RING

SNAP RING - internal, clutch hub

1шт.

G10440

DRUM HUB

DRUM - clutch

1шт.

G10441

HUB CAP

HUB - clutch drum

1шт.

G10658

AXLE PIN

PIN - pivot, clutch finger

3шт.

G10659

SNAP RING,#31, Ext

Ring, Snap, , pivot pin #31, Ext

6шт.

G14059

HUB CAP

HUB - clutch (2-3/4" long) (Includes G10437 bushing and G10438 snap ring)

1шт.

G49021

BOLT (SPREADER)

BOLT - drilled, Serial Range: drum-hub

3шт.

6139A

X

PLATE - pressure

1шт.

6140A

X

SLEEVE - sliding

1шт.

6141A

X

COLLAR (Use 4259AA)

1шт.

O5839AB

X

SPRING - lock pin, clutch adjusting

2шт.

O9039AB

SPRING

- seperator, drive plate

5шт.

O9040AB1

X

YOKE - clutch adjusting

1шт.

O9041AB

X

PIN - lock, clutch adjusting

2шт.

O9042AB

X

FINGER - clutch

3шт.

O9045AB

LINK - clutch lever

6шт.

O10837AB

STOP NUT - 4259A collar bolts

2шт.

4259AA

X

COLLAR - clutch throw-out (Includes collar with 2 - 5/16" x 2" N.F. hex. hd. bolts and 2 - O10837AB stop nuts)

1шт.
