(093) - BELT PULLEY ATTACHMENT, IDLER PULLEY ATTACHMENT FOR TRACTORS W/ ADJUSTABLE FRONT AXLES

Запчасти Case IH 300-SERIES (093) - BELT PULLEY ATTACHMENT, IDLER PULLEY ATTACHMENT FOR TRACTORS W/ ADJUSTABLE FRONT AXLES (06) - POWER TRAIN

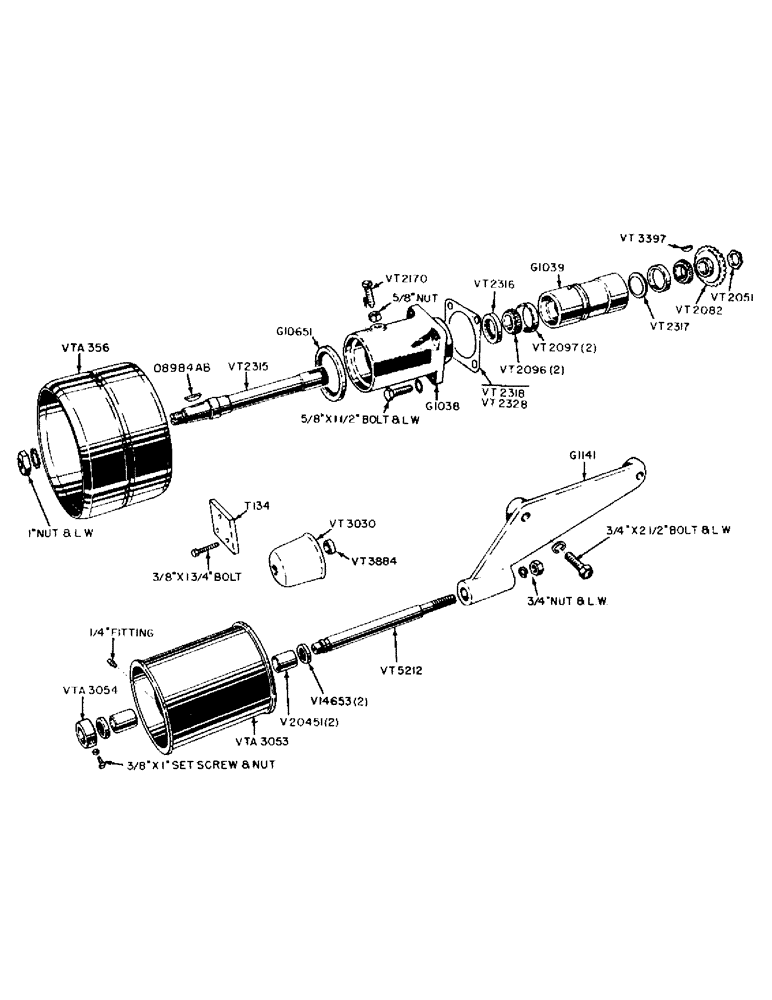

Схема запчастей Case IH 300-SERIES - (093) - BELT PULLEY ATTACHMENT, IDLER PULLEY ATTACHMENT FOR TRACTORS W/ ADJUSTABLE FRONT AXLES (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G1038

HOUSING - sleeve, belt pulley

1шт.

5/8" X 1-1/2" HEX. HD. BOLT, NC w/I.T. Shakeproof lockwasher

4шт.

G1039

SLEEVE - belt pulley shaft

1шт.

G10651

OIL SEAL

- front, sleeve housing

1шт.

T134

PULLER - belt pulley

1шт.

3/8" X 1-3/4" HEX. HD. BOLT, NC

3шт.

O8984AB

X

KEY - pulley to shaft (Woodruff)

1шт.

VT2051

NUT - adjusting, shaft

1шт.

VT2082

GEAR - belt pulley shaft

1шт.

VT2096

X

CONE - bearing (Timken #14137-A)

2шт.

VT2097

X

CUP - bearing (Timken #14276)

2шт.

VT2170

SET SCREW - belt pulley sleeve

1шт.

5/8" HEX. NUT, NC

1шт.

VT2315

SHAFT - belt pulley

1шт.

1" HEX. JAM NUT, NF and E.T. Shakeproof lockwasher

1шт.

VT2316

X

OIL SEAL - pulley shaft

1шт.

VT2317

SHIELD - oil, shaft

1шт.

VT2318

SHIM - pulley sleeve housing (.005" blue)

1шт.

VT2328

SHIM - pulley sleeve housing (.003" green)

1шт.

VT3030

COLOR - pulley shaft

1шт.

VT3397

KEY - gear to shaft (Woodruff)

1шт.

VT3884

SPACER - between cover and shaft

1шт.

VTA356

PULLEY - belt (9-1/4" O.D. x 6-3/8" wide)

1шт.

G1141

BRACKET - pulley mounting, idler pulley attachment (tractors with adjustable front axle)

1шт.

3/4" X 2-1/4" HEX. HD. BOLT, NC w/lockwasher, idler pulley attachment (tractors with adjustable front axle)

2шт.

VT631

PULLEY (Use VTA3053), idler attachment (tractors with adjustable front axle)

1шт.

V14653

OIL SEAL, idler pulley attachment (tractors with adjustable front axle)

2шт.

V20451

BUSHING - idler pulley, attachment (tractors with adjustable front axle)

2шт.

VT5212

SHAFT - pulley, idler attachment (tractors with adjustable front axle)

1шт.

3/4" HEX. NUT, NC and lockwasher, idler pulley attachment (tractors with adjustable front axle)

1шт.

VTA3053

PULLEY - idler, includes bushings, tractors with adjustable front axle

1шт.

1/4" STR. DRIVE FITTING (Alemite #1743), idler pulley attachment (tractors with adjustable front axle)

1шт.

VTA3054

THRUST COLLAR ASSEMBLY, idler pulley attachment (tractors with adjustable front axle)

1шт.

3/8" X 1" SQ. HD. DOG PT. SET SCREW W/HEX. JAM NUT, idler pulley attachment (tractors with adjustable front axle)

1шт.
