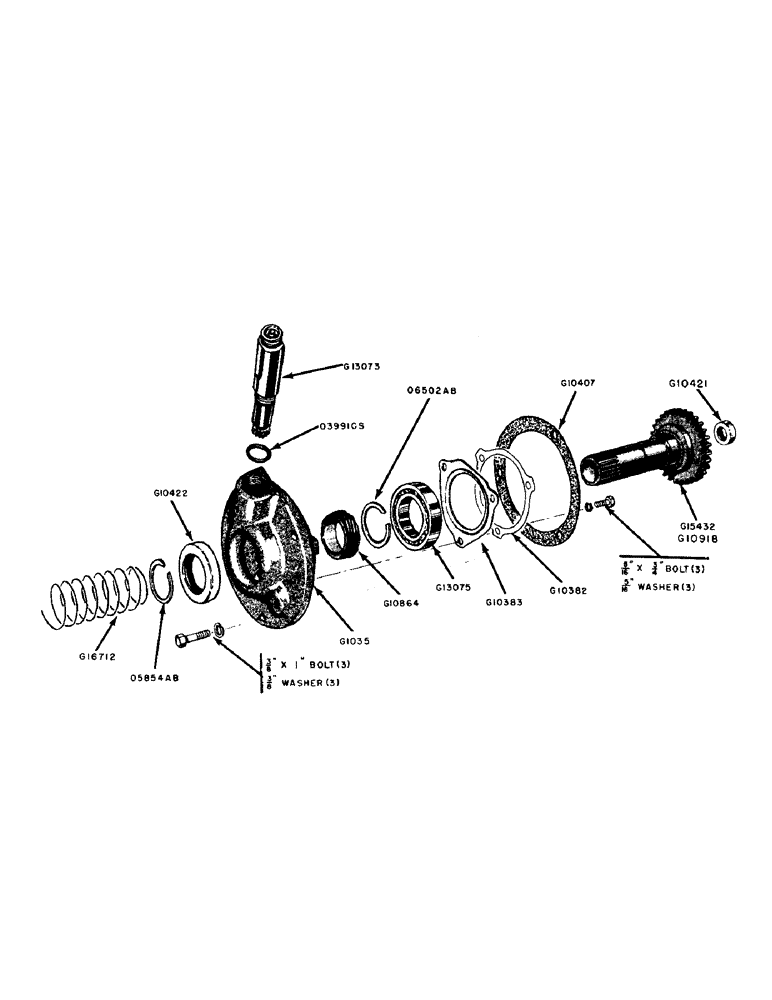

Запчасти Case IH 300-SERIES (092) - HYDRAULIC PUMP AND TACHOMETER DRIVE HOUSING ASSEMBLY (06) - POWER TRAIN

G1035

HOUSING - hydraulic pump and tachometer drive

1шт.

3/8" X 1" UNC HEX. BOLT AND LOCKWASHER

3шт.

G10382

LOCK

- bearing retainer bolt

1шт.

5/16" X 3/4" UNC HEX. BOLT W/LOCKWASHER

3шт.

G10383

BEARING CAP

CAP - bearing retainer

1шт.

G10407

GASKET

- pump drive housing

1шт.

G10421

OIL SEAL

- hydraulic, drive gear

1шт.

G10422

OIL SEAL

OIL SEAL - drive housing

1шт.

G10864

GEAR - tachometer drive

1шт.

G10918

GEAR - hydraulic pump and tachometer drive (Single plate clutch)

1шт.

G13073

TACHOMETER DRIVE SLEEVE AND GEAR ASSEMBLY

1шт.

G13075

BEARING, BALL

BEARING - hydraulic, drive gear (N.D. 3L07)

1шт.

G15432

GEAR - hydraulic pump and tachometer drive (Double plate clutch)

1шт.

G16712

VALVE SPRING

SPRING - release bearing carrier

1шт.

O5854AB

X

SNAP RING

1шт.

O6502AB

RING, SNAP

SNAP RING

1шт.

O3991CS

X

"O" RING - tachometer drive sleeve seal

1шт.
