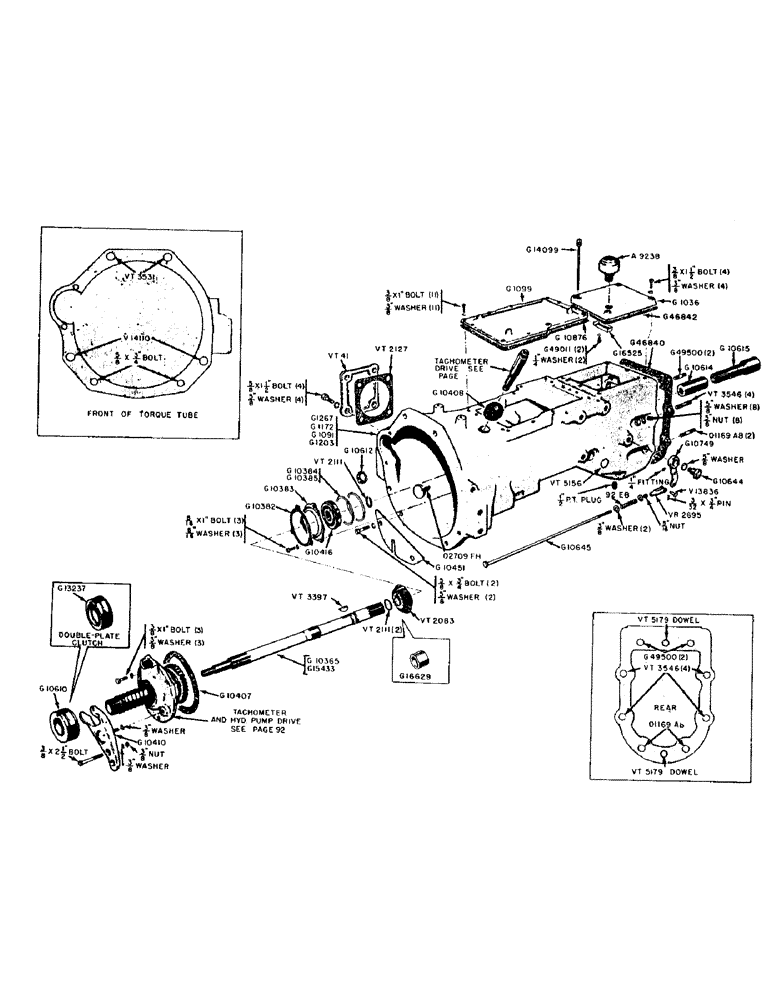

Запчасти Case IH 300-SERIES (090) - TORQUE TUBE (06) - POWER TRAIN

A9238

BREATHER

- torque tube rear cover

1шт.

A10059

FILTER, ELEMENT

ELEMENT - A9238 breather

1шт.

G1031

TUBE - torque (Use G1172)

1шт.

G1036

COVER - rear, torque tube (4 speed transmission)

1шт.

3/8" X 1-1/2" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

G1091

TUBE - torque (Diesel engine) See G1203

1шт.

G1099

COVER

- front, torque tube (Tractors without hydraulics)

1шт.

3/8" x 1" NC HEX. HD. BOLT W/LOCKWASHER

11шт.

G1155

TUBE - torque (Use G1172)

1шт.

G1172

TUBE - torque (Spark ignition engine) See G1267

1шт.

G1202

TUBE - torque (Use G1267)

1шт.

G1203

TUBE - torque (Diesel engine w/shuttle transmission)

1шт.

G1267

TUBE - torque (Spark ignition engine w/shuttle transmission)

1шт.

G1268

TUBE - torque (Use G1267)

1шт.

G10382

LOCK

- bearing retainer

1шт.

5/16" X 1" NC HEX. HD. BOLT W/LOCKWASHER

3шт.

G10383

BEARING CAP

CAP - clutch shaft bearing

1шт.

G10384

SHIM - rear bearing adjusting (.005")

1шт.

G10385

SHIM - rear bearing adjusting (.010")

1шт.

G10407

GASKET

- tachometer drive housing

1шт.

G10408

SEAL

- rubber, tachometer drive housing

1шт.

G10410

X

YOKE - clutch throwout

1шт.

3/8" X 2-1/2" HEX. HD. BOLT (NC cut thrd.) w/hex. nut and lockwasher

1шт.

G10416

BALL BEARING,30mm ID x 72mm OD x 19mm W

BEARING - clutch mainshaft (ND #43306) Includes snap ring

1шт.

G10451

COVER - flywheel

1шт.

5/8" X 3/4" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G10610

BEARING ASSY

BEARING - throwout (Single plate clutch) See G13237

1шт.

G10612

COVER

- timing hole (Plug button)

1шт.

G10614

SLEEVE - drive shaft coupling (Tractor without hand clutch)

1шт.

G10615

SLEEVE - drive shaft coupling (4-speed transmission only)

1шт.

G10644

SCREW

BOLT - shoulder, clutch lever

1шт.

5/8" ET SHAKEPROOF LOCKWASHER

1шт.

G10645

ROD - clutch throwout

1шт.

G10749

LEVER - clutch throwout rod

1шт.

1/4" GREASE FITTING (Lincoln #5013)

1шт.

G10876

GASKET

- G1099 front cover

1шт.

G13237

BEARING ASSY

BEARING - throwout (Double plate clutch) See G10610

1шт.

G14099

TUBE,1.5, 3.562" L

DIPSTICK - oil level, torque tube

1шт.

G15433

SHAFT - clutch main drive (Double plate clutch) See G10365

1шт.

G16525

DEFLECTOR - oil, under G1036 cover

1шт.

G46840

GASKET

GASKET - torque tube to transmission case

1шт.

G46842

GASKET

- G1036 rear cover

1шт.

G49011

SCREW - cap, oil deflector

2шт.

1/4" LOCKWASHER

2шт.

G49500

STUD

- upper, torque tube to transmission (1/2" x 2-3/16")

2шт.

O1169AB

STUD - torque tube to transmission case (1/2" x 4-7/8")

2шт.

O2709FH

X

ROLL PIN - timing pointer (1/8" x 1-3/8")

1шт.

V13836

PIN - yoke, clutch rod

1шт.

3/32" X 3/4" COTTER PIN

1шт.

V14110

BOLT - torque tube to engine (5/8" x 3-1/2")

2шт.

5/8" NF HEX. NUT AND LOCKWASHER

2шт.

VR2695

X

YOKE - clutch throwout rod

1шт.

5/16" NF HEX. JAM NUT

1шт.

VT41

COVER - belt pulley opening

1шт.

5/8" X 1-1/2" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

VT2083

GEAR - pulley drive

1шт.

VT2111

X

SNAP RING - pulley retaining

2шт.

VT2127

X

GASKET - cover, belt pulley opening

1шт.

VT3397

KEY - drive gear, belt pulley (Woodruff)

1шт.

VT3531

X

STUD - torque tube to engine (5/8" x 3")

2шт.

VT3546

X

STUD - torque tube to transmission case (1/2" x 2-1/2")

4шт.

VT5156

PLUG - expansion, hand clutch lever opening

1шт.

VT5179

X

DOWEL - torque tube to transmission case

2шт.

92EB

SPRING - clutch throwout rod

1шт.

3/8" PLAIN WASHER

2шт.
