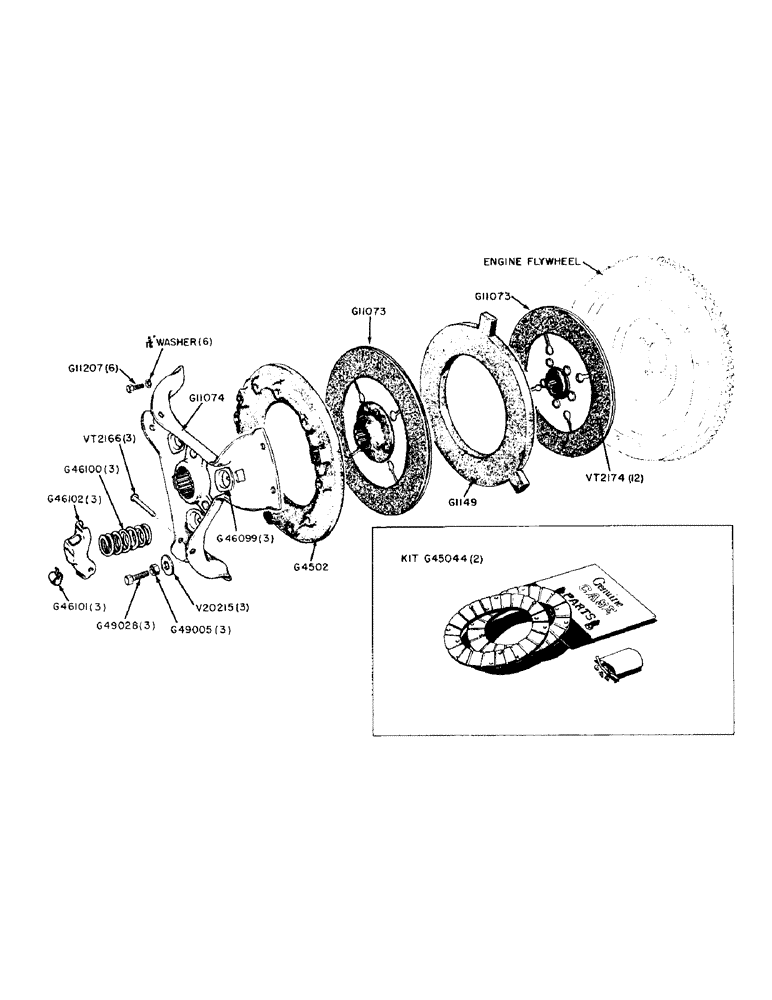

Запчасти Case IH 300-SERIES (089) - DOUBLE PLATE CLUTCH (06) - POWER TRAIN

G1149

RING - inner

1шт.

G4502

PLATE - pressure

1шт.

G11072

PLATE - pressure, complete, Includes: Ref. P/N G11074, G46099, G46100, G46101, G46102, G49005, G49028, V20215, VT2166

1шт.

G11073

PLATE

- driving, with facings

2шт.

G11074

BRACKET AND HUB ASSEMBLY

1шт.

Part of complete pressure plate P/N G11074

1шт.

G11207

BOLT

-, Serial Range: clutch-flywheel

6шт.

5/16" LOCKWASHER

6шт.

G45044

KIT

CLUTCH LININGS (Includes linings and 8-VT2174 rivets)

2шт.

G46099

CUP - lever spring

3шт.

Part of complete pressure plate P/N G11074

1шт.

G46100

SPRING - lever

3шт.

Part of complete pressure plate P/N G11074

1шт.

G46101

CLIP - clutch return

3шт.

Part of complete pressure plate P/N G11074

1шт.

G46102

LEVER - clutch

3шт.

Part of complete pressure plate P/N G11074

1шт.

G49005

NUT - jam, adjsuting screw

3шт.

Part of complete pressure plate P/N G11074

1шт.

G49028

SCREW - adjusting

3шт.

Part of complete pressure plate P/N G11074

1шт.

V20215

ADJUSTMENT ROD

WASHER - adjusting screw

3шт.

Part of complete pressure plate P/N G11074

1шт.

VT2166

PIN - pivot

3шт.

Part of complete pressure plate P/N G11074

1шт.

VT2174

RIVET - clutch lining

12шт.
