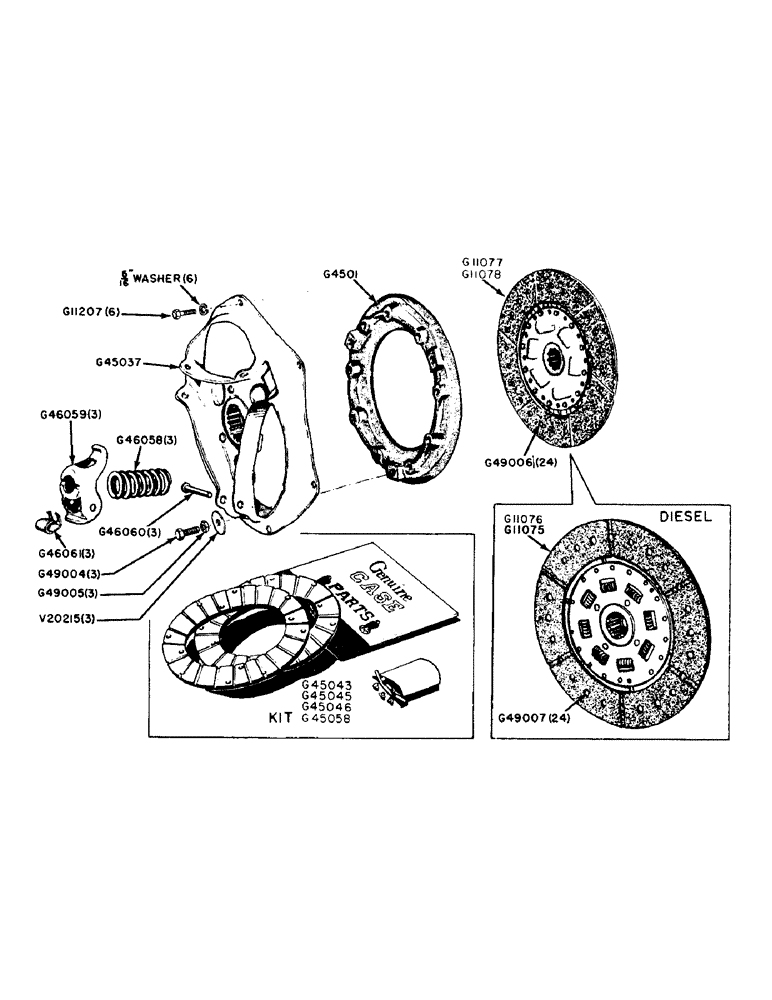

Запчасти Case IH 300-SERIES (088) - SINGLE PLATE CLUTCH (06) - POWER TRAIN

G4501

PLATE

- pressure

1шт.

Part of complete assembly pressure plate P/N G11002

1шт.

G11002

PLATE

- pressure, complete assembly, Includes: Ref. P/N G4501, G45037, G46058, G46059, G46060, G46061, G49004, G49005, G49006, V20215

1шт.

G11075

O-RING

PLATE - driving, with faccings (Diesel engine) See G11076

1шт.

G11076

LARGE PLATE

PLATE - driving, with facings (Heavy-duty for diesel engine)

1шт.

G11077

LARGE PLATE

PLATE - driving, with facings, spring cusion type (Spark ignition engine)

1шт.

G11078

X

PLATE - driving, with facings (Heavy duty for spark ignition engines)

1шт.

G11207

BOLT

- clutch to fly wheel

6шт.

5/16" LOCKWASHER

6шт.

G45037

X

BRACKET AND HUB ASSEMBLY

1шт.

Part of complete assembly pressure plate P/N G11002

1шт.

G45043

FACING

KIT - clutch linings for G11077 plate (Includes linings and 30 G49006 rivets)

1шт.

G45045

KIT - clutch linings for G11075 plate (Standard) (Includes linings and 30 - G49007 rivets)

1шт.

G45046

KIT - clutch linings for G11076 plate (Heavy duty) (Includes linings and 30 - G49007 rivets)

1шт.

G45058

FACING

KIT - clutch linings for G11076 plate (Includes linings and 30 - G49006 rivets)

1шт.

G46058

SPRING

- lever

3шт.

Part of complete assembly pressure plate P/N G11002

1шт.

G46059

LEVER

- clutch

3шт.

Part of complete assembly pressure plate P/N G11002

1шт.

G46060

PIN

- pivot

3шт.

Part of complete assembly pressure plate P/N G11002

1шт.

G46061

CLIP

- clutch return

3шт.

Part of complete assembly pressure plate P/N G11002

1шт.

G49004

SCREW

- adjusting

3шт.

Part of complete assembly pressure plate P/N G11002

1шт.

G49005

NUT - jam, adjusting screw

3шт.

Part of complete assembly pressure plate P/N G11002

1шт.

G49006

RIVET - clutch lining (Spark ignition engine)

24шт.

G49007

RIVET - clutch lining (Diesel engine)

24шт.

V20215

ADJUSTMENT ROD

WASHER - adjusting screw

3шт.

Part of complete assembly pressure plate P/N G11002

1шт.
