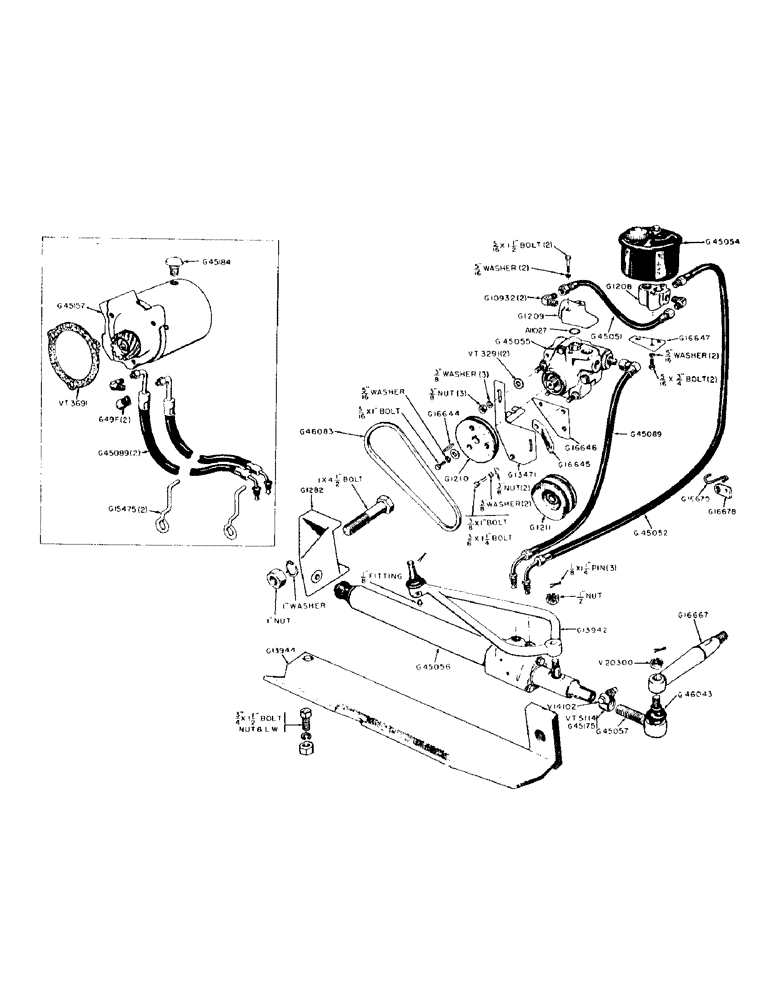

Запчасти Case IH 300-SERIES (144) - POWER STEERING ATTACHMENT WITH BELT DRIVEN PUMP, UTILITY TRACTORS (05) - STEERING

A8248

PLATE - name (Under steering wheel nut)

1шт.

A11027

GASKET

"O" RING -, Serial Range: pump-adapter

1шт.

G1208

ADAPTER - reservoir

1шт.

5/16" X 3/4" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G1209

ADAPTER - G45114, Serial Range: hose-pump

1шт.

5/16" X 1-1/2" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G1210

BULB

PULLEY - hydraulic pump

1шт.

5/16" X 1" NC HEX. HD. BOLT W/LOCKWASHER AND PLAIN WASHER

1шт.

G1211

PULLEY - double, generator

1шт.

G1282

BRACKET - mounting, Serial Range: cylinder-axle

1шт.

1" X 4-1/2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

G13471

SUPPORT - pump mounting plate

1шт.

3/8" X 1" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

3/8" X 1-1/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

G13942

DRAG LINK - center steering, Serial Range: arm-cylinder

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

1/2" NF SLOTTED HEX. NUT

1шт.

G13944

GUARD - cylinder and valve

1шт.

3/4" X 1-1/2" NC HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

G16644

KEY -, Serial Range: pulley-pump

1шт.

G16645

BRACE - radiator

1шт.

G16646

PLATE - mounting pump

1шт.

G16647

BRACKET - mounting, reservoir

1шт.

G16667

X

ARM - steering, tie rod end to LH spindle

1шт.

G16678

LUG - hose clip

1шт.

G16679

CLIP -, Serial Range: hose-block

1шт.

G45051

HOSE - reservoir to pump (13" long)

1шт.

G45052

HOSE - cylinder valve to reservoir (52" long)

1шт.

G45054

RESERVOIR

- hydraulic oil

1шт.

G45055

PUMP - hydraulic

1шт.

3/8" NF HEX. NUT AND LOCKWASHER

3шт.

G45056

CYLINDER

AND VALVE - hydraulic

1шт.

G45057

X

END - tie-rod, cylinder and valve to steering arm

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

G45089

HOSE - pump to cylinder valve (44" long)

1шт.

G45175

CLAMP

- tie rod (1-1/4" I.D.) (Includes 1/2" x 2-1/4" NF hex. hd. bolt w/hex. nut and lockwasher)

1шт.

G46043

COVER

- dust, tie rod end

1шт.

G46083

V-BELT,0.42" W x 7.50" L

Drive, Hydraulic Power Steering Pump 0.42" W x 7.50" L

1шт.

V14102

SEAL KIT

BOLT - VT5114 clamp

1шт.

5/16" NF HEX. NUT AND LOCKWASHER

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod end

1шт.

VT3291

X

WASHER - spacer, pump mounting (1" O.D. x 13/32" I.D. x 1/8")

3шт.

VT5114

CLAMP

- tie rod (7/8" I.D.) See G4175

1шт.

G15475

SUPPORT - hose to steering support, gear driven

2шт.

5/8" X 2" NC HEX. HD. BOLT W/LOCKWASHER, gear driven

2шт.

G45089

HOSE - pump to cylinder valve (44" long), gear driven

2шт.

649F - 3/8" O.D. X 1/4" P.T. ELBOW, gear driven

2шт.

G45157

X

PUMP AND RESERVOIR, gear driven

1шт.

3/8" X 3-1/4" NC HEX. HD. BOLT W/LOCKWASHER, gear driven

3шт.

G45184

BREATHER

- pump and reservoir, gear driven

1шт.

VT3691

X

GASKET - pump to block, gear driven

1шт.
