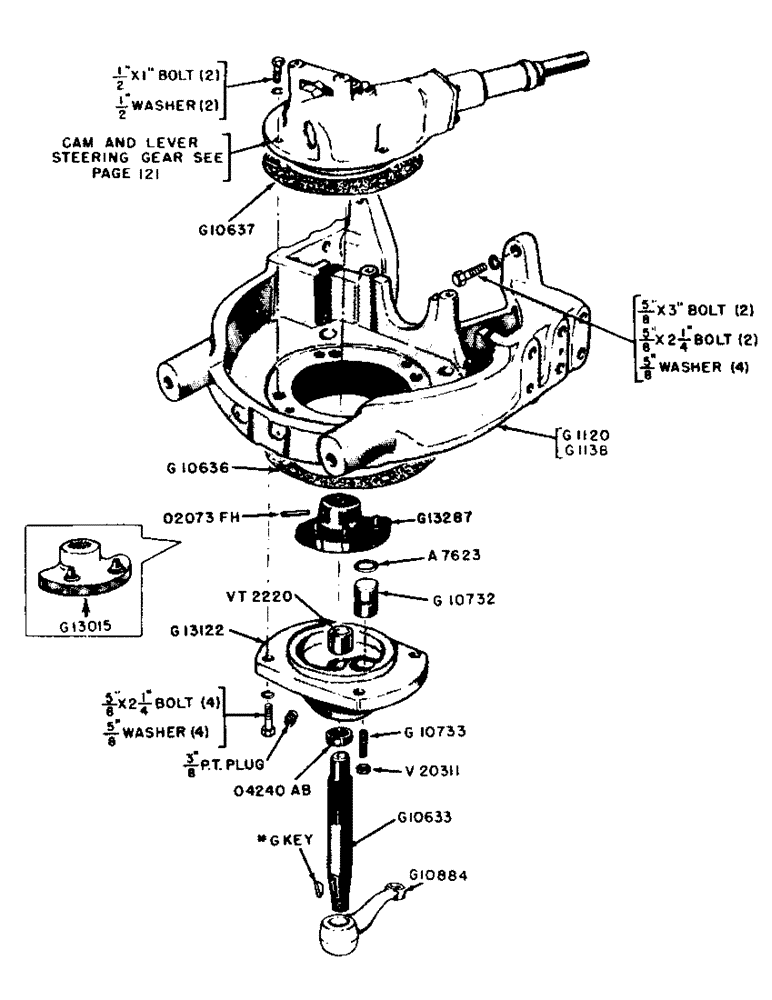

Запчасти Case IH 300-SERIES (135) - STEERING LEVER, SHAFT AND SUPPORT, 300-310 UTILITY (05) - STEERING

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug (1-1/4" dia.)

1шт.

G1119

SUPPORT (Use G13122)

1шт.

G1120

SUPPORT - front axle and radiator (Gasoline engine)

1шт.

5/8" X 2-1/4" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

5/8" X 3" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

G1138

SUPPORT - front axle and radiator (Diesel engine)

1шт.

5/8" X 2-1/4" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

5/8" X 3" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

G10633

SHAFT

- steering lever

1шт.

1" NF HEX. NUT AND LOCKWASHER

1шт.

G10636

X

GASKET - steering shaft support

1шт.

G10637

GASKET

- steering cam housing

1шт.

G10732

PLUG - adjusting, steering lever

1шт.

G10733

SCREW - plug adjusting

1шт.

G10884

ARM - center steering -024, 70 Duro, 1.114" ID x .070" Thk

1шт.

#G WOODRUFF KEY

1шт.

G13015

LEVER - steering (2 stud) before tractor #6055313

1шт.

G13122

SUPPORT - steering shaft (Includes VT2220 bushing)

1шт.

5/8" X 2-1/4" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

3/8" STD. SQ. HD. PIPE PLUG

1шт.

G13287

LEVER

- steering (3 stud) tractor #6055313 and afer

1шт.

O4240AB

X

OIL SEAL - steering lever shaft

1шт.

O2073FH

X

ROLL PIN - steering lever to shaft (1/4" x 2-1/4")

1шт.

V20311

X

NUT - lock, plug adjusting screw

1шт.

VT2220

X

BUSHING - steering shaft support

1шт.
