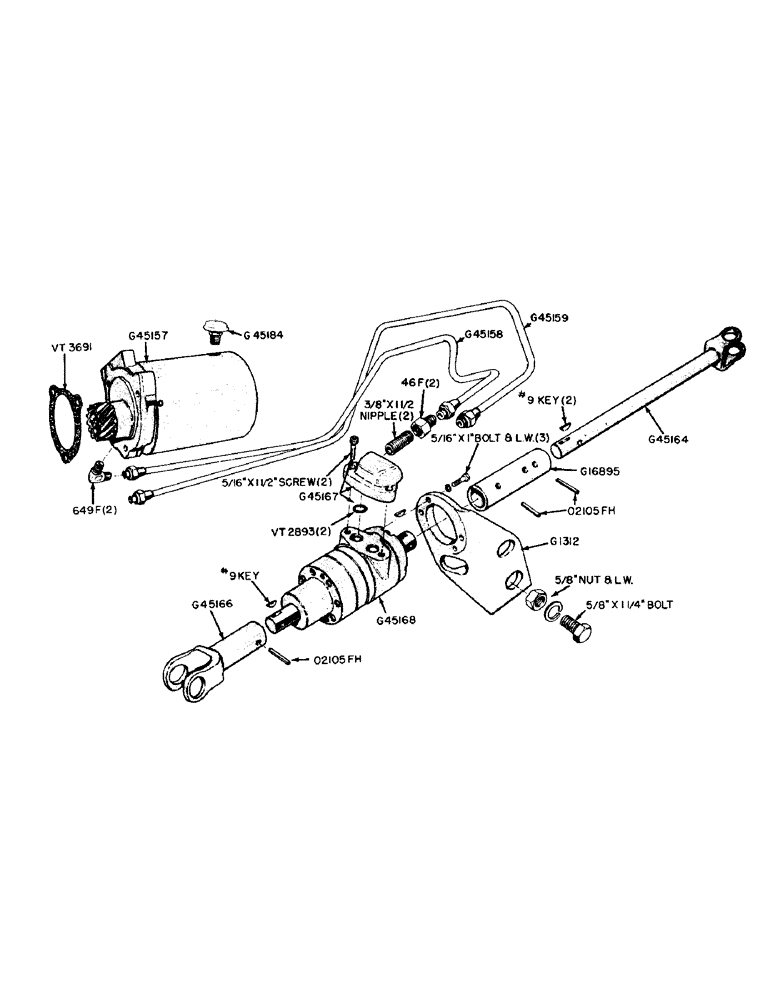

Запчасти Case IH 300-SERIES (134) - POWER STEERING ATTACHMENT, GENERAL PURPOSE TRACTORS (05) - STEERING

G1312

BRACKET - mounting, booster motor

1шт.

5/8" X 1-1/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

G4511

BLOCK (Use G45167)

1шт.

G10897

YOKE

- front universal joint

1шт.

G16895

SLEEVE - upper connecting, Serial Range: booster-shaft

1шт.

#9 WOODRUFF KEY

1шт.

G45157

X

PUMP AND RESERVOIR

1шт.

3/8" X 3-1/4" NC HEX. HD. BOLT W/LOCKWASHER

3шт.

G45158

TUBE - oil pressure, Serial Range: pump-booster

1шт.

46F - 3/8" O.D. X 3/8" P.T. COUPLING

1шт.

649F - 3/8" O.D. X 1/4" P.T. ELBOW

1шт.

3/8" X 1-1/2" PIPE NIPPLE

1шт.

G45159

TUBE - oil return, booster to pump 0.375" OD x 18.375" L

1шт.

46F - 3/8" O.D. X 3/8" P.T. COUPLING

1шт.

649F - 3/8" O.D. X 1/4" P.T. ELBOW

1шт.

3/8" X 1-1/2" PIPE NIPPLE

1шт.

G45164

SHAFT - steering

1шт.

G45166

SLEEVE - lower connecting, booster motor to lower universal (Includes yoke)

1шт.

G45167

PORT BLOCK KIT - tube to booster (Includes block, 2-VT2983 "O" rings and 2-5/16" x 1" NC socket hd. cap screws)

1шт.

G45168

X

BOOSTER MOTOR

1шт.

5/16" X 1" NC HEX. HD. BOLT W/LOCKWASHER

3шт.

#9 WOODRUFF KEY

3шт.

G45184

BREATHER

- pump and reservoir

1шт.

VT2983

X

"O" RING -, Serial Range: tube-block

2шт.

VT3397

KEY - front universal joint, Serial Range: yoke-shaft

1шт.

VT3691

X

GASKET -, Serial Range: pump-block

1шт.

VTA3127

X

KIT - universal joint center parts (Includes spider, 4 bearings, 4-V20406 washers and 4-V20953 snap rings)

1шт.

O2070FH

X

ROLL PIN - front universal joint yoke to shaft (1/4" x 1-1/2")

1шт.

O2105FH

X

ROLL PIN - connecting sleeve (5/16" x 1-1/4")

3шт.
