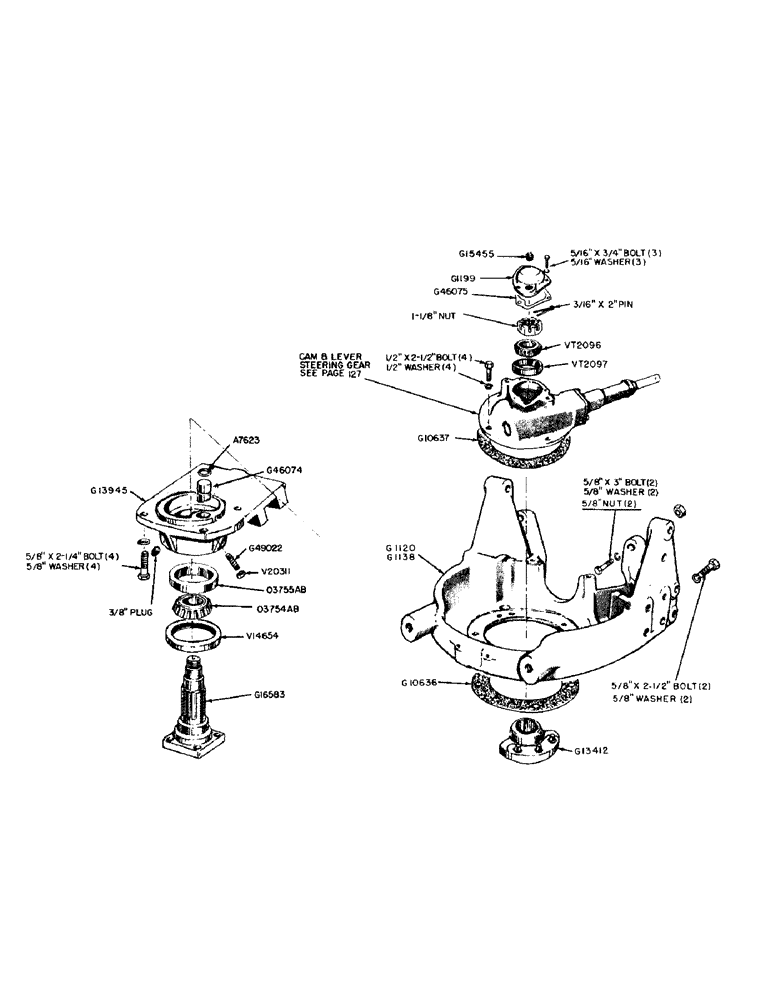

Запчасти Case IH 300-SERIES (128) - STEERING SPINDLE AND SUPPORT, 302-312 GENERAL PURPOSE (05) - STEERING

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug (1-1/4" dia.)

1шт.

G1120

SUPPORT - front axle and radiator (See G1138)

1шт.

5/8" X 2-1/2" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

5/8" X 3" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

G1138

SUPPORT - front axle and radiator (Diesel engine)

1шт.

G1227

SUPPORT (Use G13945)

1шт.

G10636

X

GASKET - steering spindle support

1шт.

G10637

GASKET

- steering, Serial Range: housing-support

1шт.

G13412

LEVER - front steering

1шт.

G13945

SUPPORT - steering spindle, includes O3755AB bearing cup

1шт.

5/8" X 2-1/4" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

3/8" STD. SQ. HD. PIPE PLUG

1шт.

G16583

SHAFT - steering spindle

1шт.

1-1/8" NF SLOTTED HEX. NUT

1шт.

3/16" X 2" COTTER PIN

1шт.

G46074

PLUG - adjusting, steering lever

1шт.

G49022

SCREW - set, adjusting plug

1шт.

O3754AB

X

CONE - lower bearing, steering spindle (Timken #399A-4C)

1шт.

O3755AB

X

CUP - lower bearing, steering spindle (timken #394A-4C)

1шт.

V14654

X

OIL SEAL - steering spindle shaft

1шт.

V20311

X

NUT - set screw, adjusting plug (1/2" NF)

1шт.

VT2096

X

CONE - upper bearing, steering spindle (Timken #14137A)

1шт.

VT2097

X

CUP - upper bearing, steering spindle (Timken #14276)

1шт.
