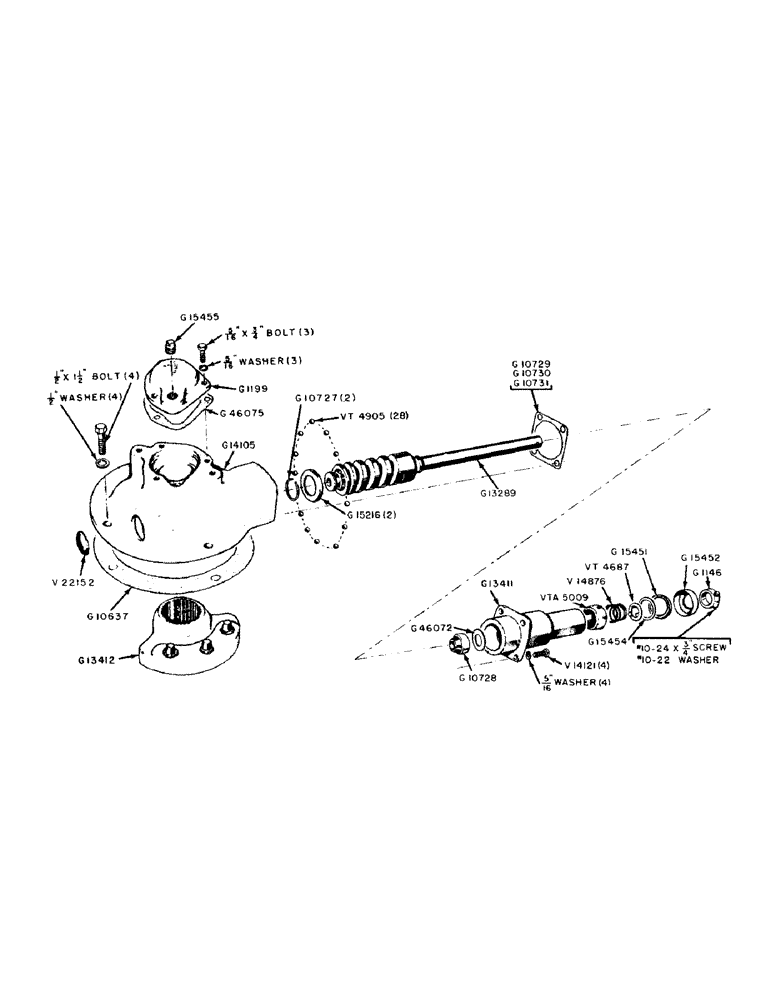

Запчасти Case IH 300-SERIES (127) - STEERING GEAR CAM AND LEVER HOUSING, 302-312 GENERAL PURPOSE (05) - STEERING

G1146

CLAMP - retaining, steering shaft

1шт.

#10-24 X 3/4" FILISTER HD. MACH. SCREW W/LOCKWASHER

1шт.

G1186

HOUSING - steering (Use G14105)

1шт.

G1199

CAP - steering housing

1шт.

5/16" X 3/4" NC HEX. HD. BOLT W/LOCKWASHER

3шт.

G10637

GASKET

- steering housing

1шт.

G10727

RING

- retaining, bearing cup

2шт.

G10728

SEAL

OIL SEAL - steering cam shaft

1шт.

G10729

SHIM,.003" Thk

Housing cover .003" Thk

1шт.

G10730

SHIM,.010" Thk

Housing cover .010" Thk

1шт.

G13731

SHIM - housing (.002")

1шт.

G13289

STEERING CAM AND SHAFT

1шт.

G13411

COVER - housing, steering shaft, includes G10728 oil seal and G46072 gasket

1шт.

G13412

LEVER - front steering

1шт.

G14105

HOUSING - steering, includes VT2097 bearing cup

1шт.

1/2" X 1-1/2" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

G15216

CUP ASSY.

CUP - bearing, steering cam

2шт.

G15451

FELT

SEAL - felt, outboard bearing

1шт.

G15452

CUP ASSY.

CUP - felt seal

1шт.

G15454

WASHER

- protective, G15451 felt washer

1шт.

G15455

PLUG - vented, G1199 cap (3/8" PT)

1шт.

G46072

GASKET

GASKET - for G10728 oil seal

1шт.

G46075

-, Serial Range: cap-housing

1шт.

V14121

SPRING

BOLT - housing cover (5/16" x 3/4" NC)

4шт.

5/16" LOCKWASHER

4шт.

V14876

ARM

SPRING - bearing, steering shaft

1шт.

V22152

CAP

PLUG - expansion, steering housing (1-1/2" dia.)

1шт.

VT4687

WASHER

SEAT - spring, steering shaft bearing

1шт.

VT4905

X

BALL - cam bearing (5/16")

28шт.

VTA5009

X

BEARING ASSEMBLY - steering shaft

1шт.
