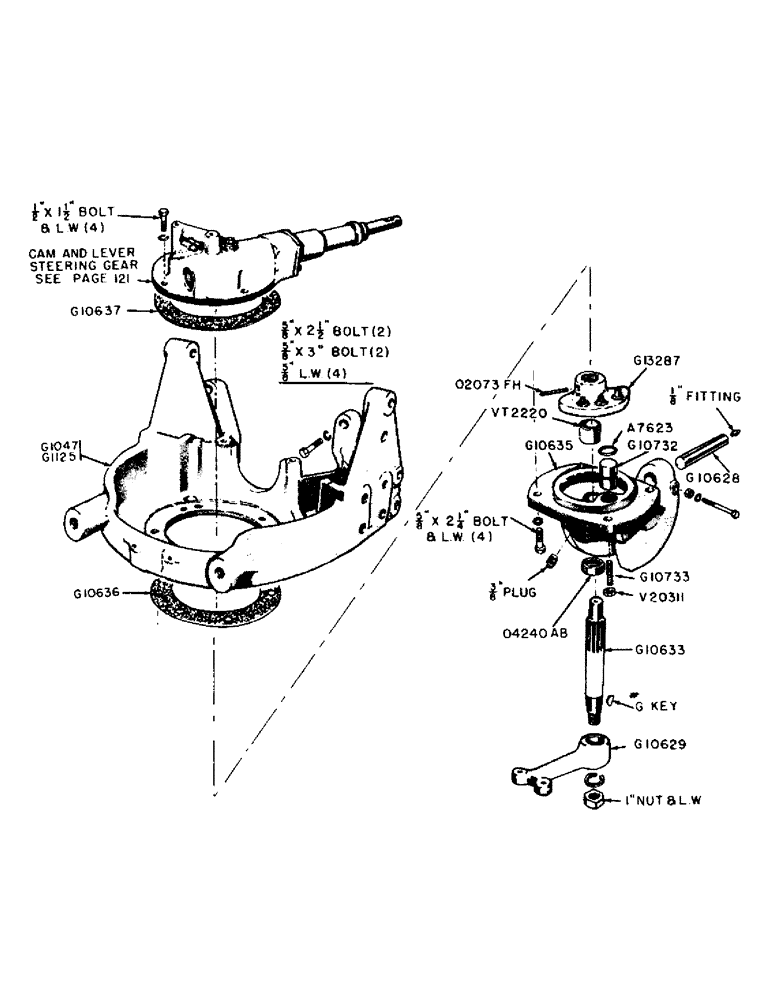

Запчасти Case IH 300-SERIES (122) - STEERING LEVER, SHAFT AND SUPPORT, 301-311 GENERAL PURPOSE (05) - STEERING

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug seal (1-1/4" dia.)

1шт.

G1047

SUPPORT - front axle and radiator

1шт.

5/8" X 2-1/2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

5/8" X 3" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

G1048

SUPPORT (Use G10635)

1шт.

G1125

SUPPORT - front axle and radiator (Diesel engine)

1шт.

5/8" X 2-1/2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

5/8" X 3" NF HEX. HD. BOLT W/HEX NUT AND LOCKWASHER

2шт.

G10628

PIN - pivot, center tube

1шт.

1/8" 45 degree fitting (Lincoln #5200)

1шт.

G10629

ARM - center steering

1шт.

#G WOODRUFF KEY

1шт.

G10633

SHAFT

- steering lever

1шт.

1" NF HEX. NUT AND LOCKWASHER

1шт.

G10635

SUPPORT

- axle pivot, includes VT2220 bushing

1шт.

3/8" STD. SQ. HD. PIPE PLUG

1шт.

5/8 X 2-1/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

4шт.

G10636

X

GASKET - pivot support to front end support

1шт.

G10637

GASKET

- steering housing to front end support

1шт.

G10732

PLUG - adjusting, steering lever

1шт.

G10733

SCREW - set, adjusting plug

1шт.

G13015

LEVER - steering (2 stud) before tractor #6055313

1шт.

G13287

LEVER

- steering (3 stud) tractor #6055313 and after

1шт.

O4240AB

X

OIL SEAL - upper, steering spindle

1шт.

O2073FH

X

ROLL PIN - steering lever to steering shaft (1/4" x 2-1/4")

1шт.

V20311

X

NUT - lock, adjusting screw plug set screw

1шт.

VT2220

X

BUSHING - pivot support

1шт.
