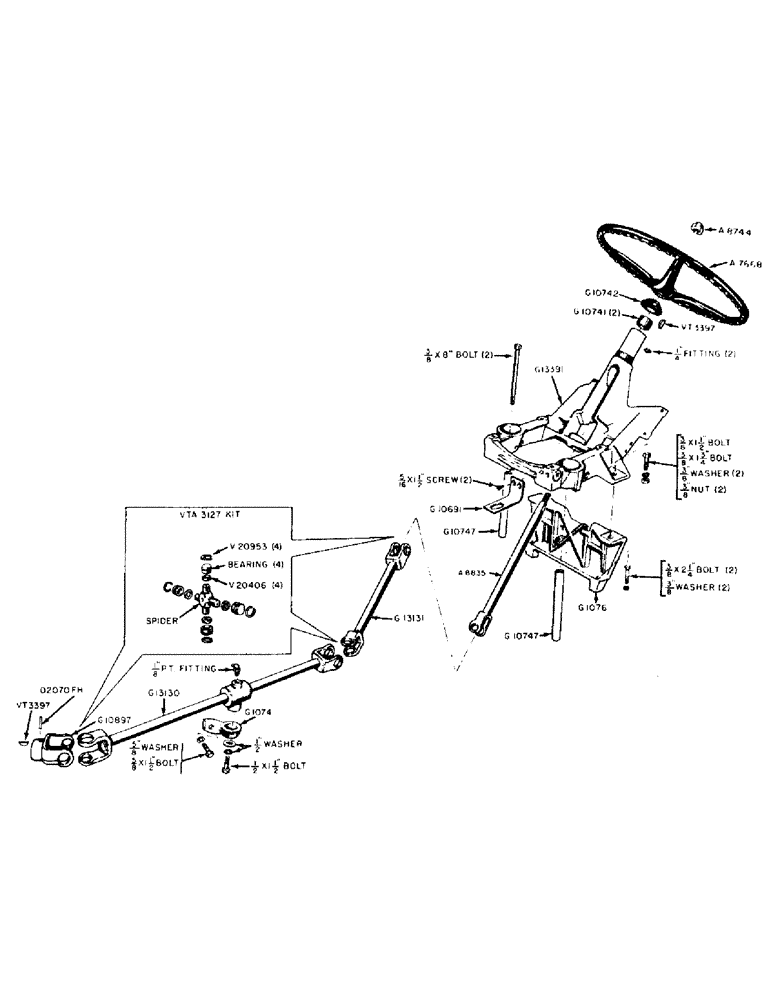

Запчасти Case IH 300-SERIES (120) - STEERING WHEEL, SHAFTS AND UNIVERSALS (05) - STEERING

A7668

WHEEL

- steering (17-3/8" O.D.)

1шт.

A8744

NUT

- steering, Serial Range: wheel-shaft

1шт.

A8835

SHAFT - upper steering, includes yoke

1шт.

G1074

SUPPORT - bearing, lower shaft

1шт.

5/8" X 1-1/2" HEX. HD. BOLT, NC

1шт.

G1075

SUPPORT (Use G13391)

1шт.

G1076

BRACKET - rear mounting, steering support

1шт.

3/8" X 2-1/4" HEX. HD. BOLT, NC w/lockwasher

2шт.

G1184

SUPPORT (Use G13391)

1шт.

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- steering shaft (See G13391)

2шт.

G10742

SEAL

DUST SEAL - upper steering shaft

1шт.

G10747

PIPE - front support 0.75" OD x 7.375" L

2шт.

3/8" X 8" HEX. HD. BOLT, NC

2шт.

G10897

YOKE

- front universal joint

1шт.

G13130

SHAFT - lower, includes yokes and bearing (See Page 134 for power steering)

1шт.

1/8" 45 degree fitting (Lincoln #5200)

1шт.

1/2" X 1-1/2" HEX. HD. BOLT, NC w/lockwasher and plain washer

1шт.

G13131

SHAFT - intermediate steering, includes yokes

1шт.

G13391

SUPPORT - steering shaft, includes 2 - G10741 bushings

1шт.

1/4" STR. FITTING (Lincoln #5013)

2шт.

3/8" X 1-1/2" HEX. HD. BOLT, NF w/hex nut and lockwasher

1шт.

3/8" X 1-3/4" HEX. HD. BOLT, NF w/hex. nut and lockwasher

1шт.

VT642

BEARING (Use G13130)

1шт.

O2070FH

X

ROLL PIN - front universal yoke (1/4" x 1-1/2")

1шт.

V20406

BUSHING

WASHER - cork (See VTA3127)

12шт.

V20953

ROD

SNAP RING - (See VTA3127)

12шт.

VT3397

KEY - wheel to shaft and G10897 to shaft (Woodruff)

2шт.

VTA3127

X

UNIVERSAL JOINT SPIDER AND BEARING KIT (Includes 1 spider, 4 bearings, 4 - V20406 washers and 4 - V20953 snap rings)

3шт.
