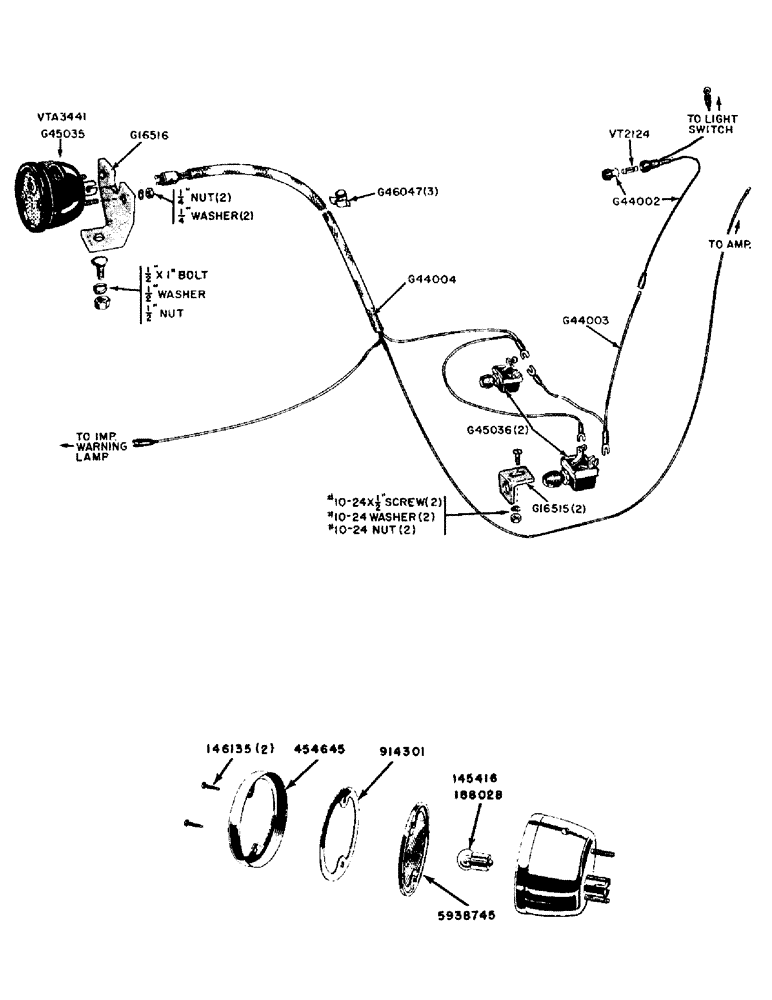

Запчасти Case IH 300-SERIES (084) - STOP LIGHT ATTACHMENT (04) - ELECTRICAL SYSTEMS

G16515

BRACKET - mounting, stop light switch

2шт.

#10-24 X 1/2" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

4шт.

G16516

BRACKET - mounting, stop light

1шт.

1/2" X 1" CARR. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

G44002

CABLE - ammeter to stop light cable, includes VT2124 fuse

1шт.

G44003

CABLE - fuse to stop light switches

1шт.

G44004

CABLE - stop light to stop light switches and main light switch cable

1шт.

G45035

LIGHT - stop and tail, combination (12 volt)

1шт.

1/4" NC HEX. NUT AND LOCKWASHER

2шт.

G45036

SWITCH - stop light

2шт.

G46047

CLIP -, Serial Range: cable-fender

3шт.

VT2124

X

FUSE (#3 - 20 amp.)

1шт.

VTA3441

LIGHT - stop and tail, combination (6 volt)

1шт.

1/4" NC HEX. NUT AND LOCKWASHER

2шт.

145416

BULB - 3 C.D., double filament, 6 volt (Man. no. 1154), parts for VTA3441 and 45035 stop lights

1шт.

146135

SCREW - door, parts for VTA3441 and 45035 stop lights

2шт.

T34857

BULB,C6, #1157, 12.8V

- 3 C.D., double filament, 12-16 volt (Man. no. 1034), parts for VTA3441 and 45035 stop lights

1шт.

914301

GASKET - lens, parts for VTA3441 and 45035 stop lights

1шт.

454645

LAMP,C6, #1034, 12.8V

DOOR, parts for VTA3441 and 45035 stop lights

1шт.

5938745

LENS, parts for VTA3441 and 45035 stop lights

1шт.
