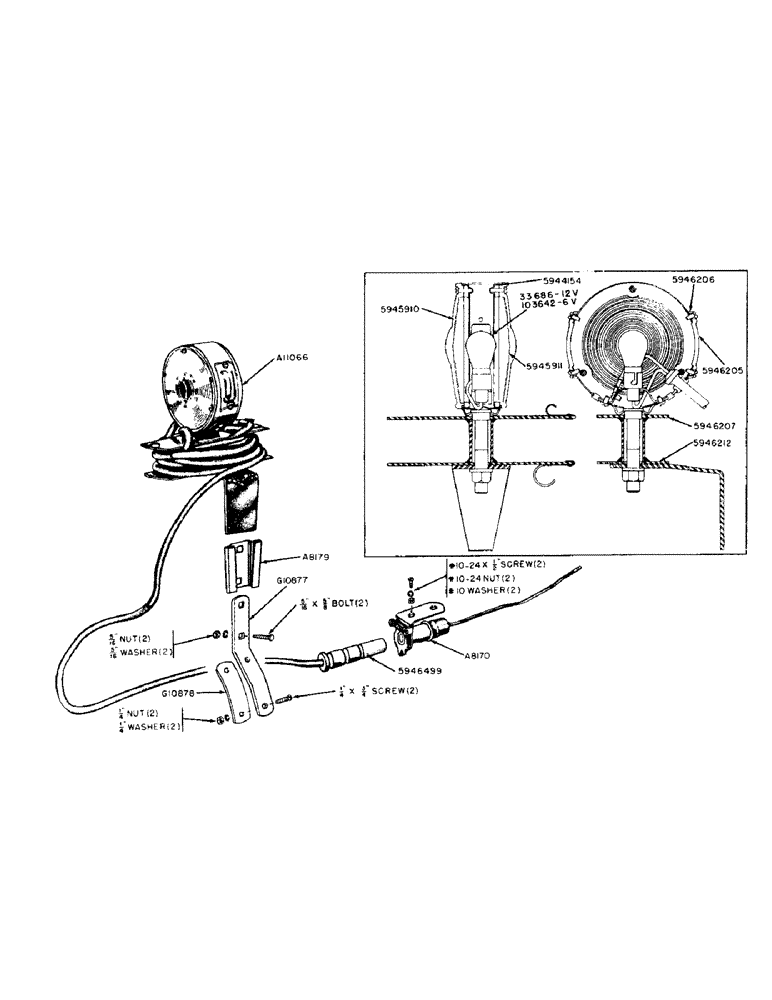

Запчасти Case IH 300-SERIES (082) - WARNING LAMP, EXTRA, PARTS FOR WARNING LAMPS (04) - ELECTRICAL SYSTEMS

A8170

SOCKET

- electrical outlet

1шт.

#10 - 24 X 1/2" RD. HD. MACH. SCREW UNC W/HEX. NUT AND LOCKWASHER

2шт.

A8179

SOCKET

- warning lamp bracket

1шт.

5/16" X 5/8" CARR. BOLT UNC W/HEX. NUT AND LOCKWASHER

2шт.

A11066M

WARNING LAMP ATTACHMENT (Mchry. item)

1шт.

G10877

SUPPORT - warning lamp

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G10878

REINFORCEMENT - socket support

1шт.

33686

BULB

- 21 CP, 12 volt (Mfrs. no. 1141) (Churubusco no.), parts for warning lamps

1шт.

103642

GLAND,#1129, Type C-6, 6V

BULB - 21 CP, 6 volt (Mfrs. no. 1129), parts for warning lamps

1шт.

5938870

CLIP - loom (Use with 12 volt lamp), parts for warning lamps

1шт.

5944154

GASKET - lens, parts for warning lamps

2шт.

5945910

LENS - amber, parts for warning lamps

1шт.

#6-32 X 1/2" RD. HD. SLOTTED SCREW, parts for warning lamps

3шт.

5945911

LENS - red, parts for warning lamps

1шт.

#6-32 X 1/2" RD. HD. SLOTTED SCREW, parts for warning lamps

3шт.

5946205

LENS - outlook, parts for warning lamps

2шт.

#6-20 x 5/16" pan hd. screw, parts for warning lamps

4шт.

5946206

GASKET - outlook lens, parts for warning lamps

2шт.

5946207

SPOOL ASSEMBLY, parts for warning lamps

1шт.

7/16" HEX. NUT NC AND LOCKWASHER, parts for warning lamps

1шт.

5946212

BRACKET - mounting, parts for warning lamps

1шт.

5946499

PLUG ASSEMBLY, parts for warning lamps

1шт.
