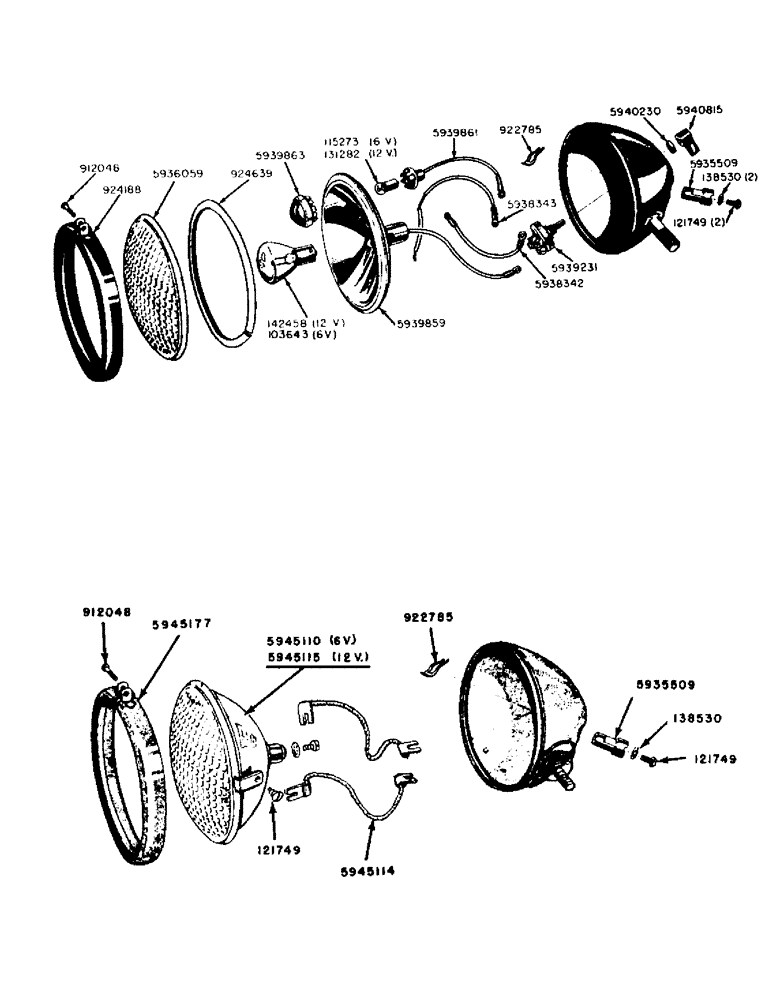

Запчасти Case IH 300-SERIES (079) - O8810AB AND O9897AB FLOOD AND TAIL LAMPS, G13169 AND G13170 HEADLAMPS ORCHARD (04) - ELECTRICAL SYSTEMS

NLS

NO LONGER SERVICED

BULB - light, large (No. 1133, 32 CP single contact, 6-8 volt)

1шт.

115273

BULB - light, small (No. 51, ICP single contact, 6-8 volt)

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal

2шт.

131282

BULB,C2V, #53, 14.4V

- light, small (No. 53, ICP single contact, 12-16 volt)

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal screw Int Tooth, #8

2шт.

A41264

BULB,#1156, 12V

- light, large (No. 1143, 32 CP single contact, 12-16 volt)

1шт.

912048

SCREW - molding

1шт.

922785

SUPPORT

SPRING - terminal

1шт.

924188

MOLDING ASSEMBLY

1шт.

924639

GASKET - reflector seal

1шт.

5935509

TERMINAL POST COMPLETE

1шт.

5936059

LENS

1шт.

5938342

WIRE ASSEMBLY -, Serial Range: terminal-switch

1шт.

5938343

WIRE ASSEMBLY - large bulb switch

1шт.

5939231

SWITCH ASSEMBLY (Includes knob assembly)

1шт.

5939859

REFLECTOR ASSEMBLY

1шт.

5939861

SOCKET AND WIRE ASSEMBLY

1шт.

5939863

JEWEL ASSEMBLY

1шт.

5940230

NUT - retaining, for switch

1шт.

5940815

SWITCH KNOB ASSEMBLY W/SCREW

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal, G13169 and G13170 head lamps (orchard)

2шт.

143189

WHEEL ASSY

SCREW - terminal, G13169 and G13170 head lamps (orchard)

1шт.

912048

SCREW - moulding, G13169 and G13170 head lamps (orchard)

1шт.

922785

SUPPORT

SPRING - terminal, G13169 and G13170 head lamps (orchard)

1шт.

5935509

PLATE - terminal, G13169 and G13170 head lamps (orchard)

1шт.

5945110

SEALED BEAM ASSEMBLY (6 volt), G13169 and G13170 head lamps (orchard)

1шт.

5945114

WIRING ASSEMBLY, G13169 and G13170 head lamps (orchard)

1шт.

5945115

SEALED BEAM ASSEMBLY (12 volt), G13169 and G13170 head lamps (orchard)

1шт.

5945177

MOULDING ASSEMBLY, G13169 and G13170 head lamps (orchard)

1шт.
