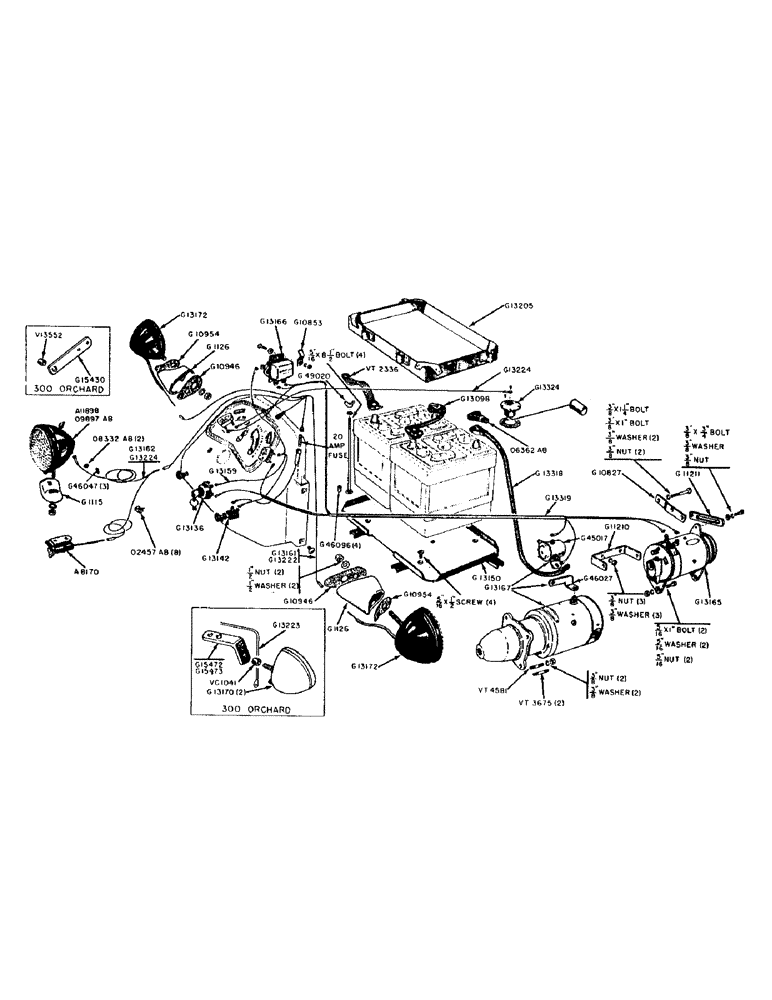

Запчасти Case IH 300-SERIES (074) - ELECTRICAL SYSTEM, 12 VOLT, BATTERY, GENERATOR, STARTING MOTOR, ELECTRIC LIGHTING (04) - ELECTRICAL SYSTEMS

BATTERY - storage, 6 volt (Exide #151) Not furnished by J.I. Case Company

2шт.

G13098

CABLE

-, Serial Range: battery-battery

1шт.

G13150

PAN - battery mounting

1шт.

5/16" X 1/2" FLAT HD. MACH. SCREW (Spin-lock)

4шт.

G13205

FRAME - battery hold down

1шт.

5/16" X 8-1/2" CARR. BOLT UNC

4шт.

G13318

CABLE -, Serial Range: battery-solenoid

1шт.

G46096

RETAINER

BUSHING - rubber, battery pan bolt

4шт.

G49020

NUT

- wing, battery frame bolts

4шт.

5/16" plain washer

4шт.

O6362AB

X

COVER - rubber, battery terminal

1шт.

VT2336

X

STRAP -, Serial Range: battery-ground

1шт.

G10827

STRAP - generator belt adjusting

1шт.

3/8" X 1-1/4" HEX. HD. BOLT UNC W/HEX. NUT AND LOCKWASHER, generator - 12 volt

1шт.

3/8" X 1" HEX. HD. BOLT UNC W/LOCKWASHER AND PLAIN WASHER, generator - 12 volt

1шт.

G11210

BRACKET - generator mounting, 12 volt

1шт.

3/8" X 3/4" HEX. NUT UNC W/LOCKWASHER, generator - 12 volt

2шт.

G11211

BRACKET - pivot, generator adjusting strap, 12 volt

1шт.

3/8" X 3/4" HEX. HD. BOLT UNF W/HEX. NUT AND LOCKWASHER, generator - 12 volt

2шт.

G11233

BELT, 0.55" W x 16.44" L, Fan and Generator Drive, 12 volt 0.55" W x 16.44" L

1шт.

G13165

GENERATOR (12 volt) (Auto-Lite #GHH-6002A)

1шт.

5/16" X 1" HEX. HD. BOLT, N.F. (Cadmium plated), generator - 12 volt

2шт.

5/16" HEX. NUT AND LOCKWASHER, generator - 12 volt

2шт.

G13166

X

REGULATOR - generator voltage (12 volt) (Auto-Lite #VRT-4105)

1шт.

G13136

IGNITION SWITCH

SWITCH - starting, w/key, motor - 12 volt

1шт.

G13167

MOTOR - starting, w/solenoid (Auto-Lite #ML-4352), 12 volt

1шт.

G13319

CABLE - starting switch to solenoid, generator, ammeter and voltage regulator, starting motor - 12 volt

1шт.

G45017

X

SOLENOID - on starting motor (Auto-Lite #SSW-4001), 12 volt

1шт.

G46027

BAR - connecting, solenoid to starting motor (Auto-Lite #MBR-40L), 12 volt

1шт.

VT3675

X

STUD - starting motor to engine (3/8" x 1-1/2"), 12 volt

2шт.

3/8" HEX. NUT, NC w/lockwasher, starting motor - 12 volt

2шт.

VT4581

STUD - starting motor to engine (3/8" x 2-1/2"), 12 volt

1шт.

3/8" HEX. NUT, NC w/lockwasher, starting motor - 12 volt

1шт.

A8170

SOCKET

- electric outlet, electric lighting - 12 volt

1шт.

#10-24 X 1/2" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER, electric lighting - 12 volt

2шт.

A11898

X

LIGHT - combination flood and tail (See O9897AB. Refer to listing of parts for difference), electric lighting - 12 volt

1шт.

G1115

BRACKET

- mounting, flood and tail light, electric lighting - 12 volt

1шт.

3/8" X 1" CARR. BOLT W/HEX. NUT AND LOCKWASHER (Cadmium plated), electric lighting - 12 volt

1шт.

G1126

BRACKET - mounting, head lamp, electric lighting - 12 volt

2шт.

G10853

CLIP - fuse holder, main light cable, electric lighting - 12 volt

1шт.

G10946

GASKET - head lamp bracket to side panel, electric lighting - 12 volt

2шт.

G10954

GASKET - head lamp to bracket, electric lighting - 12 volt

2шт.

G13142

IGNITION SWITCH

SWITCH - light, electric lighting - 12 volt

1шт.

G13161

CABLE - light switch to lights, electric lighting - 12 volt

1шт.

G13162

CABLE - tail light and outlet socket, electric lighting - 12 volt

1шт.

G13170

LAMP - head, RH or LH (Orchard), electric lighting - 12 volt

2шт.

1/2" HEX. JAM NUT, NC and lockwasher (Cadmium plated), electric lighting - 12 volt

2шт.

G13172

HEADLIGHT

LAMP - head, RH or LH, electric lighting - 12 volt

2шт.

1/2" HEX. JAM NUT, NC (Cadmium plated), electric lighting - 12 volt

2шт.

1/2" LOCKWASHER, Shakeproof (ET #1124), electric lighting - 12 volt

2шт.

G13222

CABLE - head lamp (Orchard), electric lighting - 12 volt

1шт.

G13223

EXTENSION - head lamp cable (Orchard), electric lighting - 12 volt

1шт.

G13224

CABLE - tail light and outlet socket (Orchard), electric lighting - 12 volt

1шт.

G13324

SENDER UNIT

SENDER - fuel gage, electric lighting - 12 volt

1шт.

G15430

BRACKET - mounting, tail light (Orchard), electric lighting - 12 volt

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW (Philips hd.), electric lighting - 12 volt

2шт.

G15472

BRACKET - mounting, RH head lamp (Orchard), electric lighting - 12 volt

1шт.

G15473

BRACKET - mounting, LH head lamp (Orchard), electric lighting - 12 volt

1шт.

G46047

CLIP - tail light cable to fender, electric lighting - 12 volt

3шт.

O2457AB

CLIP - electrical cable, electric lighting - 12 volt

8шт.

O8332AB

X

GROMMET - rubber, on LH fender for light cable, electric lighting - 12 volt

2шт.

O9897AB

X

LIGHT - combination flood and tail, electric lighting - 12 volt

1шт.

1/2" HEX. NUT, NC and lockwasher (Cadmium plated), electric lighting - 12 volt

1шт.

V13552

X

BUSHING - tail light mounting (Orchard), electric lighting - 12 volt

1шт.

VC1041

BUSHING - head lamp mounting (Orchard), electric lighting - 12 volt

2шт.
