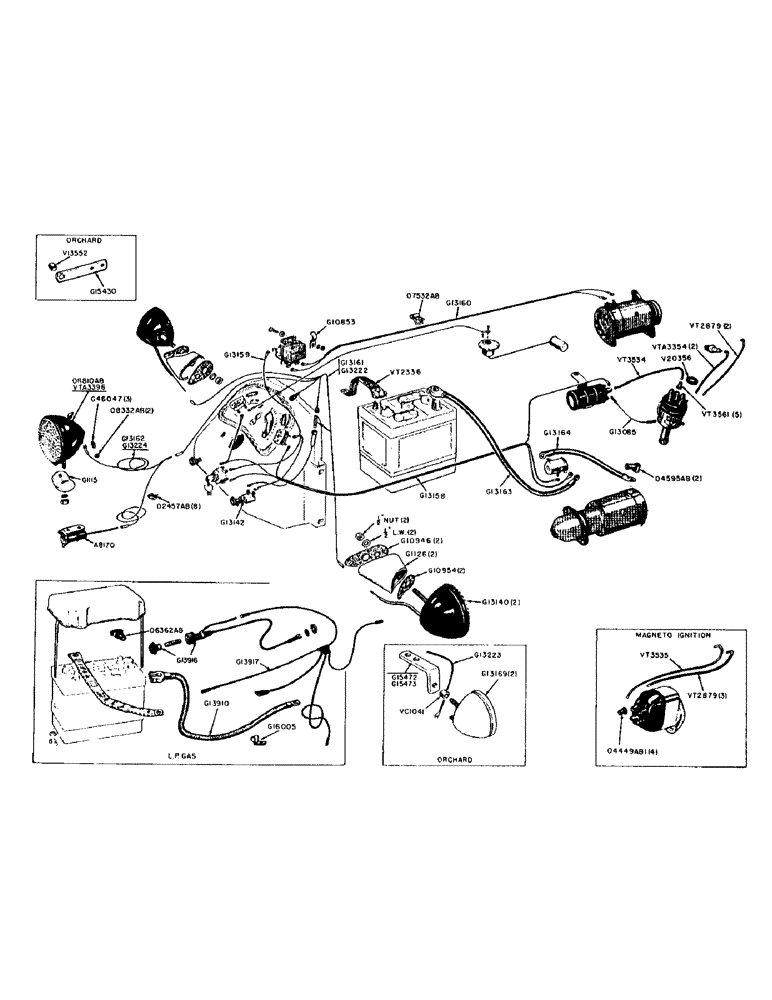

Запчасти Case IH 300-SERIES (068) - ELECTRIC LIGHTS AND CABLES - 6 VOLT, ELETRIC LIGHTING, CABLES AND ACCESSORIES (04) - ELECTRICAL SYSTEMS

A8170

SOCKET

- electrical outlet

1шт.

#10 - 24 X 1/2" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G1115

BRACKET

- flood and tail light

1шт.

3/8" X 1" CARRIAGE BOLT W/HEX. NUT AND LOCKWASHER

1шт.

G1126

BRACKET - head lamp

2шт.

G10853

CLIP - fuse holder, main light cable

1шт.

G10946

GASKET - head lamp bracket to side panel

2шт.

G10954

GASKET - head, Serial Range: lamp-bracket

2шт.

G13140

HEADLIGHT

LAMP - head, R.H. and L.H.

2шт.

1/2" HEX. JAM NUT, UNC (Cadmium plated)

2шт.

1/2" LOCKWASHER, Shakeproof (ET#1124)

2шт.

G13142

IGNITION SWITCH

SWITCH - light

1шт.

G13159

CABLE - ammeter to voltage regulator, light switch and starting switch

1шт.

G13161

CABLE - light, Serial Range: switch-lights

1шт.

G13162

CABLE - tail light and outlet socket

1шт.

G13169

ASSEMBLY

LAMP - head R.H. and L.H. (Orchard)

2шт.

1/2" HEX. JAM NUT N.C. (Cadmium plated) w/lockwasher

2шт.

G13222

CABLE - head lamp (Orchard)

1шт.

G13223

EXTENSION - head lamp cable (Orchard)

1шт.

G13224

CABLE - tail light and outlet socket (Orchard)

1шт.

G13916

CABLE - switch to light cable w/fuse holder (L.P.G. engine)

1шт.

G13917

CABLE - fuse to lights (L.P.G. engine)

1шт.

G15430

BRACKET - mounting, tail light (Orchard)

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW, N.C. (Philips hd.)

2шт.

G15472

BRACKET - mounting, R.H. head lamp (Orchard)

1шт.

G15473

BRACKET - mounting, L.H. head lamp (Orchard)

1шт.

G46047

CLIP - tail light, Serial Range: cable-fender

3шт.

O2457AB

CLIP - cable

8шт.

O8332AB

X

GROMMET - rubber, on L.H. fender

2шт.

O8810AB

LAMP

LIGHT - combination flood and tail

1шт.

1/2" HEX. NUT, UNC (Cadmium plated)

1шт.

1/2" LOCKWASHER (Cadmium plated)

1шт.

V13552

X

BUSHING - mounting, tail light (Orchard)

1шт.

VC1041

BUSHING - mounting, head lamp (Orchard)

2шт.

VTA3396

X

LIGHT - combination flood and tail (Orchard)

1шт.

G13085

ELECTRICAL WIRE

CABLE - distributor to coil (12" long), electric and accessories - 6 volt

1шт.

G13158

CABLE - ignition switch to solenoid, coil, ammeter and fuel gage, electric cables and accessories - 6 volt

1шт.

G13160

CABLE - generator to voltage regulator, electric and accessories - 6 volt

1шт.

G13163

CABLE - battery to solenoid (Gasoline engine), electric and accessories - 6 volt

1шт.

G13164

CABLE - solenoid to starter (9" long), electric and accessories - 6 volt

1шт.

G13910

CABLE - battery to solenoid, L.P.G. engine (65" long), electric and accessories - 6 volt

1шт.

G16005

CLIP - battery cable (L.P.G.), electric and accessories - 6 volt

3шт.

O4449AB1

X

NIPPLE - rubber, spark plug wires to magneto, electric cables and accessories - 6 volt

4шт.

A21753

CAP

NIPPLE - starter and solenoid terminals, electric cables and accessories - 6 volt

3шт.

O6362AB

X

COVER - rubber, battery terminal (L.P.G.), electric cables and accessories - 6 volt

1шт.

O7532AB

CLIP - G13160 cable to engine, electric and accessories - 6 volt

1шт.

VT2336

X

STRAP - battery to ground, electric cables and accessories - 6 volt

1шт.

VT2879

X

WIRE - #1 and #4 spark plugs (Distributor ignition) (10-1/2" long), electric cables and accessories - 6 volt

2шт.

VT2879

X

WIRE - #2, #3 and #4 spark plugs (Magneto ignition) (10-1/2" long), electric cables and accessories - 6 volt

3шт.

VT3534

X

CABLE - coil to distributor (11" long), electric and accessories - 6 volt

1шт.

VT3535

X

WIRE - #1 spark plug (Magneto ignition) (14" long), electric cables and accessories - 6 volt

1шт.

VT3561

X

NIPPLE - rubber, spark plug wire and coil cable, electric and accessories - 6 volt

5шт.

VTA3354

X

WIRE - #2 AND #3 spark plugs (Distributor ignition) (8-1/2" long), electric cables and accessories - 6 volt

2шт.

V20356

NUT

WASHER - rubber, spark plug wires, electric cables and accessories - 6 volt

1шт.
