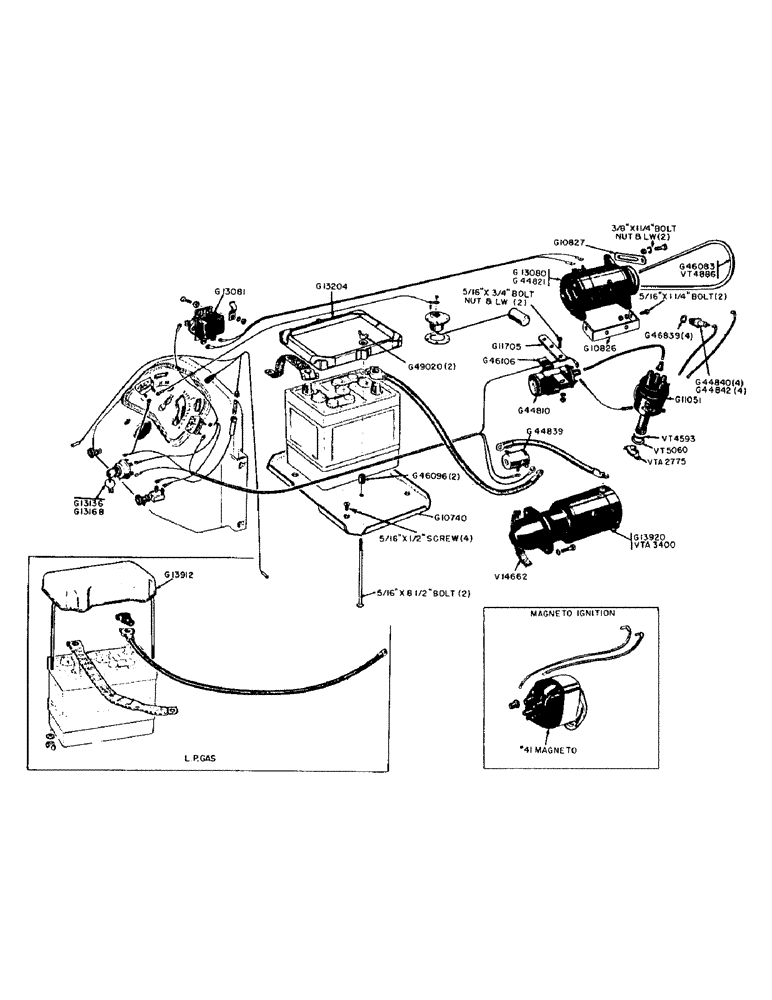

Запчасти Case IH 300-SERIES (066) - ELECTRICAL SYSTEM - 6 VOLT, BATTERY, GENERATOR, STARTING MOTOR, IGNITION AND MAGNETO IGNITION (04) - ELECTRICAL SYSTEMS

BATTERY - storage (Exide #151)

1шт.

BATTERY - storage, L.P.G. engine (Exide #2N-100)

1шт.

G10740

X

PAN - battery base

1шт.

5/16" X 1/2" FLAT HD. MACH. SCREW (SPIN-LOCK)

4шт.

G13204

FRAME - battery hold down

1шт.

5/16" x 8-1/2" carr. bolt

2шт.

G13912

COVER - battery, L.P.G. engine (Includes hold down bolts)

1шт.

G46096

RETAINER

BUSHING - rubber, battery pan bolt

2шт.

G49020

NUT

- wing, battery hold down bolts

2шт.

5/16" LOCKWASHER AND PLAIN WASHER

2шт.

G10826

BRACKET - generator mounting, 6 volt

1шт.

3/8" NC HEX. NUT AND LOCKWASHER, generator - 6 volt

2шт.

G10827

STRAP - generator belt adjusting

1шт.

3/8" X 1-1/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER, generator

2шт.

G13080

GENERATOR (Auto-Lite #GHD-6002A) See G44821

1шт.

5/16" X 1-1/4" NF HEX. HD. BOLT W/HEX. NUT, lockwasher and plain washer, generator

2шт.

G13081

X

REGULATOR - voltage (Auto-Lite #VRR-4005A), generator

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER, generator

3шт.

G44821

GENERATOR (Auto-Life #GHD-6002S) minus pulley for power steering (Can use G13080 by removing pulley)

1шт.

G46083

V-BELT,0.42" W x 7.50" L

Drive, Fan, Generator and Power Steering Pump, See VT4886 0.42" W x 7.50" L

1шт.

VT4886

X

"V" BELT - fan and generator drive (See G46083)

1шт.

G13920

MOTOR - starting, L.P.G. and high altitude engines (Auto-Lite #MZ4139-3L) See VTA3400, 6 volt

1шт.

G44839

SOLENOID

- starter switch, starting motor - 6 volt

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER, starting motor - 6 volt

2шт.

V14662

SEAL - felt, starting motor, 6 volt

1шт.

VTA3400

MOTOR - starting (Auto-Lite #MZ4176) See G13920, 6 volt

1шт.

G11051

DISTRIBUTOR

(Auto-Lite #IAD6003-2J), ignition - 6 volt

1шт.

G11705

BRACKET

- coil mounting, ignition - 6 volt

1шт.

G13136

IGNITION SWITCH

SWITCH - ignition and starting (w/key), 6 volt

1шт.

Ref: G13136 Switch - Key P/N is G15470 17-June-96

1шт.

G44810

X

COIL - ignition (Auto-Lite #CAL-4001A) includes G46106 clamp and #10-32 x 1-1/2" rd. hd. mach. screw, 6 volt

1шт.

5/16" X 3/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER, ignition - 6 volt

2шт.

G44840

SPARK PLUG

SPARK - plug (Champion D16-8MM) includes gasket, ignition - 6 volt

4шт.

G46106

BRACKET

CLAMP - coil, ignition - 6 volt

1шт.

#10-32 X 1-1/2" RD. HD. MACH. SCREW, ignition - 6 volt

1шт.

G46839

GASKET

- spark plug, ignition - 6 volt

4шт.

VT4593

X

"O" RING - distributor to block, ignition - 6 volt

1шт.

VT5060

X

WASHER - thrust, distributor advance arm, ignition - 6 volt

1шт.

VTA2775

X

ARM - advance, distributor (Auto-Lite #IG-1860A1), ignition - 6 volt

1шт.

1/4" X 1/2" NC RD. HD. MACH. BOLT W/LOCKWASHER, ignition - 6 volt

1шт.

#41

MAGNETO - "CASE", flange mounted (See magneto parts catalog), ignition

1шт.

G13168

SWITCH

- ignition and starting (W/key), magneto

1шт.

G44840

SPARK PLUG

- (Champion D16-8MM) includes gasket, magneto ignition

4шт.

G44842

SPARK PLUG

- (Champion D14-8MM) includes gasket (High altitude engine), magneto ignition

4шт.

G46839

GASKET

- spark plug, magneto ignition

4шт.
