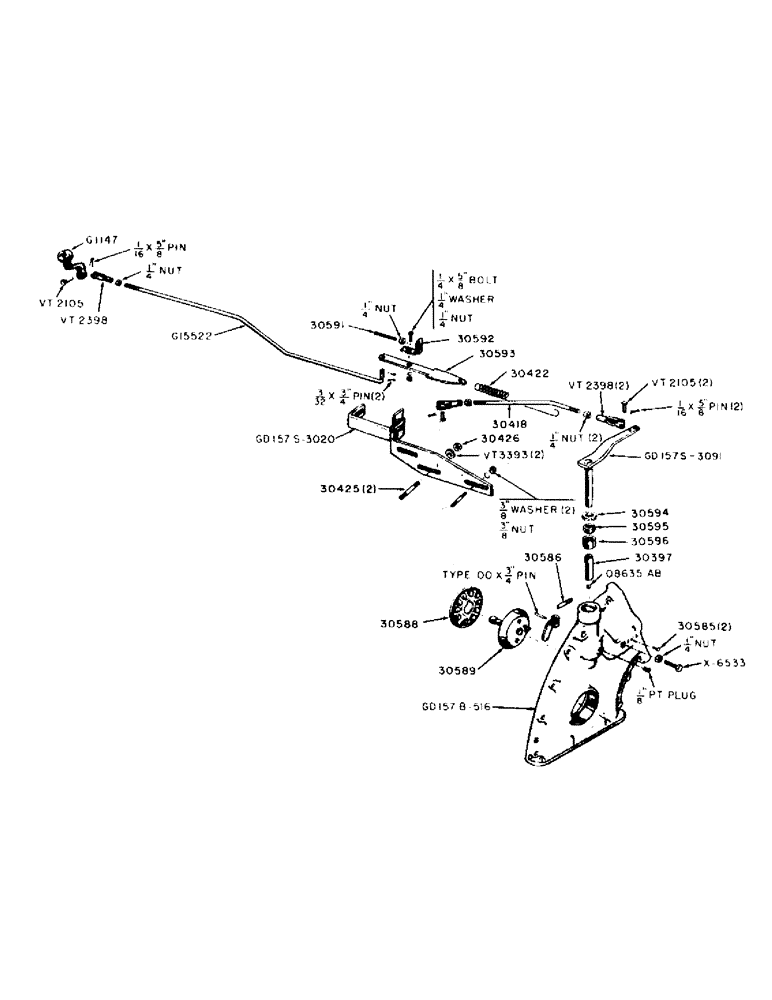

Запчасти Case IH 300-SERIES (063) - DIESEL ENGINE, GOVERNOR AND THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

30397

SPACER - governor rocker shaft

1шт.

30418

ROD - governor control, Serial Range: lever-pump

1шт.

30422

SPRING - governor

1шт.

30425

CONNECTOR, ELEC

STUD - governor control bracket (3/8" x 1-1/2")

2шт.

3/8" NC HEX. NUT AND LOCKWASHER

1шт.

30426

NUT - drilled, stop bracket stud

1шт.

30585

RIVET - bumper spring to gear cover

2шт.

30586

SPRING - bumper, governor

1шт.

30588

DRIVER ASSEMBLY - governor

1шт.

30589

SHAFT AND RACE ASSEMBLY - governor

1шт.

30591

SCREW - adjusting, idle stop

1шт.

1/4" NF HEX. JAM NUT

1шт.

30592

CLIP - adjusting, governor idle stop

1шт.

1/4" X 5/8" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

30593

LEVER - variable speed control

1шт.

30594

SEAL - dust, governor shaft

1шт.

30595

OIL SEAL - governor lever shaft

1шт.

30596

FLANGE

BEARING - needle, governor lever shaft

2шт.

GD157B-516

COVER - timing gear

1шт.

1/8" CTSK. HD. PIPE PLUG

1шт.

GD157S-3020

BRACKET - stop

1шт.

GD157S-3091

LEVER AND ARM ASSEMBLY

1шт.

X-6533

SCREW - adjusting, bumper spring (1/4" x 5/8" Nyolok)

1шт.

1/4" NC HEX. NUT

1шт.

G139-2045

TYPE 00 X 3/4" GROOVE PIN (For governor lever and arm assembly)

1шт.

G1147

LEVER - cross, Serial Range: shaft-yoke

1шт.

G15522

ROD - cross shaft lever to pump control lever

1шт.

1/4" NF HEX. JAM NUT

1шт.

3/32" X 3/4" COTTER PIN

1шт.

O8635AB

X

BALL (1/4") rocker arm thrust bearing

1шт.

VT2105

X

PIN - yoke

3шт.

1/16" X 5/8" COTTER PIN

3шт.

VT2398

X

YOKE - control, Serial Range: rod-lever

3шт.

VT3393

X

WASHER - control bracket stud

2шт.
