Запчасти Case IH 300-SERIES (062) - DIESEL ENGINE, FUEL FILTERS (03) - FUEL SYSTEM

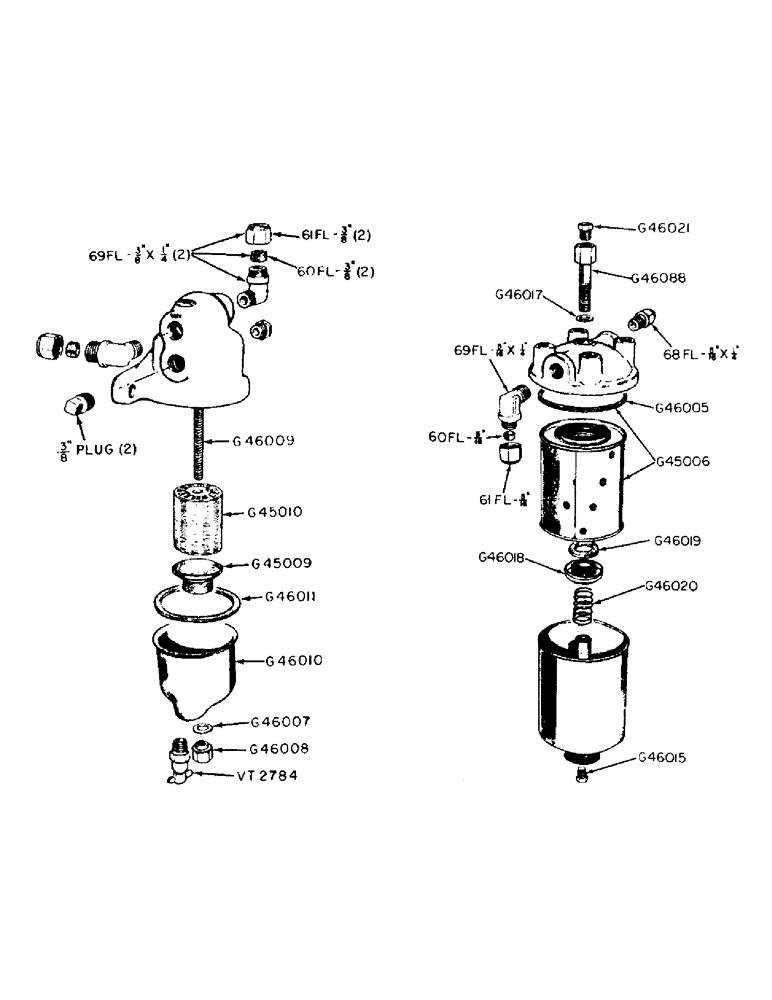

Схема запчастей Case IH 300-SERIES - (062) - DIESEL ENGINE, FUEL FILTERS (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

G13316

FILTER COMPLETE (Includes all parts listed below)

1шт.

3/8" SQ. HD. PIPE PLUG

2шт.

69FL-3/8" X 1/4" ELBOW, includes 60FL-3/8" sleeve and 61FL- 3/8" nut

2шт.

G45009

NUT - element stud

1шт.

G45010

ELEMENT - filter

1шт.

G46007

GASKET - bowl nut

1шт.

G46008

NUT - bowl

1шт.

G46009

STUD - element

1шт.

G46010

BOWL

1шт.

G46011

GASKET - filter, Serial Range: head-bowl

1шт.

VT2784

X

PLUG - drain

1шт.

G11067

FILTER

COMPLETE (Includes all parts listed below), G11067 second stage filter

1шт.

68FL-5/16" X 1/4" CONNECTOR, includes 60FL-5/16" sleeve and 61FL-5/16" nut

1шт.

69FL-5/16" X 1/4" ELBOW, includes 60FL-5/16" sleeve and 61FL- 5/16" nut

1шт.

G45006

FILTER, ELEMENT

FILTER CARTRIDGE ASSEMBLY, includes head gasket, G11067 second stage filter

1шт.

G46005

GASKET

- head, G11067 second stage filter

1шт.

G46015

PLUG - drain, G11067 second stage filter

1шт.

G46017

GASKET - capscrew, G11067 second stage filter

1шт.

G46018

PLATE - sealing, G11067 second stage filter

1шт.

G46019

GROMMET - sealing plate, G11067 second stage filter

1шт.

G46020

SPRING, G11067 second stage filter

1шт.

G46021

PLUG

- bleeder, G11067 second stage filter

1шт.

G46088

CAPSCREW, G11067 second stage filter

1шт.

Выбрано товаров: 23
