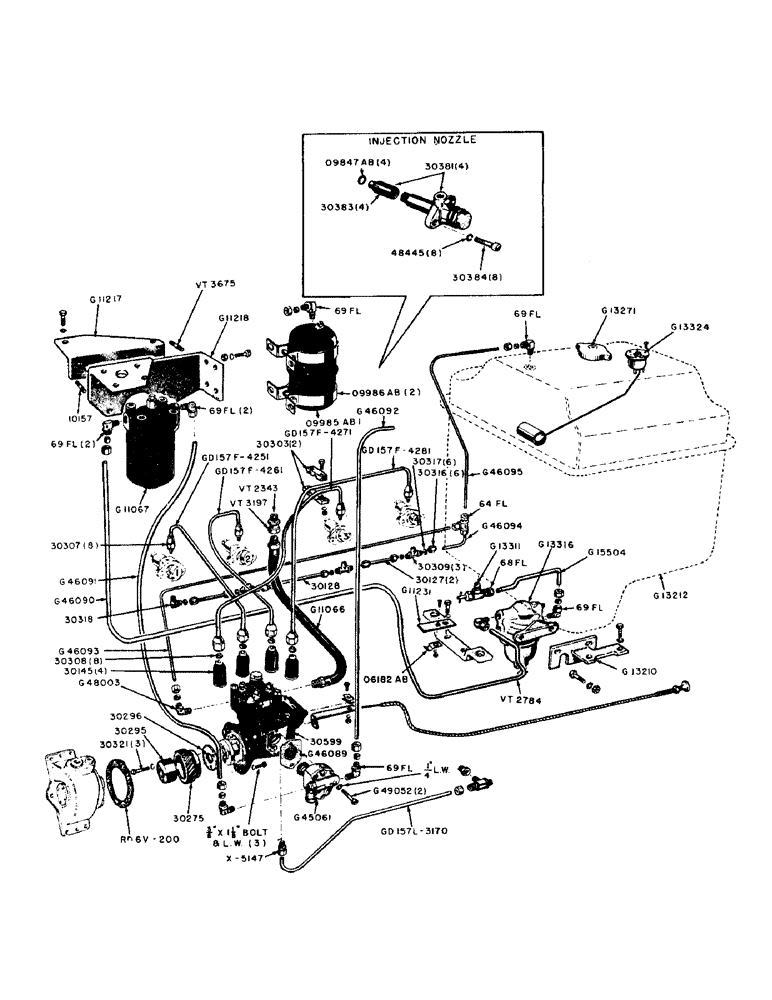

Запчасти Case IH 300-SERIES (060) - DIESEL ENGINE, FUEL SYSTEM, WITH SUPPLY PUMP, FUEL INJECTION PUMP, TUBES AND NOZZLES (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
30275
WASHER
GEAR - drive, injection pump (24T)
1шт.
30295
ANGLE DRIVE
ADAPTER - drive gear, injection pump
1шт.
30296
WASHER - drive gear
1шт.
30321
SCREW
- injection pump drive gear to pump (5/16" x 24 x 1-7/8")
3шт.
5/16" lockwasher
3шт.
30599
PUMP - fuel injection
1шт.
3/8" X 1-1/8" NC HEX. HD. BOLT W./LOCKWASHER
3шт.
GD157L-3170
TUBE - lubricating, engine block to injection pump
1шт.
RD6V-200
GASKET - injetion, Serial Range: pump-adapter
1шт.
X-5147
CONNECTOR - lubricating tube to injection pump
1шт.
G45061
PUMP - supply
1шт.
G46089
GASKET
- supply pump
1шт.
G49002
NUT
SCREW - supply pump to injection pump (Bosch)
2шт.
1/4" lockwasher (light)
2шт.
30127
PULLEY
TUBE - fuel leak-off, #3 to #4 nozzle and #1 to #2 nozzle, injection
2шт.
30128
TUBE - fuel leak -off, #2 to #3 nozzle, injection
1шт.
30303
CLAMP ASSEMBLY - fuel injection lines, tubes and nozzles
2шт.
80672C1
DECAL
NUT - leak-off tube, fuel injection tubes and nozzles
6шт.
30317
X
SLEEVE - leak-off tube, fuel injection tubes and nozzles
6шт.
30381
NOZZLE HOLDER AND TIP ASSEMBLY, fuel injection tubes
4шт.
30383
TIP
- nozzle, fuel injection (Includes O9847AB gasket)
4шт.
30384
BEARING ASSY
SCREW - nozzle holder to cylinder head (5/16" x 1-1/16"), fuel injection tubes
8шт.
48445
LOCKWASHER - nozzle holder screw, fuel injection tubes
8шт.
GD157F-4251
TUBE - injection, pump to #1 nozzle, fuel
1шт.
GD157F-4261
TUBE - injection, pump to #2 nozzle, fuel
1шт.
GD157F-4271
TUBE - injection, pump to #3 nozzle, fuel
1шт.
GD157F-4281
TUBE - injection, pump to #4 nozzle, fuel
1шт.
O9847AB
X
GASKET - injection nozzle tip, fuel tubes
4шт.
Выбрано товаров: 33
