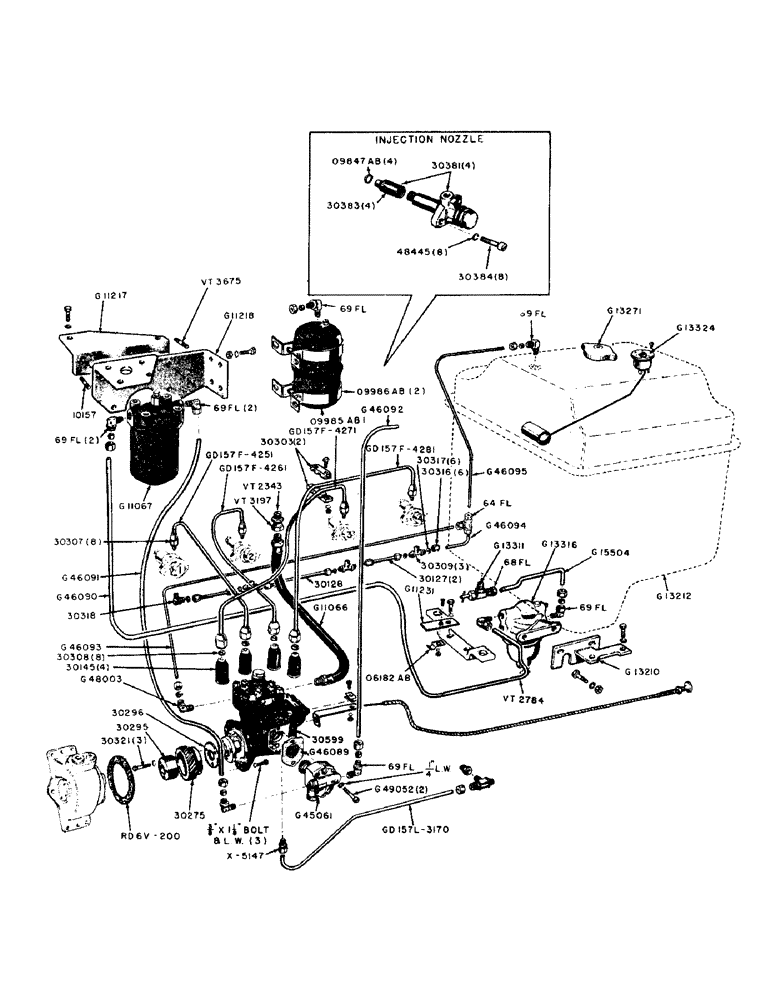

Запчасти Case IH 300-SERIES (058) - DIESEL ENGINE, FUEL SYSTEM, WITH SUPPLY PUMP, FUEL TANK AND FILTERING SYSTEM (03) - FUEL SYSTEM

10157

STUD - fuel filter mounting bracket (3/8" x 1-1/4")

1шт.

3/8" NC HEX. NUT AND LOCKWASHER

1шт.

A7336

CUSHION

BUSHING - rubber, fuel tank support

3шт.

G10690

SUPPORT - front, fuel tank

1шт.

5/16" X 1" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G10772

GASKET

- sender

1шт.

G10994

X

NUT - lock, fuel tank stud

3шт.

G11066

HOSE - final stage filter to injection pump

1шт.

G11067

FILTER

- fuel, second stage

1шт.

G11217

BRACE - mounting bracket, fuel filter

1шт.

3/8" x 1" NC HEX. HD. BOLT W/LOCKWASHER

1шт.

G11218

BRACKET - mounting, second and final stage filters

1шт.

3/8" X 1" NC HEX. HD. BOLT W/LOCKWASHER

1шт.

G11231

STRAP - fuel line clip

1шт.

5/16" x 3/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

G13087

CABLE PULLING GRIP

CABLE - fuel tank, Serial Range: sender-gage

1шт.

G13210

BRACKET - mounting, first stage fuel filter

1шт.

3/8" X 1-1/4" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G13212

TANK - fuel

1шт.

G13271

CAP

- fuel tank

1шт.

G13311

VALVE

- needle, fuel tank

1шт.

G13316

FILTER - fuel, first stage

1шт.

3/8" X 1-1/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

G13324

SENDER UNIT

SENDER - fuel gage

1шт.

#10-32 X 7/16" RD. HD. SELF-TAPPING SCREW (Philips hd.)

5шт.

G15504

LINE - fuel, needle valve to first stage filter

1шт.

69FL-3/8" X 1/4" ELBOW, includes 60FL-3/8" sleeve and 61FL-3/8" nut

1шт.

68FL-3/8" X 1/4" CONNECTOR, includes 60FL-3/8" sleeve and 61FL- 3/8" nut

1шт.

G46090

LINE - fuel, first stage filter to second stage filter

1шт.

69FL-3/8" X 1/4" ELBOW, includes 60FL-3/8" sleeve and 61FL-3/8" nut

2шт.

G46091

69FL-5/16" X 1/4" ELBOW, includes 60-FL-5/16" sleeve and 61FL- 5/16" nut

1шт.

G46092

LINE- fuel, supply pump to final stage filter

1шт.

69FL-5/16" X 1/4" ELBOW, includes 60FL-5/16" sleeve and 61FL- 5/16" nut

2шт.

G46093

LINE - overflow, check valve, Serial Range: elbow-tee

1шт.

64FL-3/16" OD X 3/16" OD X 3/16" OD X 3/16" OD INCLUDES 3 - 60FL-3/16" SLEEVES AND 3 - 61FL 3/16" NUTS

1шт.

G46094

LINE - overflow, leak off, Serial Range: tubes-tee

1шт.

G46095

LINE - overflow, Serial Range: tee-tank

1шт.

69FL - 3/16" X 1/8" ELBOW, includes 60FL - 3/16" sleeve and 61FL - 3/16" nut

1шт.

G48003

ELBOW - check valve, includes 60FL - 3/16" sleeve and 61FL - 3/16" nut

1шт.

O6182AB

CLIP - fuel line

1шт.

O9985AB1

FILTER - fuel, final stage

1шт.

O9986AB

CLAMP - final stage filter

2шт.

1/4" X 1/2" RD. MACH. SCREW

2шт.

3/8" X 3/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

4шт.

O30577HT

X

WASHER - fuel tank stud

3шт.

VT2343

X

ADAPTER - hose union to final stage filter

1шт.

VT2784

X

VALVE - drain, first stage filter

1шт.

VT3197

UNION - adapter, hose to final stage filter

1шт.

VT3675

X

STUD - fuel filter mounting bracket (3/8" x 1-1/2")

1шт.

3/8" NC HEX. NUT AND LOCKWASHER

1шт.
