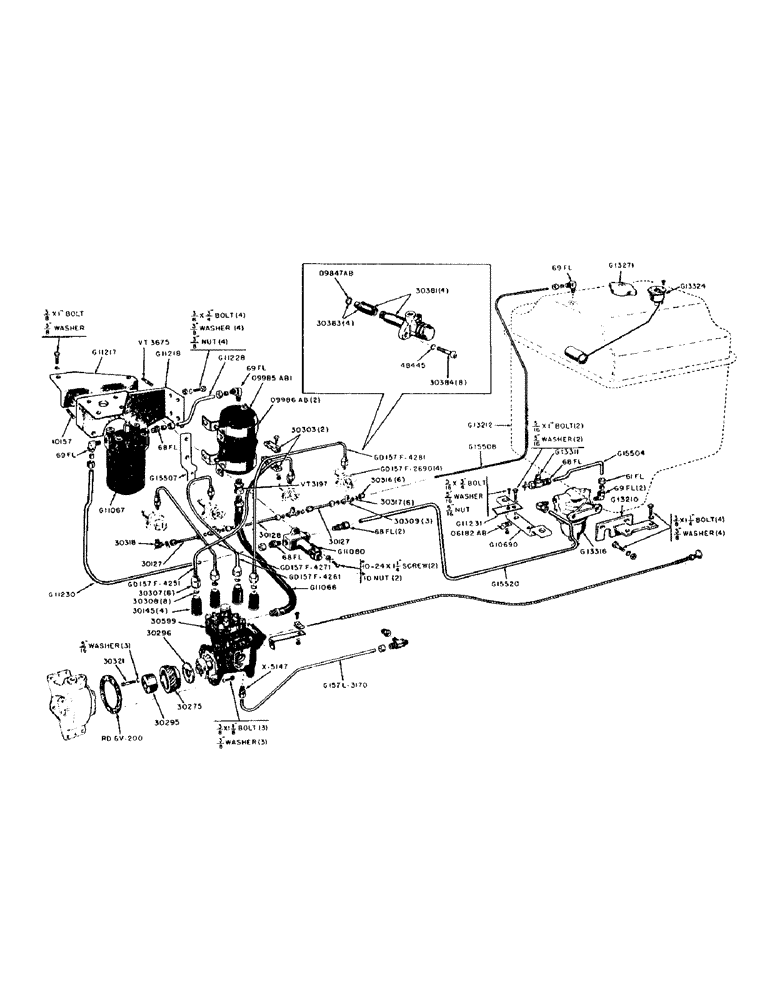

Запчасти Case IH 300-SERIES (056) - DIESEL ENGINE, FUEL SYSTEM, WITH HAND PRIMER PUMP, FUEL INJECTION TUBES AND NOZZLES (03) - FUEL SYSTEM

30127

PULLEY

TUBE - fuel leak-off, #3 to #4 nozzle and #1 to #2 nozzle

2шт.

30128

TUBE - fuel leak-off, #2 to #3 nozzle

1шт.

30145

SLEEVE - injection tubes at pump (Neoprene)

4шт.

30303

CLAMP ASSEMBLY - fuel injection lines

2шт.

30307

NUT - coupling, injection tubes

8шт.

30308

RING - coupling, injection tubes

8шт.

30309

TEE - for #2, #3 and #4 nozzle leak-off tubes

3шт.

80672C1

DECAL

NUT - leak-off tube

6шт.

30317

X

SLEEVE - leak-off tube

6шт.

30318

X

ELBOW - for #1 nozzle leak-off tube

1шт.

30381

NOZZLE HOLDER AND TIP ASSEMBLY

4шт.

30383

TIP

- nozzle, fuel injection (Includes O9847AB gasket)

4шт.

30384

BEARING ASSY

SCREW - nozzle holder to cylinder head (5/16" x 1-1/16")

8шт.

48445

LOCKWASHER - nozzle holder screw

8шт.

GD157F-4251

TUBE - injection, pump to #1 nozzle

1шт.

GD157F-4261

TUBE - injection, pump to #2 nozzle

1шт.

GD157F-4271

TUBE - injection, pump to #3 nozzle

1шт.

GD157F-4281

TUBE - injection, pump to #4 nozzle

1шт.

O9847AB

X

GASKET - injection nozzle tip

4шт.
