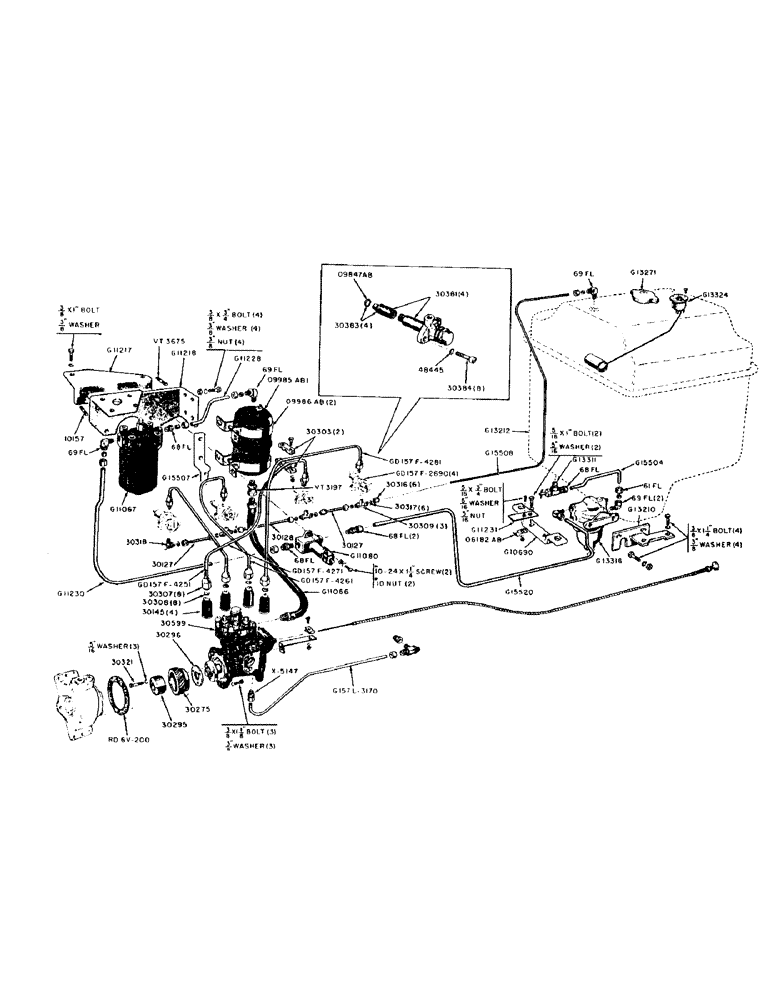

Запчасти Case IH 300-SERIES (054) - DIESEL ENGINE, FUEL SYSTEM, WITH HAND PRIMER PUMP, FUEL TANK & FILTERING SYSTEM, FUEL INJECTION PUMP (03) - FUEL SYSTEM

A7336

CUSHION

BUSHING - rubber, fuel tank support

3шт.

G10690

SUPPORT - front, fuel tank

1шт.

5/16" X 1" HEX. HD. BOLT, NC w/lockwasher

2шт.

G10772

GASKET

- sender

1шт.

G10994

X

NUT - lock, fuel tank stud

3шт.

G11066

HOSE - final stage filter to injection pump

1шт.

G11067

FILTER

- fuel, second stage

1шт.

G11080

PUMP - hand primer

1шт.

#10-32 X 1-1/4" FILISTER HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G11217

BRACE - mounting bracket, fuel filter

1шт.

3/8" X 1" HEX. HD. BOLT, NC w/lockwasher

1шт.

G11218

BRACKET - mounting, second and final stage filters

1шт.

3/8" X 1" HEX. HD. BOLT, NC W/HEX. NUT AND LOCKWASHER

1шт.

G11228

LINE - fuel, second to final stage filter

1шт.

68FL-5/16" X 1/4" CONNECTOR, includes 60FL-5/16" sleeve and 61FL-5/16" nut

1шт.

69FL-5/16" X 1/4" ELBOW, includes 60FL-5/16" sleeve and 61FL- 5/16" nut

1шт.

G11230

LINE - fuel, primer pump to second stage filter

1шт.

68FL-5/16" X 1/4" CONNECTOR, includes 60FL-5/16" sleeve and 61FL-5/16" nut

1шт.

69FL-5/16" X 1/4" ELBOW, includes 60FL-5/16" sleeve and 61FL- 5/16" nut

1шт.

G11231

STRAP - fuel line clip

1шт.

5/16" X 3/4" HEX. HD. BOLT, NF w/hex. nut and lockwasher

1шт.

G13087

CABLE PULLING GRIP

CABLE - fuel tank sender to fuel gage

1шт.

G13210

BRACKET - mounting, first stage fuel filter

1шт.

3/8" X 1-1/4" HEX. HD. BOLT, NC w/lockwasher

2шт.

G13212

TANK - fuel

1шт.

G13271

CAP

- fuel tank

1шт.

G13311

VALVE

- needle

1шт.

G13316

FILTER - first stage fuel

1шт.

3/8" X 1-1/4" HEX. HD. BOLT, NF w/hex. nut and lockwasher

2шт.

G13324

SENDER UNIT

SENDER - fuel gage

1шт.

#10 - 32 X 7/16" RD. HD. SELF-TAPPING SCREW (Philips hd.)

5шт.

G15504

LINE - fuel, needle valve to first stage filter

1шт.

69FL-3/8" X 1/4" ELBOW, includes 60FL-3/8" sleeve and 61FL-3/8" nut

1шт.

68FL-3/8" X 1/4" CONNECTOR, includes 60FL-3/8" sleeve and 61FL- 3/8" nut

1шт.

G15507

BRACKET - mounting, hand primer pump

1шт.

3/8" X 1-1/4" HEX. HD. BOLT, NC w/lockwasher

1шт.

G15508

LINE - fuel, overflow leak-off, Serial Range: tubes-tank

1шт.

69FL-3/16" x 1/8" ELBOW, includes 60FL-3/16" sleeve and 61FL- 3/16" nut

1шт.

G15520

LINE - fuel, first stage filter to primer pump

1шт.

68FL-3/8" X 1/4" CONNECTOR, includes 60FL-3/8" sleeve and 61FL- 3/8" nut

1шт.

69FL-3/8" X 1/4" ELBOW, includes 60FL-3/8" sleeve and 61FL-3/8" nut

1шт.

O6182AB

CLIP - fuel line

1шт.

O9985AB1

FILTER - fuel, final stage

1шт.

O9986AB

CLAMP - final stage filter

2шт.

1/4" X 1/2" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

3/8" X 3/4" HEX. HD. BOLT, NF w/hex. nut and lockwasher

4шт.

O30577HT

X

WASHER - fuel tank stud

3шт.

VT2784

X

VALVE - drain, first stage filter

1шт.

VT3197

UNION - adapter, G11066 hose to final stage filter

1шт.

VT3675

X

STUD - fuel filter mounting bracket (3/8" x 1-1/2")

1шт.

3/8" HEX. NUT, NC and lockwasher

1шт.

10157

STUD - fuel filter mounting bracket (3/8" x 1-1/4")

1шт.

3/8" HEX. NUT, NC and lockwasher

1шт.

30275

WASHER

GEAR - drive, injection pump, fuel

1шт.

30295

ANGLE DRIVE

ADAPTER - drive gear, injection pump, fuel

1шт.

30296

WASHER - drive gear, fuel injection pump

1шт.

30321

SCREW

- injection pump drive gear to pump (5/16" x 1-7/8"), fuel

3шт.

5/16" lockwasher, fuel injection pump

3шт.

30599

PUMP - complete, fuel injection

1шт.

3/8" X 1-1/8" NC HEX. HD. BOLT W/LOCKWASHER, fuel injection pump

3шт.

GD157L-3170

TUBE - lubricating, engine block to pump, fuel injection

1шт.

RD6V-200

GASKET - injection pump to adapter, fuel

1шт.

X-5147

CONNECTOR - lubricating tube to injection pump, fuel

1шт.
