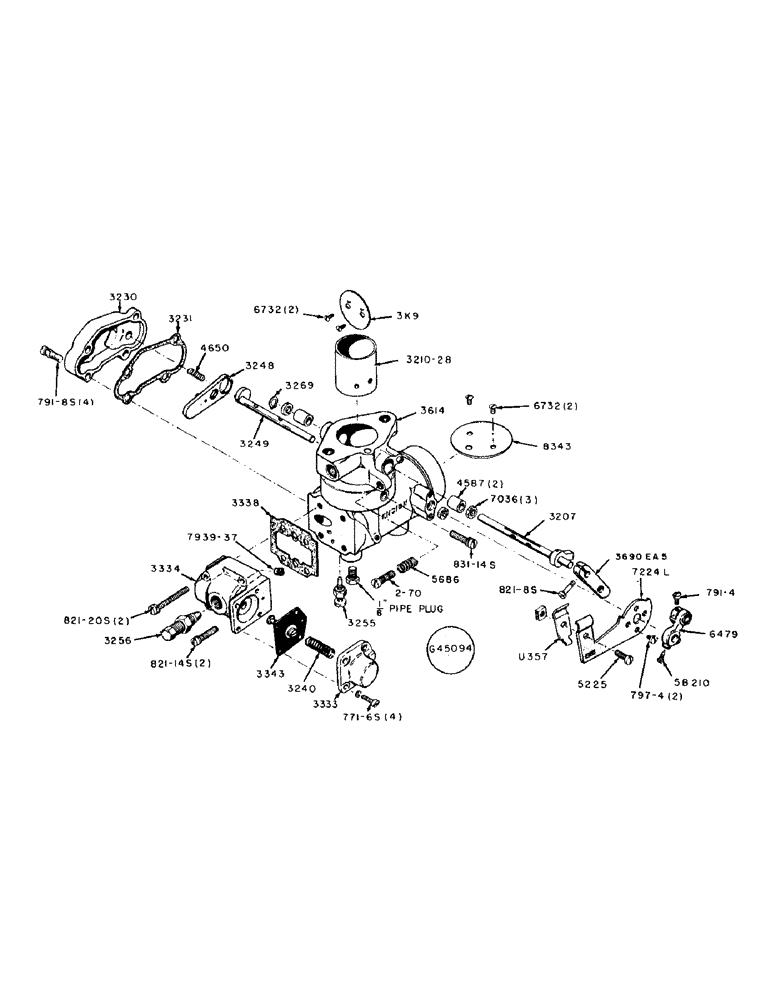

Запчасти Case IH 300-SERIES (040) - SPARK IGNITION ENGINES, G45094 L.P.G. CARBURETOR, ENSIGN NO. 4216 (03) - FUEL SYSTEM

2-70

KEY

SCREW - adjusting, throttle stop

1шт.

3K9

DISC - throttle

1шт.

5B210

SET SCREW - choke lever

1шт.

U357

CLAMP - choke rod

1шт.

771-6S

SCREW - economizer cover

4шт.

791-4

SCREW - swivel, choke lever

1шт.

791-8S

SCREW - valve cover

4шт.

797-4

SCREW - choke rod support

2шт.

821-8S

SCREW - throttle lever

1шт.

821-14S

SCREW - fuel inlet cover

2шт.

821-20S

SCREW - fuel inlet cover

2шт.

831-14S

SET SCREW - venturi

1шт.

3207

SEALING WASHER

THROTTLE SHAFT AND STOP ASSEMBLY

1шт.

3210-28

VENTURI

1шт.

3230

RADIO

COVER - valve

1шт.

3231

GASKET - valve cover

1шт.

3240

SPRING - economizer

1шт.

3248

LEVER - valve

1шт.

3249

CHOKE SHAFT AND CAM ASSEMBLY

1шт.

3255

LOCKABLE FUEL CAP

SCREW AND LOCKNUT - starting adjusting

1шт.

3256

GASKET

SCREW AND LOCKNUT - fuel adjusting

1шт.

3269

END PLATE

SNAP RING - choke shaft

1шт.

3333

LID

COVER - economizer

1шт.

3334

LID

BODY - fuel inlet and economizer

1шт.

3338

GASKET - fuel inlet and economizer body

1шт.

3343

CABLE

ECONOMIZER DIAPHRAGM ASSEMBLY

1шт.

3614

HYDRAULIC HOSE

BODY - carburetor

1шт.

1/8" PIPE PLUG

1шт.

3690EA5

THROTTLE LEVER ASSEMBLY

1шт.

4587

BUSHING - throttle shaft

2шт.

4650

MAGNET

SPRING - choke shaft

1шт.

5225

SPEAKER

SCREW - clamp, choke rod (Includes nut)

1шт.

5686

SENSOR

SPRING - adjusting screw, throttle stop

1шт.

6479

CHOKE LEVER ASSEMBLY

1шт.

6732

SCREW - choke disc

2шт.

6732

SCREW - throttle disc

2шт.

7036

BOLT,Hex, 1 1/4" - 12 x 3 1/2", Gr 8

DUST SEAL - choke shaft

1шт.

7036

BOLT,Hex, 1 1/4" - 12 x 3 1/2", Gr 8

DUST SEAL - throttle shaft

2шт.

7224L

SUPPORT - choke rod

1шт.

7939-37

SCREW - bleed

1шт.

8343

CLOTHES

DISC - choke

1шт.
