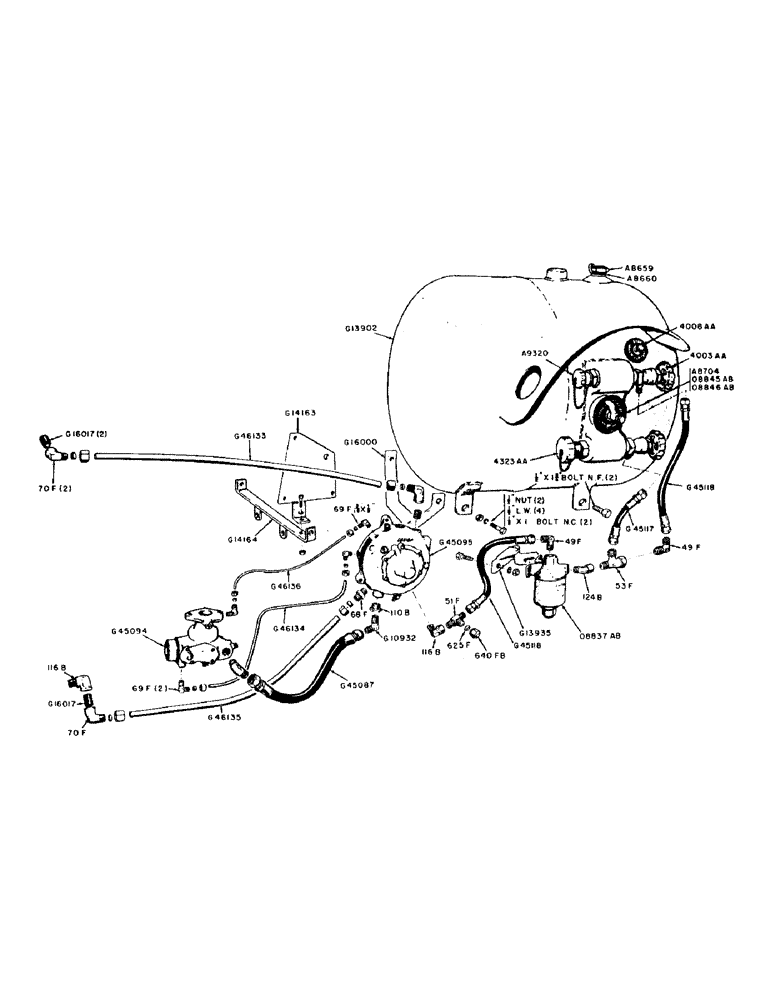

Запчасти Case IH 300-SERIES (036) - SPARK IGNITION ENGINES, L.P. GAS TANK, ENSIGN (03) - FUEL SYSTEM

A8659

VALVE - safety relief

1шт.

A8660

CAP - rain

1шт.

A8704

ROTOGAGE

1шт.

A9320

VALVE - vapor return

1шт.

G13902

TANK - fuel, w/valves and fittings

1шт.

1/2" X 1" HEX. HD. BOLT, NC w/lockwasher

2шт.

1/2" X 1-1/2" HEX. HD. BOLT, NC w/hex. nut & lockwasher

2шт.

G16000

BRACKET - front support, fuel tank

1шт.

1/2" X 1-1/4" HEX. HD. CAP SCREW, NC w/lockwasher

2шт.

O8845AB

ADAPTOR - rotogage

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW, NF w/lockwasher

4шт.

O8846AB

GASKET - rotogage adaptor

1шт.

4003AA

X

VALVE - outlet, liquid and vapor

2шт.

4008AA

GAGE - fixed liquid level

1шт.

4323AA

VALVE - liquid filler

1шт.

G10932

ELBOW

- hose to regulator, L.P. gas attachments (ENSIGN)

1шт.

110B REDUCING BUSHING - 1/2" OD x 3/8" PT, L.P. gas attachments (ENSIGN)

1шт.

G13935

BRACKET - mounting, O8837AB filter, L.P. gas attachments (ENSIGN)

1шт.

G14163

BRACKET - regulator mounting, L.P. gas attachments (ENSIGN)

1шт.

1/4" X 3/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER, L.P. gas attachments (ENSIGN)

1шт.

G14164

SUPPORT - regulator mounting bracket and L.H. side panel, L.P. gas attachments (ENSIGN)

1шт.

G16017

X

NIPPLE - brass, water line (3/8" P.T. x 1" long), L.P. gas attachments (ENSIGN)

3шт.

G45087

HOSE - regulator to carburetor, L.P. gas attachments (ENSIGN)

1шт.

G45094

CARBURETOR (Ensign model Mg 1-1" #4216), L.P. gas attachments

1шт.

3/8" X 1" NC HEX. HD. BOLT W/LOCKWASHER, L.P. gas attachments (ENSIGN)

2шт.

G45095

REGULATOR (Ensign model w/#4207), L.P. gas attachments

1шт.

5/16" X 1" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER, L.P. gas attachments (ENSIGN)

3шт.

116B 90 DEGREE STREET ELBOW - 1/4" P.T., L.P. gas attachments (ENSIGN)

1шт.

51F - 3/8" X 1/4" TEE FITTING, L.P. gas attachments (ENSIGN)

1шт.

625F - 3/8" GASKET, L.P. gas attachments (ENSIGN)

1шт.

640FB - 5/8" - 18 CAP NUT, L.P. gas attachments (ENSIGN)

1шт.

G45117

HOSE - liquid, tank to regulator, L.P. gas attachments (ENSIGN)

1шт.

53BF - 3/8" X 1/4" TEE FITTING, L.P. gas attachments (ENSIGN)

1шт.

G45118

HOSE - vapor, tank to filter and filter to regulator, L.P. gas attachments (ENSIGN)

2шт.

49F - 3/8" X 1/4" - 90 DEGREE ELBOW, L.P. gas attachments (ENSIGN)

2шт.

G46133

LINE - water, outlet elbow to regulator, L.P. gas attachments (ENSIGN)

1шт.

70F - 1/2" X 3/8" - 90 DEGREE ELBOW, L.P. gas attachments (ENSIGN)

2шт.

G46134

LINE - balance, regulator to carburetor, L.P. gas attachments (ENSIGN)

1шт.

69F - 5/16" X 1/8" - 90 DEGREE ELBOW, L.P. gas attachments (ENSIGN)

2шт.

G46135

LINE - water, regulator to inlet elbow, L.P. gas attachments (ENSIGN)

1шт.

68F - 1/2" X 3/8" FITTING, L.P. gas attachments (ENSIGN)

1шт.

70F - 1/2" X 3/8" - 90 DEGREE ELBOW, L.P. gas attachments (ENSIGN)

1шт.

O46136

LINE - idle, regulator to carburetor, L.P. gas attachments (ENSIGN)

1шт.

69F - 3/16" X 1/8" - 90 DEGREE ELBOW, L.P. gas attachments (ENSIGN)

1шт.

O562AB

X

GASKET - carburetor to manifold, L.P. gas attachments (ENSIGN)

1шт.

O8837AB

FILTER - liquid (Ensign #6257), L.P. gas attachments

1шт.

5/16" X 1" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER, L.P. gas attachments (ENSIGN)

2шт.

124B - 1/2" - 45 DEGREE ELBOW, L.P. gas attachments (ENSIGN)

1шт.
