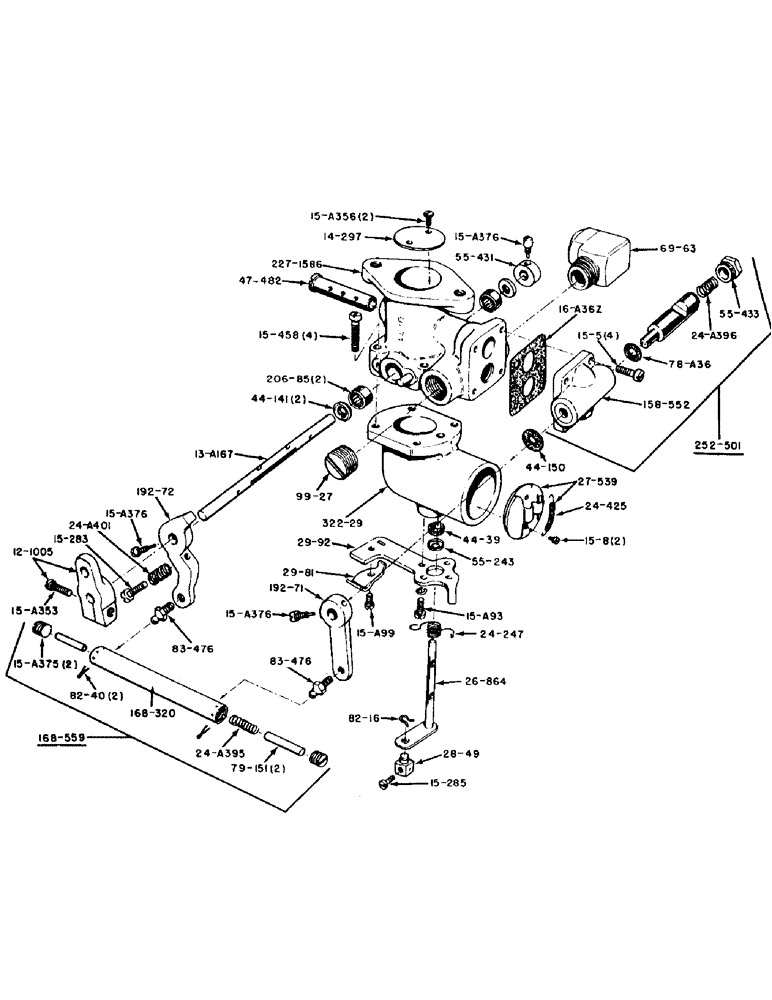

Запчасти Case IH 300-SERIES (034) - SPARK IGNITION ENGINES, G45186 L.P.G. CARBURETOR MARVEL-SCHEBLER NO. 4-817 (03) - FUEL SYSTEM

12-1005

GASKET

LEVER - throttle (Includes screw)

1шт.

13-A167

SHAFT - throttle

1шт.

14-297

FLY - throttle

1шт.

15-5

SCREW -, Serial Range: valve-body

4шт.

15-8

BALL

SCREW - choker fly

2шт.

15-283

SCREW - idle spring

1шт.

15-285

SCREW - choke rod swivel

1шт.

15-458

SCREW - throttle body

4шт.

15-A93

SCREW - choker bracket

1шт.

15-A99

SCREW - choker bracket clip

1шт.

15-A353

SCREW - throttle lever

1шт.

15-A356

SCREW - throttle, Serial Range: fly-shaft

2шт.

15-A375

SCREW - adjustment, drag link

2шт.

15-A376

SCREW - pin, metering valve levers and throttle shaft retainer

3шт.

16-A362

GASKET - valve housing

1шт.

24-247

SPRING - choke return

1шт.

24-425

SPRING - choke fly flapper

1шт.

24-A395

SPRING - drag link

1шт.

24-A396

SPRING - metering valve

1шт.

24A401

SPRING - idle

1шт.

26-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

CHOKE SHAFT AND LEVER

1шт.

27-539

CHOKE FLY ASSEMBLY

1шт.

28-49

SWIVEL - choke rod

1шт.

29-81

CLIP - choke, Serial Range: rod-bracket

1шт.

29-92

BRACKET - choke

1шт.

44-39

PACKING - choke shaft

1шт.

44-141

PACKING - throttle shaft

2шт.

44-150

PACKING - metering valve

1шт.

47-482

NOZZLE - spraybar

1шт.

55-243

RETAINER - choke shaft packing

1шт.

55-431

RETAINER - throttle shaft

1шт.

55-433

RETAINER - metering valve assembly

1шт.

69-63

ELBOW - fuel line

1шт.

78-A36

WASHER - metering valve

1шт.

79-151

SPACER - drag link

2шт.

82-16

COTTER PIN - swivel, choke rod

1шт.

82-40

COTTER PIN - drag link

2шт.

83-476

STUD - ball, drag link

2шт.

99-27

PLUG - pipe, throttle body

1шт.

158-552

HOUSING - metering valve (Includes 55-438 retainer)

1шт.

168-320

DRAG LINK

1шт.

168-559

DRAG LINK ASSEMBLY (Includes spring, spacers, retainers and cotter pins)

1шт.

192-71

LEVER - metering valve

1шт.

192-72

LEVER - metering valve, throttle end

1шт.

206-85

BEARING - throttle shaft (Torrington #B44)

2шт.

227-1586

THROTTLE BODY ASSEMBLY (Includes throttle stop pin)

1шт.

252-501

METERING VALVE ASSEMBLY COMPLETE

1шт.

322-29

ELBOW - air horn

1шт.

53E

ELBOW - carburetor and regulator outlets

2шт.

60-498

BUSHING - reducer, regulator vapor outlet

1шт.

69-11

ELBOW - regulator vent

1шт.

97-19

CLAMP - hose

2шт.

G46237

LINE - vapor, Serial Range: regulator-carburetor

1шт.
