Запчасти Case IH 300-SERIES (032) - SPARK IGNITION ENGINES, G11099 L.P. GAS REGULATOR, MARVEL-SCHEBLER (03) - FUEL SYSTEM

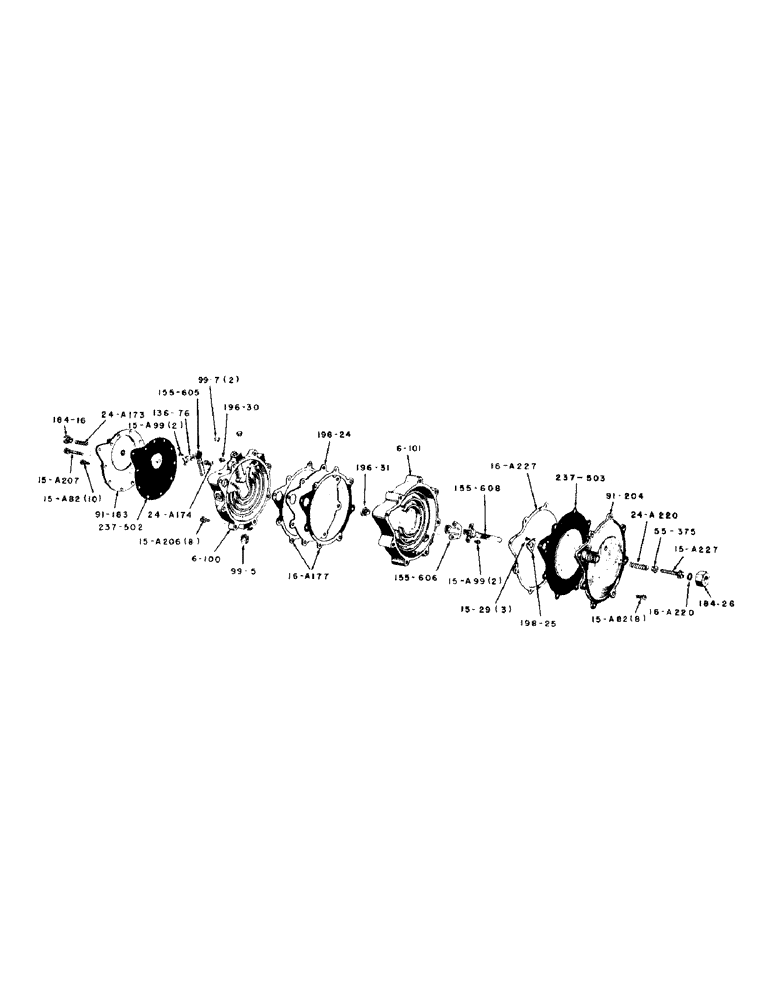

Схема запчастей Case IH 300-SERIES - (032) - SPARK IGNITION ENGINES, G11099 L.P. GAS REGULATOR, MARVEL-SCHEBLER (03) - FUEL SYSTEM

№

Артикул

Название

Примечание

Количество

6-100

BODY - primary

1шт.

6-101

BODY - secondary

1шт.

15-29

SCREW - sealing plate, secondary diaphragm

3шт.

Part of Repair Kit, P/N 286-1080

1шт.

15-A82

SCREW - regulator, Serial Range: covers-body

18шт.

15-A99

SCREW - primary and secondary levers

4шт.

Part of Repair Kit, P/N 286-1080

1шт.

15-A206

SCREW - regulator body, secondary

8шт.

15-A207

SCREW - primary body to secondary body

1шт.

15-A227

SCREW - idle adjusting

1шт.

16-A177

GASKET - water jacket

2шт.

Part of Repair Kit, P/N 286-1080

1шт.

16-A220

GASKET - rubber, idle adjusting seal

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

16-A227

GASKET - secondary

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

24-A173

SPRING - primary diaphragm

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

24-A174

SPRING - primary lever

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

24-A220

SPRING - secondary valve

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

55-375

RETAINER - idle adjusting

1шт.

91-183

COVER - primary regulator

1шт.

91-204

COVER - secondary regulator

1шт.

99-5

PLUG - square head, 3/8" PT

1шт.

99-7

PLUG - hex. head, 1/8" PT

2шт.

136-76

BRACKET - primary lever

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

155-605

PRIMARY LEVER ASSEMBLY

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

155-606

SECONDARY LEVER ASSEMBLY

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

155-608

SECONDARY VALVE LEVER ASSEMBLY

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

184-16

CAP - retainer, primary diaphragm spring

1шт.

184-26

CAP - idle adjusting

1шт.

196-30

WASHER,11/16" x 1 1/2" x .134", HDN

SEAT - primary valve

1шт.

196-31

WASHER

SEAT - secondary valve

1шт.

198-24

PLATE - baffle

1шт.

198-25

PLATE - sealing, secondary diaphragm

1шт.

237-502

PRIMARY DIAPHRAGM ASSEMBLY

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

237-503

SECONDARY DIAPHRAGM ASSEMBLY

1шт.

Part of Repair Kit, P/N 286-1080

1шт.

286-1080

REPAIR KIT, Includes: Ref. P/N 15-29, 15-A99, 16-A177, 16-A220, 16-A227, 24-A173, 24-A174, 24-A220, 136-76, 155-605, 155-606, 155-608, 237-502 and 237-503

1шт.

Выбрано товаров: 46
