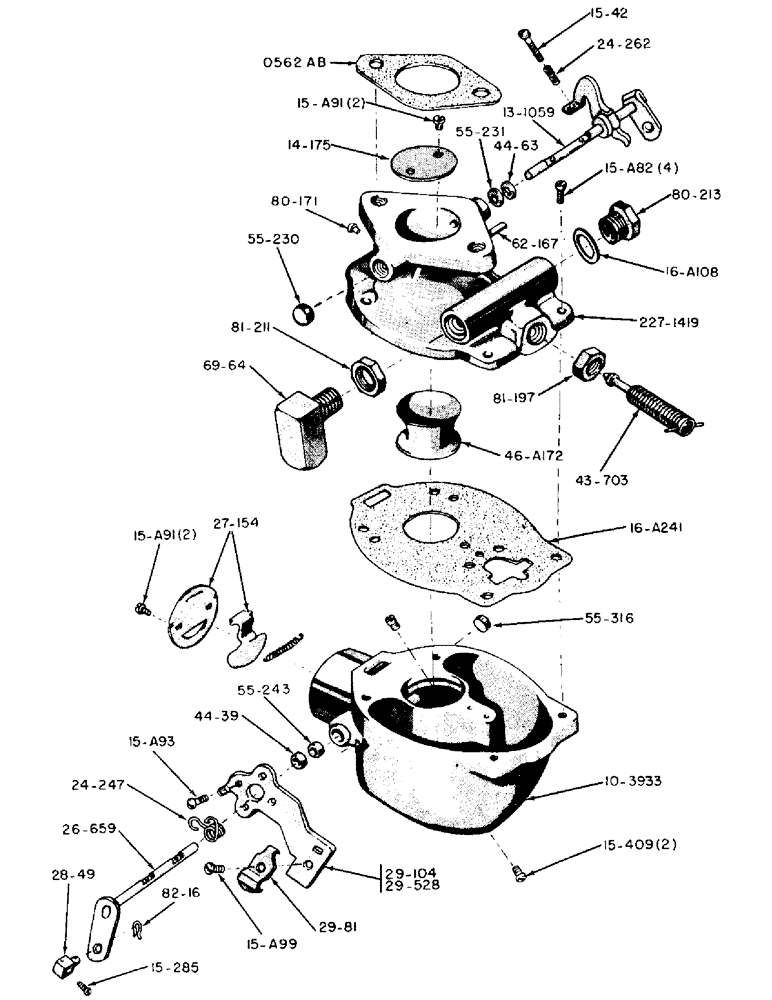

Запчасти Case IH 300-SERIES (030) - SPARK IGNITION ENGINES, G11100 L.P. GAS CARBURETOR MARVEL-SCHEBLER MODEL TSG-7 (03) - FUEL SYSTEM

10-3933

BODY ASSEMBLY

1шт.

13-1059

THROTTLE SHAFT, throttle stop and lever assembly

1шт.

14-175

FLY - throttle

1шт.

15-42

SCREW - throttle stop

1шт.

15-285

SCREW - choker swivel

1шт.

15-409

SCREW - nozzel holes

2шт.

15-A82

SCREW - throttle, Serial Range: body-bowl

4шт.

15-A91

SCREW - throttle fly and choker fly

4шт.

15-A93

SCREW - choke, Serial Range: bracket-body

1шт.

15A99

SCREW - choke bracket clip

1шт.

16-A108

GASKET - fuel inlet

1шт.

16-A241

GASKET - throttle, Serial Range: body-bowl

1шт.

24-247

SPRING - choke return

1шт.

24-262

SPRING - throttle stop screw

1шт.

26-659

CHOKER SHAFT AND LEVER ASSEMBLY

1шт.

27-154

FLY - choker

1шт.

28-49

LEVER - choker swivel

1шт.

29-81

CHOKER BRACKET CLIP

1шт.

29-104

BRACKET - choke tube

1шт.

29-528

CHOKER BRACKET ASSEMBLY

1шт.

43-703

FUEL ADJUSTING NEEDLE ASSEMBLY

1шт.

44-39

PACKING - choker shaft

1шт.

44-63

PACKING - throttle shaft

1шт.

46-A172

VENTURI

1шт.

55-230

CUP - throttle shaft

1шт.

55-231

RETAINER - throttle shaft packing

1шт.

55-243

RETAINER - choker shaft packing

1шт.

55-316

CUP - choke shaft

1шт.

62-167

PIN - throttle stop

1шт.

69-64

ELBOW - fuel inlet fitting

1шт.

80-171

PLUG - idle

1шт.

80-213

PLUG - fuel inlet

1шт.

81-197

NUT - lock, fuel needle

1шт.

81-211

NUT - fuel inlet elbow

1шт.

82-16

COTTER - choker swivel

1шт.

227-1419

THROTTLE BODY ASSEMBLY

1шт.

O562AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.
