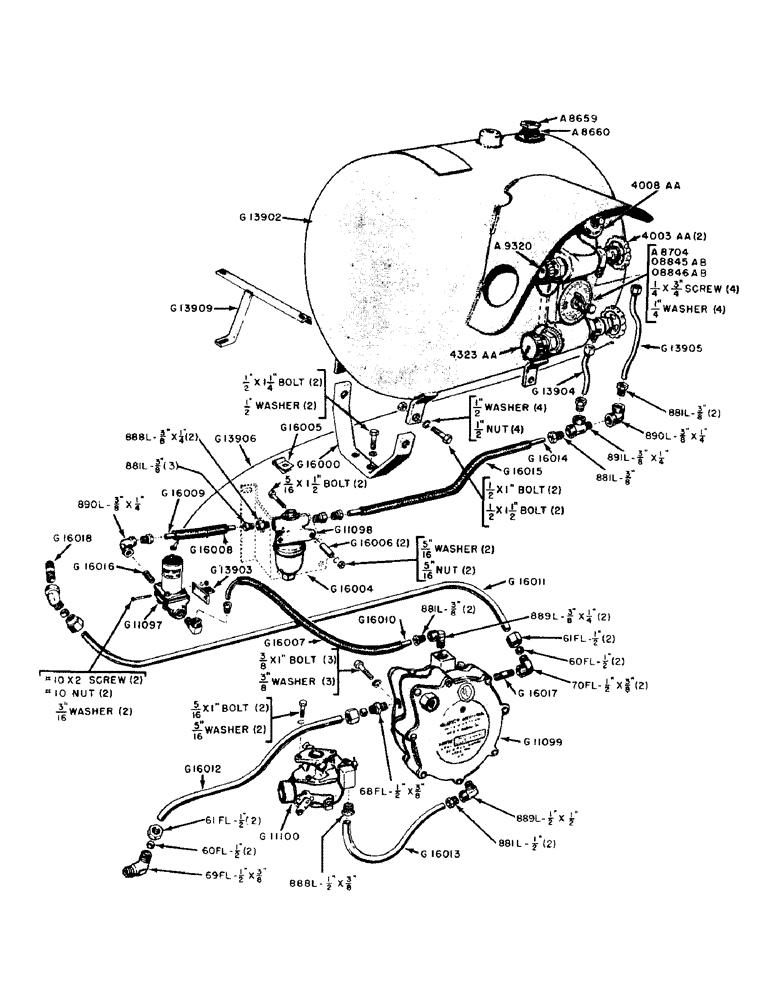

Запчасти Case IH 300-SERIES (028) - SPARK IGNITION ENGINES, L.P. GAS TANK AND ATTACHMENTS, FUEL TANK L.P. GAS, MARVEL-SCHEBLER (03) - FUEL SYSTEM

A8659

VALVE - safety relief

1шт.

A8660

CAP - rain

1шт.

A8704

ROTOGAGE

1шт.

A9320

VALVE - vapor return

1шт.

G13902

TANK - fuel, w/valves and fittings

1шт.

1/2" X 1" HEX. HD. BOLT, NC w/lockwasher

2шт.

1/2" X 1-1/2" HEX. HD. BOLT, NC w/hex. nut & lockwasher

2шт.

G16000

BRACKET - front support, fuel tank

1шт.

1/2" X 1-1/4" HEX. HD. CAP SCREW, NC w/lockwasher

2шт.

O8845AB

ADAPTER - rotogage

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW, NF w/lockwasher

4шт.

O8846AB

GASKET - rotogage adaptor

1шт.

4003AA

X

VALVE - outlet, liquid and vapor

2шт.

4008AA

GAGE - fixed liquid level

1шт.

4323AA

VALVE - liquid filler

1шт.

G11097

VALVE - fuel shutoff, magnetic (Marvel-Schebler #171-551), L.P. gas attachments

1шт.

#10-24 X 2" RD. HD. MACH. SCREW W/#10 HEX. NUT, L.P. gas attachments (Marvel-Schebler)

2шт.

3/16" LOCKWASHER, L.P. gas attachments (Marvel-Schebler)

2шт.

G11098

FILTER

- liquid (Marvel-Schebler #4-521), L.P. gas attachments

1шт.

5/16" X 1-1/2" HEX. HD. BOLT, NF w/hex. nut and lockwasher, L.P. gas attachments (Marvel-Schebler)

2шт.

G11099

REGULATOR - L.P. gas (Marvel-Schebler model UT-725), attachments

1шт.

3/8" X 1" HEX. HD. BOLT, NC w/lockwasher, L.P. gas attachments (Marvel-Schebler)

3шт.

G11100

CARBURETOR - L.P. gas (Marvel-Schebler model TSG-7), attachments

1шт.

5/16" x 3/4" HEX. HD. BOLT, NC w/lockwasher, L.P. gas attachments (Marvel-Schebler)

1шт.

5/16" X 1" HEX. HD. BOLT, NC w/lockwasher, L.P. gas attachments (Marvel-Schebler)

1шт.

G13903

SUPPORT - magnetic valve, L.P. gas attachments (Marvel-Schebler)

1шт.

5/16" X 1" HEX. HD. BOLT, NC w/hex. nut, L.P. gas attachments (Marvel-Schebler)

1шт.

G13904

LINE - liquid, tank to fuel line, L.P. gas attachments (Marvel-Schebler)

1шт.

891L-3/8" X 1/4" TEE, includes 2 - 881L 3/8" nuts, L.P. gas attachments (Marvel-Schebler)

1шт.

G13905

LINE - vapor, tank to fuel line, L.P. gas attachments (Marvel-Schebler)

1шт.

890L-3/8" X 1/4" ELBOW, includes 881L 3/8" nut, L.P. gas attachments (Marvel-Schebler)

1шт.

G13906

CABLE - shutoff valve to switch, L.P. gas attachments (Marvel-Schebler)

1шт.

G13909

SUPPORT - side panel (L.P. gas engine), attachments (Marvel-Schebler

1шт.

G16004

BRACKET - mounting, filter and regulator, L.P. gas attachments (Marvel-Schebler)

1шт.

G16005

CLIP - cable, shutoff valve to switch, L.P. gas attachments (Marvel-Schebler)

1шт.

G16006

BUSHING

SPACER - between filter and bracket, L.P. gas attachments (Marvel-Schebler)

2шт.

G16007

LOOM - for G16010 fuel line, L.P. gas attachments (Marvel-Schebler)

1шт.

G16008

LOOM - for G16009 fuel line, L.P. gas attachments (Marvel-Schebler)

1шт.

G16009

LINE - fuel, filter to shutoff valve, L.P. gas attachments (Marvel-Schebler)

1шт.

888L-3/8" X 1/4" UNION, includes 881L 3/8" nut, L.P. gas attachments (Marvel-Schebler)

1шт.

890L-3/8" X 1/4" ELBOW, includes 881L 3/8" nut, L.P. gas attachments (Marvel-Schebler)

1шт.

G16010

LINE - fuel, shutoff valve to regulator, L.P. gas attachments (Marvel-Schebler)

1шт.

889L-3/8" X 1/4" ELBOW, includes 2 - 881L 3/8" nuts, L.P. gas attachments (Marvel-Schebler)

2шт.

G16011

LINE - water, outlet elbow to regulator, L.P. gas attachments (Marvel-Schebler)

1шт.

70FL-1/2" X 3/8" ELBOW, includes 1 - 60FL-1/2" sleeve and 61FL- 1/2" nut, L.P. gas attachments (Marvel-Schebler)

2шт.

G16012

LINE - water, regulator to inlet elbow, L.P. gas attachments (Marvel-Schebler)

1шт.

68FL-1/2" X 3/8" CONNECTOR, includes 1 - 60FL-1/2" sleeve and 1 - 61FL-1/2" nut, L.P. gas attachments (Marvel-Schebler)

1шт.

69FL-1/2" X 3/8" ELBOW, includes 1 - 60FL-1/2" sleeve and 1 - 61FL-1/2" nut, L.P. gas attachments (Marvel-Schebler)

1шт.

G16013

LINE - fuel, regulator to carburetor, L.P. gas attachments (Marvel-Schebler)

1шт.

889L-1/2" X 1/2" ELBOW, includes 1 - 881L-1/2" nut, L.P. gas attachments (Marvel-Schebler)

1шт.

888L-1/2" X 3/8" UNION, includes 1 - 881L-1/2" nut, L.P. gas attachments (Marvel-Schebler)

1шт.

G16014

LINE - fuel, tank tee to filter, L.P. gas attachments (Marvel-Schebler)

1шт.

888L-3/8" X 1/4" UNION, includes 1 - 881L-1/2" nut, L.P. gas attachments (Marvel-Schebler)

1шт.

G16015

LOOM - for G16014 line, L.P. gas attachments (Marvel-Schebler)

1шт.

G16016

NIPPLE - brass pipe, fuel line to shutoff valve (1/4" PT x 1-1/4" long), L.P. gas attachments (Marvel-Schebler)

1шт.

G16017

X

NIPPLE - brass pipe, G16011 water line to regulator (3/8" PT x 1" long), L.P. gas attachments (Marvel-Schebler)

1шт.

G16018

NIPPLE - brass pipe, G16011 water line to elbow (3/8" PT x 1-1/2" long), L.P. gas attachments (Marvel-Schebler)

1шт.
