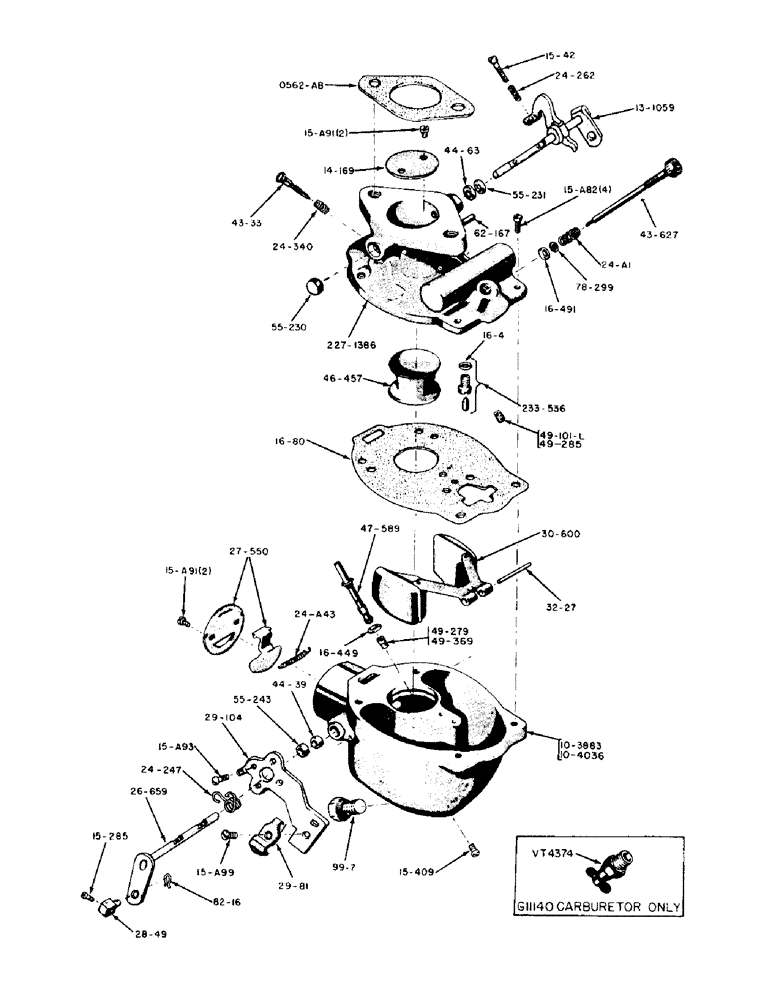

Запчасти Case IH 300-SERIES (024) - SPARK IGNITION ENGINES, G11050 AND G11140 MARVEL-SCHEBLER CARBURETORS (03) - FUEL SYSTEM

10-3883

CARBURETOR BODY ASSEMBLY (Gasoline)

1шт.

10-4036

CARBURETOR BODY ASSEMBLY (LCF)

1шт.

13-1059

THROTTLE SHAFT, throttle stop and lever assembly

1шт.

Part of repair kit P/N 286-1101

1шт.

14-169

THROTTLE FLY

1шт.

15-42

SCREW - throttle stop

1шт.

15-285

SCREW - choker swivel

1шт.

15-409

SCREW - nozzle hole plug

1шт.

15-A82

SCREW - throttle, Serial Range: body-bowl

4шт.

115-A91

SCREW - choker fly and throttle fly

4шт.

Part of repair kit P/N 286-1101

1шт.

15-A93

SCREW - choker bracket

1шт.

15-A99

SCREW - choker bracket clip

1шт.

16-4

GASKET - float valve seat

1шт.

Part of gasket kit P/N VTA690

1шт.

16-80

CARRIER

GASKET - throttle, Serial Range: body-bowl

1шт.

Part of gasket kit P/N VTA690

1шт.

16-449

GASKET - main nozzle

1шт.

Part of gasket kit P/N VTA690

1шт.

16-491

GASKET - high speed needle

1шт.

Part of gasket kit P/N VTA690

1шт.

24-247

SPRING - choker return

1шт.

Part of repair kit P/N 286-1101

1шт.

24-262

SPRING - throttle stop screw

1шт.

24-340

SPRING - idle needle

1шт.

24-A1

SPRING - high speed needle

1шт.

24-A43

SPRING - choker fly flapper

1шт.

26-659

CHOKER SHAFT AND LEVER ASSEMBLY

1шт.

27-550

CHOKER FLY ASSEMBLY

1шт.

28-49

SWIVEL - choker

1шт.

29-81

CLIP - choker bracket

1шт.

29-104

BRACKET - choker

1шт.

29-528

CHOKER BRACKET ASSEMBLY

1шт.

30-600

FLOAT AND LEVER ASSEMBLY

1шт.

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

SHAFT - float lever

1шт.

Part of repair kit P/N 286-1101

1шт.

43-33

NEEDLE - idle adjusting

1шт.

Part of repair kit P/N 286-1101

1шт.

43-627

HIGH SPEED NEEDLE ASSEMBLY

1шт.

44-39

PACKING - choker shaft

1шт.

Part of repair kit P/N 286-1101

1шт.

44-63

PACKING - throttle shaft

1шт.

46-457

VENTURI

1шт.

47-589

NOZZLE ASSEMBLY

1шт.

49-101-L

JET - idle (Gasoline)

1шт.

Part of repair kit P/N 286-1101

1шт.

49-279

JET - power (Gasoline)

1шт.

Part of repair kit P/N 286-1101

1шт.

49-285

JET - idle (LCF)

1шт.

49-369

JET - power (LCF)

1шт.

55-230

CUP - throttle shaft

1шт.

Part of repair kit P/N 286-1101

1шт.

55-231

RETAINER - throttle shaft packing

1шт.

Part of repair kit P/N 286-1101

1шт.

55-243

RETAINER - choker shaft packing

1шт.

Part of repair kit P/N 286-1101

1шт.

62-167

PIN - throttle stop

1шт.

78-299

WASHER - plain, high speed needle

1шт.

80-171

PLUG - idle drilling

1шт.

82-16

COTTER PIN - choker swivel

1шт.

99-7

PLUG - bowl drain (Gasoline)

1шт.

227-1386

THROTTLE BODY ASSEMBLY

1шт.

233-536

FLOAT VALVE, seat and gasket assembly

1шт.

286-1101

REPAIR KIT, Includes: Ref. P/N 13-1059, 115-A91, 24-247, 32-27, 43-33, 44-39, 49-101-L, 49-279, 55-230, 55-231and 55-243, Gasoline

1шт.

G11050

X

CARBURETOR - gasoline (Marvel-Schebler model #TSX-635)

1шт.

G11140

X

CARBURETOR - low cost fuel (Marvel-Schebler model #TSX-680)

1шт.

O562AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.

VT4374

COCK - drain (LCF)

1шт.

VTA690

X

GASKET KIT, Includes: Ref. P/N 16-4, 16-80, 16-449, and 16-491

1шт.
