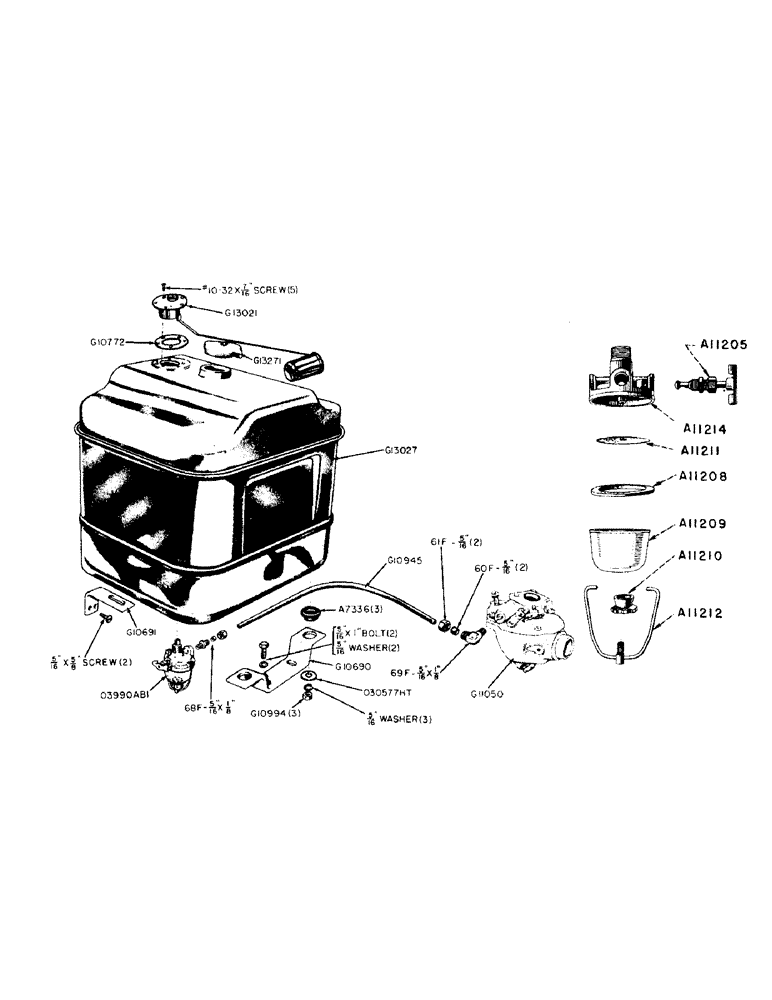

Запчасти Case IH 300-SERIES (022) - SPARK IGNITION ENGINES, MAIN FUEL TANK (03) - FUEL SYSTEM

A7336

CUSHION

BUSHING - rubber, fuel tank support

3шт.

G10690

SUPPORT - front, fuel tank

1шт.

5/16" X 1" HEX. HD. BOLT, NC w/lockwasher

2шт.

G10691

SUPPORT - rear, fuel tank

1шт.

5/16" X 5/8" N.C. HEX. BOLT W/SHAKEPROOF LOCKWASHER

2шт.

G10772

GASKET

- fuel gage sender

1шт.

G10945

LINE - fuel, Serial Range: tank-carburetor

1шт.

68F-5/16" X 1/8" CONNECTOR, includes 60F-5/16" sleeve and 61F- 5/16" nut

1шт.

69F-5/16" X 1/8" ELBOW, includes 60F-5/16" sleeve and 61F-5/16" nut

1шт.

G10994

X

NUT - lock, fuel tank stud

3шт.

G11050

X

CARBURETOR (Marvel-Schebler #10-3882 model TSX-635)

1шт.

G13021

SENDER - fuel gage

1шт.

#10-32 X 7/16" RD. HD. SELF-TAPPING SCREW (Philips hd.)

5шт.

G13027

TANK - fuel

1шт.

G13087

CABLE PULLING GRIP

CABLE - fuel tank to fuel gage

1шт.

G13271

CAP

- fuel tank

1шт.

O3990AB

X

STRAINER - complete fuel

1шт.

O30577HT

X

WASHER - fuel tank support (1-3/8" O.D. x 13/32" I.D. #18 Ga.)

3шт.

A11205

VALVE

- fuel strainer, shutoff, parts for 03770AB1

1шт.

A11208

GASKET

- fuel strainer, parts for 03770AB1

1шт.

A11209

BOWL

- fuel strainer, parts for 03770AB1

1шт.

A11210

ADJUSTER

CUP AND NUT - fuel strainer, parts for 03770AB1

1шт.

A11211

FILTER SCREEN

SCREEN ASSEMBLY - fuel strainer, parts for 03770AB1

1шт.

A11212

BAIL

BALL ASSEMBLY - fuel strainer, parts for 03770AB1

1шт.

A11214

HEAD

- fuel strainer, parts for 03770AB1

1шт.
