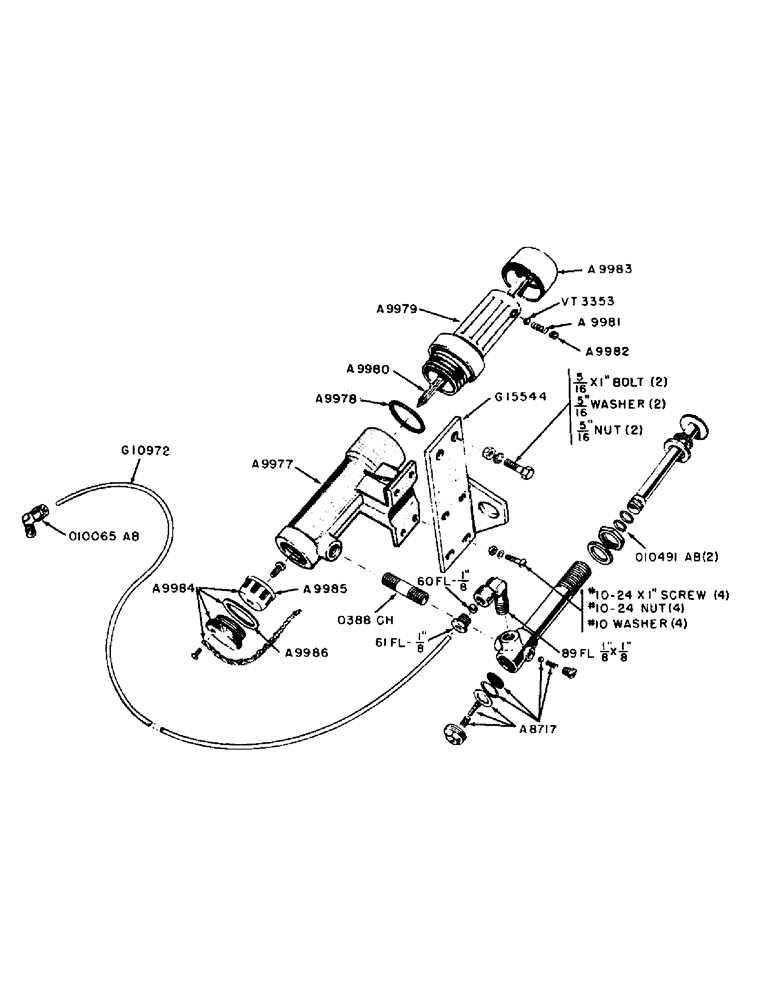

Запчасти Case IH 300-SERIES (065) - DIESEL ENGINE, STARTING FLUID ATTACHMENT (02) - ENGINE

A7444

PUMP - primer, starting fluid

1шт.

A8717

KIT - service, A7444 pump (Includes 2-springs, 1-ball, 1-guide pin, 2-washers, 1-diaphragm, and 2-O10491AB "O" rings)

1шт.

A9977

BODY - lower, dispenser

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

A9978

GASKET - upper, Serial Range: chamber-dispenser

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

A9979

CHAMBER - upper, starting fluid dispenser

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

A9980

PLUNGER - dispenser

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

A9981

SPRING - lock, dispenser plunger

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

A9982

PLUG - plunger lock

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

A9983

KNOB - plunger, dispenser

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

A9984

PLUG - cleaning, with chain, includes A9985 strainer and A9986 gasket

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

A9985

STRAINER - dispenser

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

A9986

GASKET

- strainer

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.

G10972

LINE

TUBE - starting fluid, pump to manifold (1/8" OD x 46")

1шт.

89FL-1/8" X 1/8" ELBOW, includes 60FL - 1/8" sleeve and 61FL- 1/8" nut

1шт.

G15544

BRACKET - mounting, pump and dispenser

1шт.

5/16" X 1" HEX. HD. BOLT, NF w/hex. nut and lockwasher

2шт.

G44010

CABLE - ground, manifold heater (See page 51)

1шт.

O10060AB

DISPENSER - starting fluid, Includes: Ref. P/N A9977, 9978, A9979, A9980, A9981, A9982, A9983, A9984, A9985, A9986 and VT3353

1шт.

#10-24 X 1" MACH. SCREW W/HEX. NUT AND PLAIN WASHER

4шт.

O10065AB

NOZZLE - elbow, starting fluid tube to manifold (1/4" male thrd. to 1/8" tubing)

1шт.

O10491AB

X

"O" RING - primer pump plunger

2шт.

O388CH

NIPPLE - pipe, dispenser to pump (1/8" P.T. x 1-1/2")

1шт.

VT3353

X

BALL - plunger lock (3/16" dia.)

1шт.

Part of starting fluid dispenser P/N 010060AB

1шт.
