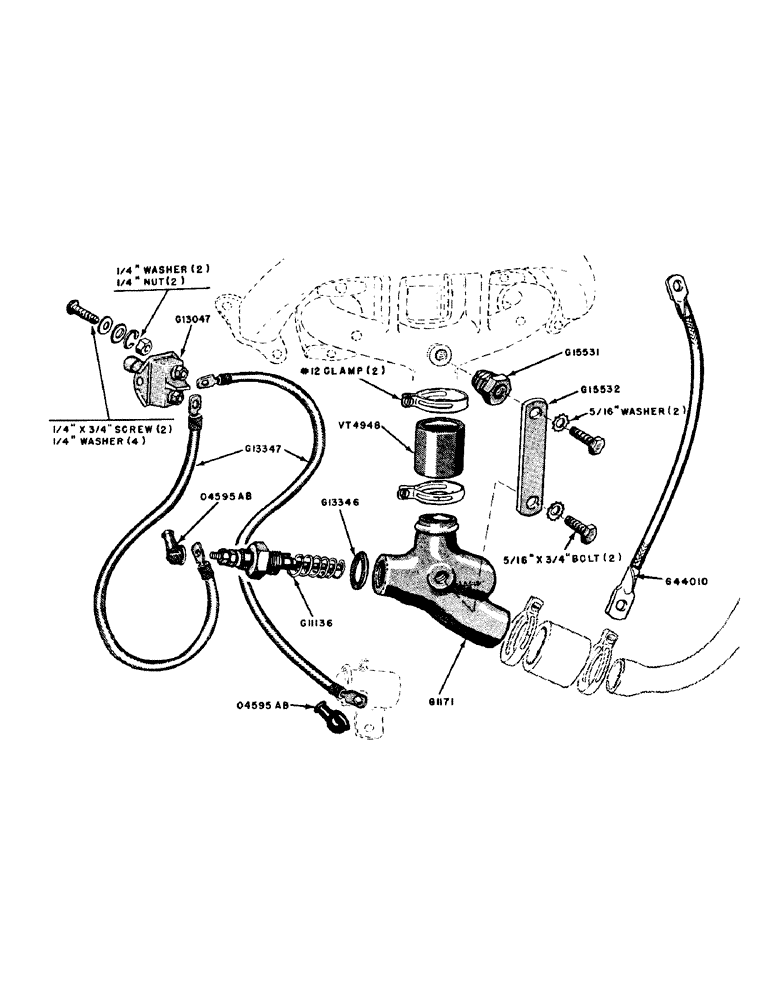

Запчасти Case IH 300-SERIES (064) - DIESEL ENGINE, MANIFOLD HEATING UNIT (02) - ENGINE

G1171

HOUSING - heating unit

1шт.

G11136

UNIT HEATER

UNIT - heating, manifold (Auto-Lite #9000006-00)

1шт.

G13047

SWITCH

- starter, heating unit

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

1/4" PLAIN WASHER

4шт.

G13346

GASKET - heating unit

1шт.

G13347

CABLE - solenoid to starter switch to heating unit

2шт.

G15531

PLUG - ground, Serial Range: strap-manifold

1шт.

G15532

STRAP - ground (See G44010)

1шт.

5/16" X 3/4" HEX. HD. BOLT, NC w/Shakeproof lockwasher (ET #1118)

2шт.

G44010

CABLE - ground (Replaces G15532 w/starting fluid att.)

1шт.

A21753

CAP

NIPPLE - heating unit terminal

2шт.

VT4948

X

HOSE - heating unit housing to manifold (1-3/4" OD)

1шт.

#12 HOSE CLAMP

2шт.
