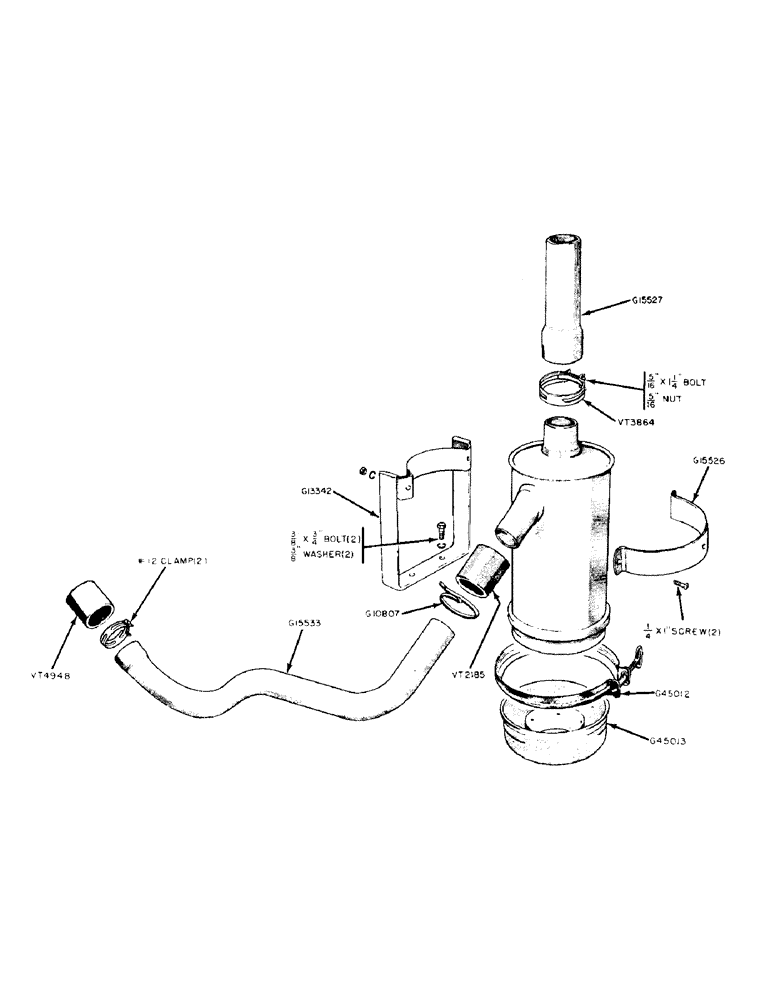

Запчасти Case IH 300-SERIES (051) - DIESEL ENGINE, AIR CLEANER (02) - ENGINE

G10807

CLAMP

- wire hose, Serial Range: cleaner-tube

2шт.

G13341

AIR CLEANER COMPLETE

1шт.

G13342

SUPPORT - air cleaner

1шт.

3/8" X 3/4" HEX. HD. BOLT, NC w/lockwasher

2шт.

G15526

BAND - air cleaner mounting

1шт.

1/4" X 1" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G15527

TUBE - extension, air cleaner

1шт.

G15533

TUBE - air cleaner to heating unit housing

1шт.

G45012

CLAMP - oil cup retaining

1шт.

G45013

CUP - oil

1шт.

VT2185

HOSE

- cleaner to tube (1-1/2" ID x 3" long)

1шт.

VT3864

X

CLAMP - extension pipe to air cleaner

1шт.

5/16" X 1-1/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

VT4948

X

HOSE - tube to heating unit housing (1-3/4" ID x 2" long)

1шт.

#12 HOSE CLAMP

2шт.
