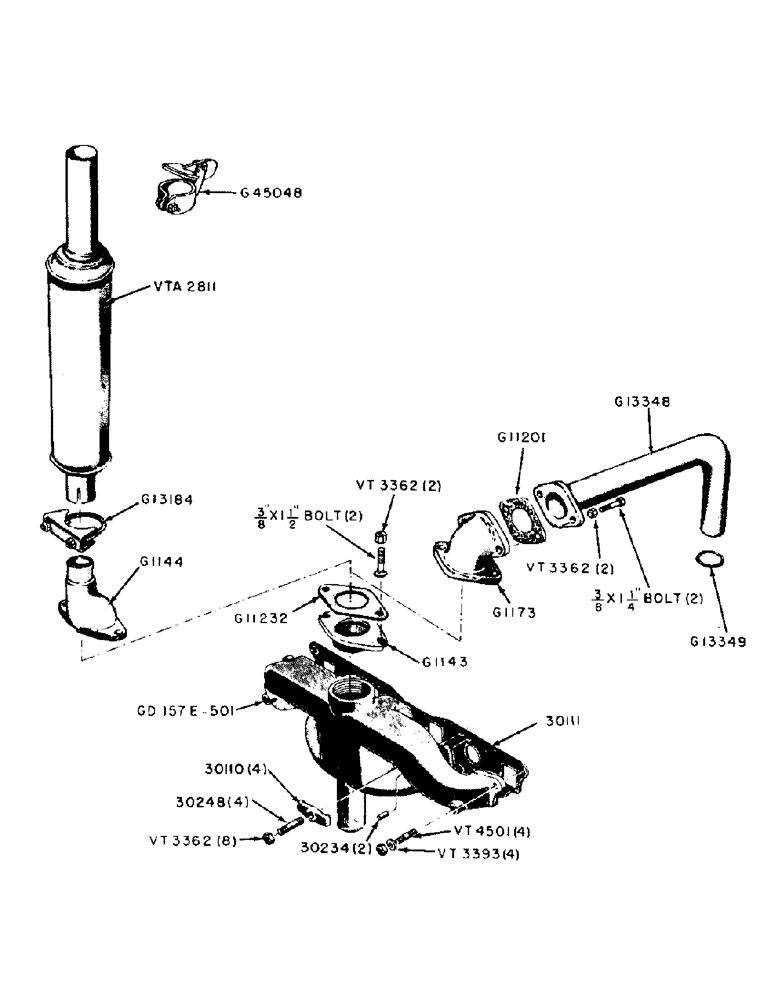

Запчасти Case IH 300-SERIES (050) - DIESEL ENGINE, MANIFOLD AND UPRIGHT MUFFLER (02) - ENGINE

30110

DECAL

CLAMP - manifold

4шт.

30111

COLLAR

GASKET -, Serial Range: manifold-head

1шт.

30234

DOWEL -, Serial Range: manifold-head

2шт.

30248

HYDRAULIC PUMP

STUD - manifold to head (Lower center) (3/8" x 2-1/8")

4шт.

GD157E-501

MANIFOLD - exhaust and intake

1шт.

G1143

COUPLING - exhaust, Serial Range: elbow-manifold

1шт.

G1144

ELBOW - exhaust (Upright muffler)

1шт.

3/8" X 1-1/2" CARRIAGE BOLT

2шт.

G1173

ELBOW - exhaust (Crossover pipe)

1шт.

G11201

GASKET

- crossover, Serial Range: pipe-elbow

1шт.

G11232

GASKET -, Serial Range: elbow-coupling

1шт.

G13184

CLAMP

- upright muffler

1шт.

G13348

PIPE - exhaust, crossover (For underneath muffler)

1шт.

G13349

GASKET - crossover, Serial Range: pipe-flange

1шт.

G45048

CAP

- weather (Extra)

1шт.

VT3362

X

NUT - brass, elbow bolt

2шт.

VT3362

X

NUT - brass, manifold studs

8шт.

VT3393

X

WASHER - plain, manifold stud

4шт.

VT4501

STUD - manifold to head (3/8" x 1-11/16")

4шт.

VTA2811

X

MUFFLER - upright

1шт.
