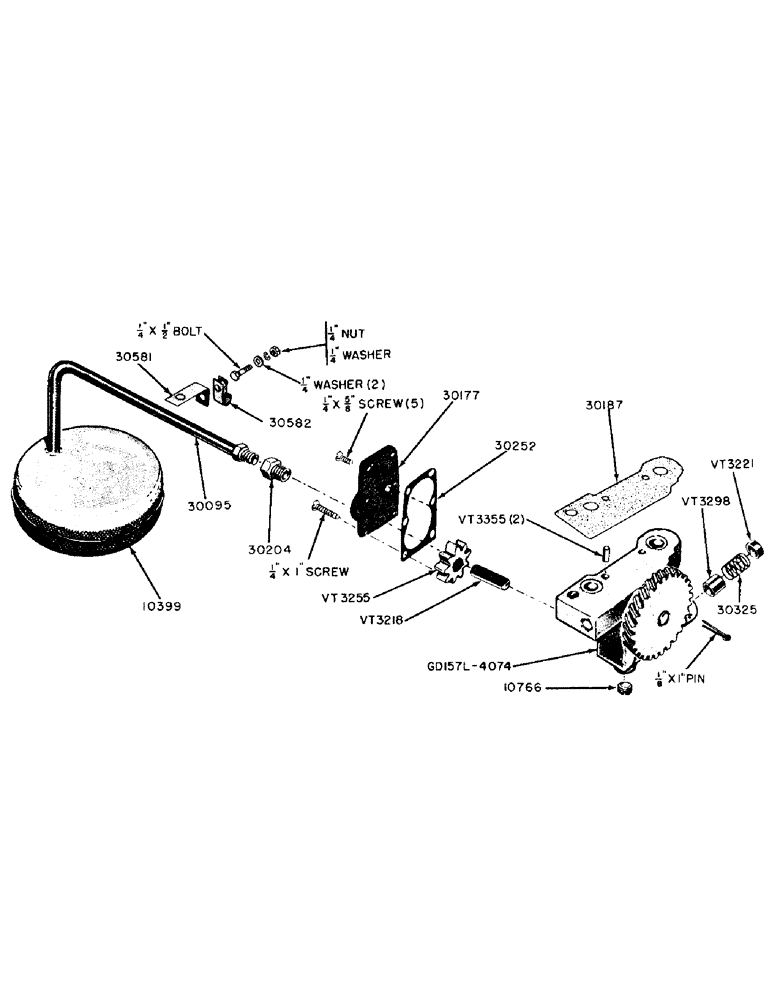

Запчасти Case IH 300-SERIES (048) - DIESEL ENGINE, ENGINE OIL PUMP AND STRAINER (02) - ENGINE

10399

SCREEN ASSEMBLY - oil strainer

1шт.

A10766

BODY

PLUG - pipe, oil pump body

1шт.

30095

TUBE - suction (Includes screen)

1шт.

30177

SHAFT

COVER - oil pump

1шт.

1/4" X 5/8" FLAT HD. MACH. SCREW

5шт.

1/4" X 1" FLAT HD. MACH. SCREW

1шт.

30187

SIEVE

SHIM - oil pump to bearing cap

1шт.

30204

FITTING - inlet, Serial Range: tube-pump

1шт.

30252

TOOL KIT

GASKET - cover to body, oil pump

1шт.

30581

SHAFT SEAL

BRACKET - suction tube

1шт.

30582

CLIP - suction, Serial Range: tube-bracket

1шт.

1/4" X 1/2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

1/4" PLAIN WASHER

2шт.

GD157L-4074

OIL PUMP BODY (Includes inserts plugs and drive gears)

1шт.

VT3218

STUD - idler gear

1шт.

VT3221

X

RETAINER - spring, relief valve

1шт.

1/8" X 1" COTTER PIN

1шт.

VT3255

X

GEAR - idler, oil pump (9T)

1шт.

VT3298

X

VALVE - relief, oil pressure

1шт.

VT3355

PIN - dowel, pump to bearing cap

2шт.
