Запчасти Case IH 300-SERIES (046) - DIESEL ENGINE, VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

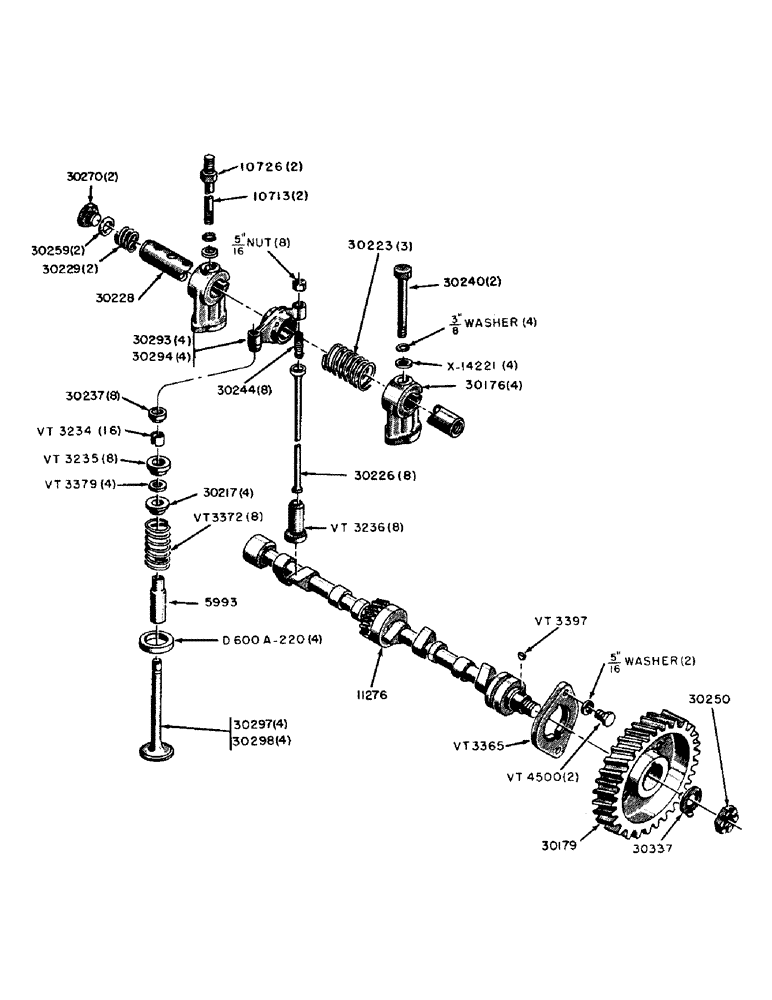

Схема запчастей Case IH 300-SERIES - (046) - DIESEL ENGINE, VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

Артикул

Название

Примечание

Количество

5993

FLANGE

GUIDE - valve stem (Set of 8)

1шт.

10713

PIPE FITTING,16 - 18 SAE

STUD - rocker arm shaft support to head

2шт.

3/8" LOCKWASHER

2шт.

10726

OLIVE

NUT - rocker arm shaft, Serial Range: support-head

2шт.

3/8" LOCKWASHER

2шт.

112726

COTTER PIN,1/16" x 1/2"

CAMSHAFT

1шт.

30170

GUIDE - valve stem (Use 5993)

1шт.

30176

SUPPORT - rocker arm shaft

4шт.

30179

SEALING RING COLLAR

GEAR - timing, camshaft

1шт.

30217

RETAINER - gasket, intake valve stem

4шт.

30223

RIGID TUBE

SPRING - rocker arm shaft (Long)

3шт.

30226

ROD - push

8шт.

30228

BULB

SHAFT - rocker arm

1шт.

30229

BULB

SPRING - rocker arm shaft (Short)

2шт.

30237

CAP - valve stem

8шт.

30240

SCREW - rocker arm shaft, Serial Range: support-head

2шт.

3/8" LOCKWASHER

2шт.

30244

TUBE

SCREW - adjusting, rocker arm

8шт.

5/16" NF HEX. JAM NUT

8шт.

NLS

NO LONGER SERVICED

- timing, Serial Range: gear-camshaft

1шт.

NLS

NO LONGER SERVICED

- plug, rocker arm shaft

2шт.

30270

LEVER

PLUG - oil, rocker arm shaft

2шт.

30293

PAD

ARM - rocker, R.H.

4шт.

30294

HYD CONNECTOR

ARM - rocker, L.H.

4шт.

30297

VALVE - intake

4шт.

30298

PLATE

VALVE - exhaust

4шт.

30337

LOCK - nut, timing gear

1шт.

D600A-220

INSERT - exhaust valve seat

4шт.

X-14221

WASHER - copper, rocker arm support screws and studs

4шт.

VT3234

X

LOCK - retainer, valve spring

16шт.

VT3235

X

RETAINER - valve spring

8шт.

VT3236

X

TAPPET - valve

8шт.

VT3365

X

PLATE - thrust, camshaft

1шт.

VT3372

SPRING

- valve

8шт.

VT3379

X

GASKET - intake valve stem

4шт.

VT3397

KEY - timing, Serial Range: gear-crankshaft

1шт.

VT4500

X

SCREW - thrust plate (5/16" x 1/2")

2шт.

5/16" SHAKEPROOF LOCKWASHER

2шт.

Выбрано товаров: 38
