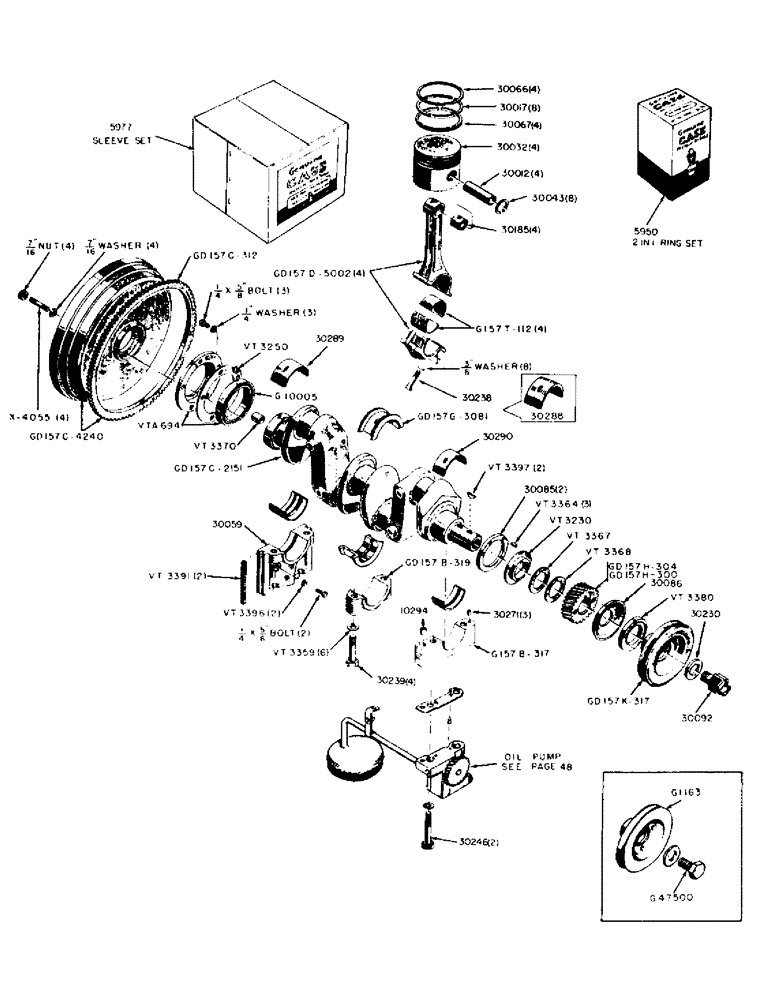

Запчасти Case IH 300-SERIES (044) - DIESEL ENGINE, CRANKSHAFT AND FLYWHEEL, PISTONS AND CONNECTING RODS (02) - ENGINE

10294

BUSHING

DOWEL - ring, front bearing, Serial Range: cap-block

1шт.

30059

PRESSURE PIPE

CAP - rear bearing, crankshaft

1шт.

30085

WASHER - thrust, crankshaft

2шт.

30086

THROWER - oil, crankshaft

1шт.

30092

JAW - starting

1шт.

2974055

BULB,C5W, 24V, 5W

WASHER - starting jaw

1шт.

30239

SCREW - center and rear bearing caps to block (1/2" x 2-1/2")

4шт.

30246

SCREW - front bearing cap to block (1/2" x 3-1/2")

2шт.

30271

DOWEL - front and center bearing caps

3шт.

NLS

NO LONGER SERVICED

LINERS - crankshaft rear bearing, top and bottom half (Standard)

1шт.

30289-.002

LINERS - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

30289-.020

LINERS - crankshaft rear bearing, top and bottom half (.020" undersize)

1шт.

30289-.040

LINERS - crankshaft rear bearing, top and bottom half (.040" undersize)

1шт.

30289-.060

LINERS - crankshaft rear bearing, top and bottom half (.060" undersize)

1шт.

30290

HOSE

LINERS - crankshaft front bearing, top and bottom half (Standard)

1шт.

30290-.002

LINERS - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

30290-.020

LINERS - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

30290-.040

LINERS - crankshaft front bearing, top and bottom half (.040" undersize)

1шт.

30290-.060

LINERS - crankshaft front bearing, top and bottom half (.060" undersize)

1шт.

G157B-317

CAP - front bearing, crankshaft

1шт.

GD157B-319

CAP - center bearing, crankshaft

1шт.

GD157C-312

GEAR - ring, flywheel (See GD157C-4240)

1шт.

GD157C-424

FLYWHEEL (Use GD157C-4240)

1шт.

GD157C-2151

CRANKSHAFT (Includes pilot bushing)

1шт.

GD157C-4240

FLYWHEEL (Includes ring gear)

1шт.

GD157G-3081

LINERS - crankshaft center bearing, top and bottom half (Standard) See note

1шт.

GD157G-3081-.002

LINERS - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

GD157G-3081-.030

LINERS - crankshaft center bearing, top and bottom half (.030" undersize)

1шт.

GD157G-3081-.040

LINERS - crankshaft center bearing, top and bottom half (.040" undersize)

1шт.

GD157G-3081-.060

LINERS - crankshaft center bearing, top and bottom half (.060" undersize)

1шт.

GD157H-304

GEAR - timing, crankshaft (See note)

1шт.

GD157K-317

PULLEY - fan drive (See G11119M)

1шт.

X-4055

STUD - flywheel to crankshaft (7/16" x 1-7/8")

4шт.

7/16" NF HEX. NUT AND LOCKWASHER

4шт.

G1163

PULLEY - fan drive (See G11119M)

1шт.

G10005

X

OIL SEAL - rear, crankshaft

1шт.

G11119M

PULLEY - fan drive (Includes G47500 nut) For front mounted hydraulic equipment (Mchy. Item)

1шт.

G47500

SCREW - fan drive pulley (See G11119M)

1шт.

VT3230

X

PLATE - thrust, crankshaft

1шт.

VT3250

X

GASKET - rear oil seal retainer

1шт.

VT3359

WASHER - bearing cap screw

6шт.

VT3364

X

PIN - thrust washer

3шт.

VT3367

X

SHIM - thrust plate, crankshaft (.002")

1шт.

VT3368

X

SHIM - thrust plate, crankshaft (.008")

1шт.

VT3370

X

BUSHING - pilot, crankshaft

1шт.

VT3380

SEAL - dust, fan drive pulley

1шт.

VT3391

PACKING

- rear bearing cap

2шт.

VT3396

X

GASKET - copper, oil seal, Serial Range: retainer-cap

2шт.

VT3397

KEY - timing gear and fan drive, Serial Range: pulley-crankshaft

2шт.

VTA694

X

RETAINER - oil seal, crankshaft rear

1шт.

1/4" X 5/8" NC HEX. HD. BOLT

5шт.

1/4" LOCKWASHER

3шт.

30288

LINERS - crankshaft center bearing, top and bottom half (Standard)

1шт.

30288-.002

LINERS - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

30288-.020

LINERS - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

30288-.040

LINERS - crankshaft center bearing, top and bottom half (.040" undersize)

1шт.

30288-.060

LINERS - crankshaft center bearing, top and bottom half (.060" undersize)

1шт.

GD157H-300

GEAR - timing, crankshaft

1шт.

5950

KIT - piston ring (2 in 1 chrome), pistons and connecting rods

1шт.

5960

SPARE PART

PIN PISTON (Set of 4), pistons and connecting rods

1шт.

5977

KIT

CYLINDER SLEEVE AND PISTON KIT, pistons and connecting rods

1шт.

30012

PIN - piston (See 5960), connecting rods

4шт.

30017

WASHER

RING - piston (2nd and 3rd groove) See 5950, connecting rods

8шт.

30032

PRESSURE PIPE

PISTON (See 5977), connecting rods

4шт.

30043

CIRCLIP

RING - retaining, piston pin, connecting rods

8шт.

30066

SEALING RING COLLAR

RING - piston (1st groove) See 5950, connecting rods

4шт.

30067

RING - piston (4th groove) See 5950, connecting rods

4шт.

30185

BUSHING - connecting rod, pistons

4шт.

30238

FLASHER UNIT

BOLT - connecting rod, pistons

8шт.

3/8" SHAKEPROOF LOCKWASHER, pistons and connecting rods

8шт.

G157D-5002

ROD - connecting (Includes bushing and bolts), pistons

4шт.

G157T-112

LINERS - connecting rod bearing, top and bottom half (Standard), pistons

4шт.

G157T-112-.002

LINERS - connecting rod bearing, top and bottom half (.002" undersize), pistons

4шт.

G157T-112-.020

LINERS - connecting rod bearing, top and bottom half (.020" undersize), pistons

4шт.

G157T-112-.040

LINERS - connecting rod bearing, top and bottom half (.040" undersize), pistons

4шт.

G157T-112-.060

LINERS - connecting rod bearing, top and bottom half (.060" undersize), pistons

4шт.
