Запчасти Case IH 300-SERIES (042) - DIESEL ENGINE, CYLINDER HEAD, BLOCK, TIMING GEAR COVER, FUEL INJ. PUMP DRIVE HOUSING, AND OIL PAN (02) - ENGINE

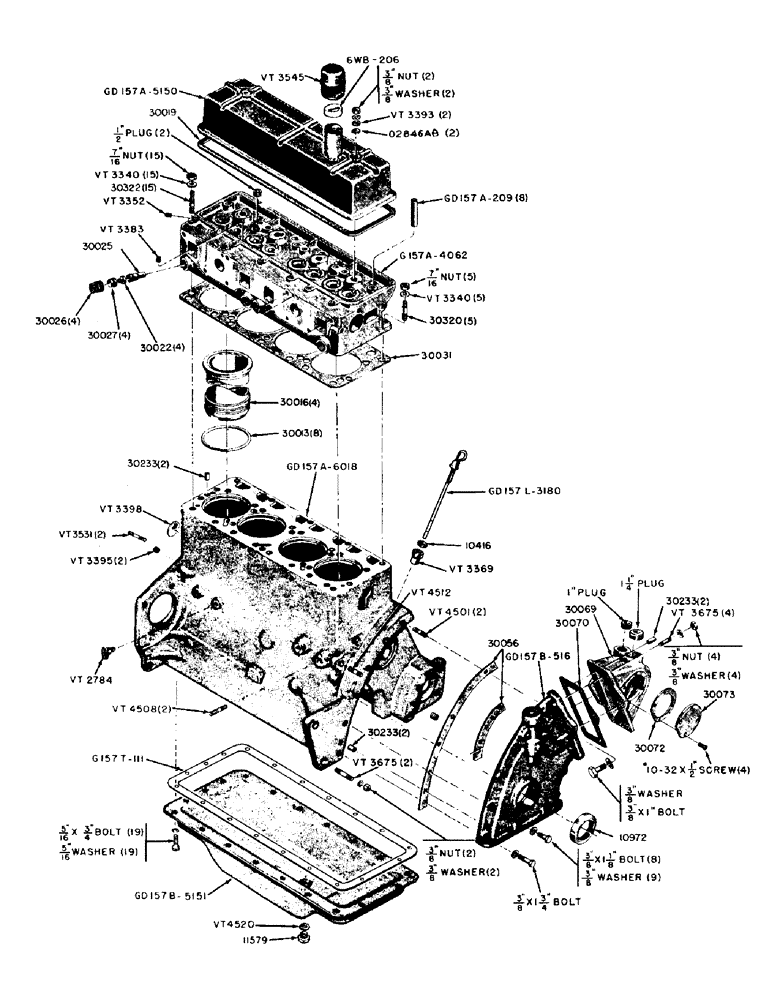

Схема запчастей Case IH 300-SERIES - (042) - DIESEL ENGINE, CYLINDER HEAD, BLOCK, TIMING GEAR COVER, FUEL INJ. PUMP DRIVE HOUSING, AND OIL PAN (02) - ENGINE

Артикул

Название

Примечание

Количество

30019

SPRING

-, Serial Range: cover-head

1шт.

30022

SPRING

CAP - energy cell

4шт.

30025

BODY - energy cell

4шт.

30026

RIGID TUBE

PLUG - retainer, energy cell

4шт.

30027

PRESSURE PIPE

RETAINER - energy cell

4шт.

30031

PRESSURE PIPE

GASKET - cylinder head

1шт.

30320

STUD - cylinder head to block (7/16" x 2-3/8")

5шт.

7/16" NF HEX. NUT

5шт.

30322

STUD - cylinder head to block (7/16" x 4-1/2")

15шт.

7/16" NF HEX. NUT

15шт.

GD157A-209

TUBE - push rod

8шт.

GD157A-4062

HEAD - cylinder, complete (Includes guides, inserts, tubes, studs, energy cells and plugs)

1шт.

1/2" SQ. HD. PIPE PLUG

2шт.

1/2" CTSK. HD. PIPE PLUG

1шт.

GD157A-5150

COVER -- cylinder head

1шт.

3/8" NC HEX. NUT AND LOCKWASHER

2шт.

6WB-206

BAFFLE - oil filler neck

1шт.

O2846AB

X

GASKET - cylinder head cover screws

2шт.

VT3340

X

WASHER - cylinder head stud

20шт.

VT3352

X

PLUG - pipe, oil gallery

1шт.

VT3383

X

PLUG - fuse

1шт.

VT3393

X

WASHER - plain, cover nut (13/32" ID x 3/4" OD x 1/16")

2шт.

VT3545

X

CAP - oil filler and breather

1шт.

10416

WASHER - felt, oil gage rod, cylinder block

1шт.

30013

PULLEY

PACKING - cylinder sleeve, block

8шт.

30016

SLEEVE

- cylinder, block

4шт.

30233

PIN - dowel, cylinder, Serial Range: head-block

2шт.

GD157A-6018

CYLINDER BLOCK ASSEMBLY (Includes bearing, caps, screws, studs, plugs and pins)

1шт.

GD157L-3180

ROD - oil gage, includes felt washer, cylinder block

1шт.

VT2784

X

COCK - water drain, cylinder block

1шт.

VT3369

SUPPORT - oil gage rod, cylinder block

1шт.

VT3395

X

PLUG - pipe, oil gallery, cylinder block

2шт.

VT3398

X

PLUG - rear, camshaft bearing, cylinder block

1шт.

VT3531

X

STUD - block to torque tube (5/8" x 3"), cylinder block

2шт.

VT4508

STUD - generator bracket (3/8" x 1-1/4"), cylinder block

2шт.

VT4512

X

STUD - generator adjusting strap (3/8" x 1"), cylinder block

1шт.

10972

HOSE,Female, 1.5-2.5 mm2

OIL SEAL - front, crankshaft, timing gear cover

1шт.

30056

O-RING

GASKET - timing gear, Serial Range: cover-block

1шт.

30233

DOWEL - timing gear, Serial Range: cover-block

2шт.

GD157B-516

COVER - timing gear

1шт.

3/8" X 1-1/8" NC HEX. HD. BOLT W/LOCKWASHER, timing gear cover

8шт.

3/8" X 1-3/4" NC HEX. HD. BOLT W/LOCKWASHER, timing gear cover

1шт.

VT3675

X

STUD - timing gear cover to block (3/8" x 1-1/2")

2шт.

3/8" NC HEX. NUT AND LOCKWASHER, timing gear cover

2шт.

VT4501

STUD - timing gear cover to block (3/8" x 1-11/16")

2шт.

3/8" NC HEX. NUT AND LOCKWASHER, timing gear cover

2шт.

30069

PULLEY

HOUSING - fuel injection pump drive housing

1шт.

3/8" X 1" NC HEX. HD. BOLT W/LOCKWASHER, fuel injection pump drive housing

1шт.

1" CTSK. HD. PIPE PLUG, fuel injection pump drive housing

1шт.

1-1/4" CTSK. HD. PIPE PLUG, fuel injection pump drive housing

1шт.

30070

PULLEY

GASKET - housing to timing gear cover, fuel injection pump drive housing

1шт.

30072

GASKET - cover, fuel injection pump drive housing

1шт.

30073

COVER - gear housing, fuel injection pump drive gear

1шт.

#10-32 X 1/2" FLAT HD. MACH. SCREW, fuel injection pump drive gear

4шт.

30233

DOWEL - housing to timing gear cover, fuel injection pump drive gear

2шт.

VT3675

X

STUD - housing to gear cover (3/8" x 1-1/2"), fuel injection pump drive gear

4шт.

3/8" NC HEX. NUT AND LOCKWASHER, fuel injection pump drive gear

4шт.

11579

NUT

PLUG - drain, oil pan

1шт.

G157T-111

KIT - oil pan gasket (Includes VT4520 drain plug gasket)

1шт.

GD157B-5151

OIL PAN COMPLETE

1шт.

5/16" X 3/4" NC HEX. HD. BOLT W/LOCKWASHER, oil pan

19шт.

VT4520

X

GASKET - drain plug, oil pan

1шт.

Выбрано товаров: 62
