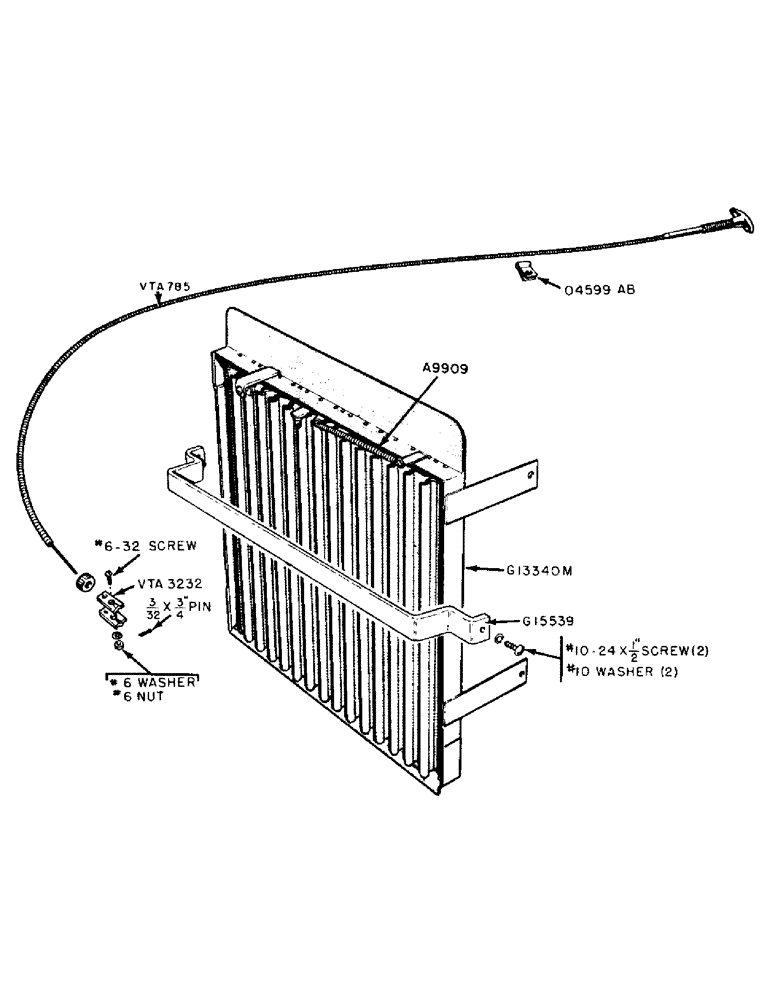

Запчасти Case IH 300-SERIES (020) - SPARK IGNITION ENGINES, RADIATOR SHUTTER (02) - ENGINE

A9909

SPRING - tension, radiator shutter

1шт.

G13340M

SHUTTER ASSEMBLY, includes controls (MChy. item)

1шт.

G15539

BAR - spacer, front, side panel

1шт.

#10-24 X 1/2" RD. HD. MACH. SCREW W/LOCKWASHER

2шт.

O4599AB

CLIP - control, Serial Range: cable-manifold

1шт.

VTA785

CABLE - shutter control

1шт.

3/32" X 3/4" COTTER PIN

1шт.

VTA3232

LINK - connecting, control rod to shutter (Includes links and #6-32 x 1/4" hex. hd. cap screw w/hex. nut and Shakeproof lockwasher)

1шт.
