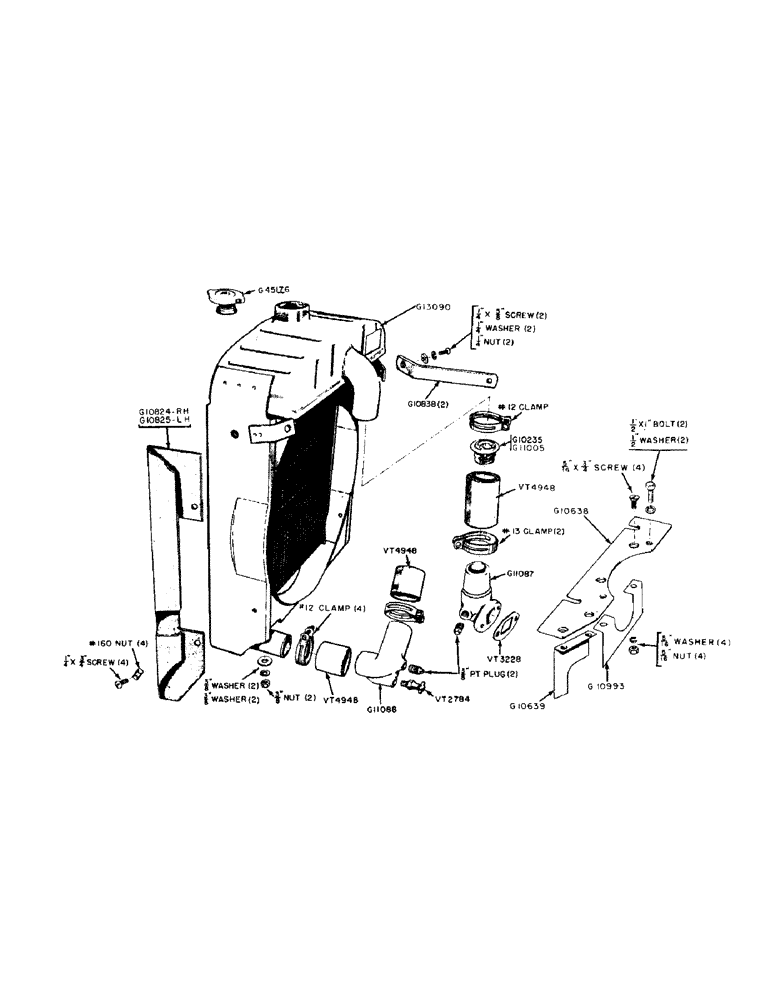

Запчасти Case IH 300-SERIES (019) - SPARK IGNITION ENGINES, RADIATOR AND CONNECTIONS (02) - ENGINE

G1153

ELBOW - water outlet (Use G11087)

1шт.

G1154

ELBOW - water inlet, lower (Use G11088)

1шт.

G10235

THERMOSTAT

(148 to 153 degrees F) See G11005

1шт.

G10638

BRACKET - mounting, Serial Range: radiator-housing

1шт.

1/2" X 1" N.C. HEX. HD. BOLT W/LOCKWASHER

2шт.

G10639

DEFLECTOR - side

1шт.

5/16" X 3/4" FLAT HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G10824

BAFFLE - R.H., radiator air circulation

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW W/#160 SPEED NUT

2шт.

G10825

BAFFLE - L.H., radiator air circulation

1шт.

1/4" x 3/4" RD. HD. MACH. SCREW W/#160 SPEED NUT

2шт.

G10838

BRACE - radiator to engine head

2шт.

1/4" X 5/8" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G10993

DEFLECTOR - lower center

1шт.

5/16" X 3/4" FLAT HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G11005

CASE

THERMOSTAT - low cost fuel (177 to 182 degrees F) See G10235

1шт.

G11087

ELBOW - water outlet, (Includes 3/8" pipe plug)

1шт.

G11088

ELBOW - water inlet, (Includes 3/8" pipe plug)

1шт.

G13090

RADIATOR - (Less cap)

1шт.

3/8" N.C. HEX. NUT, lockwasher and plain washer

2шт.

G45176

CAP

- radiator (4 lb. pressure valve type)

1шт.

VT137

ELBOW - water outlet (Use G11087)

1шт.

VT526

ELBOW - radiator inlet, lower (Use G11088)

1шт.

VT2784

X

VALVE - drain, lower elbow

1шт.

VT3228

X

GASKET - outlet elbow

1шт.

VT4948

X

HOSE - upper elbow

1шт.

#12 HOSE CLAMP W/BOLT AND NUT

1шт.

#13 HOSE CLAMP W/BOLT AND NUT

2шт.

VT4948

X

HOSE - lower elbow

2шт.

#12 HOSE CLAMP W/BOLT AND NUT

4шт.
