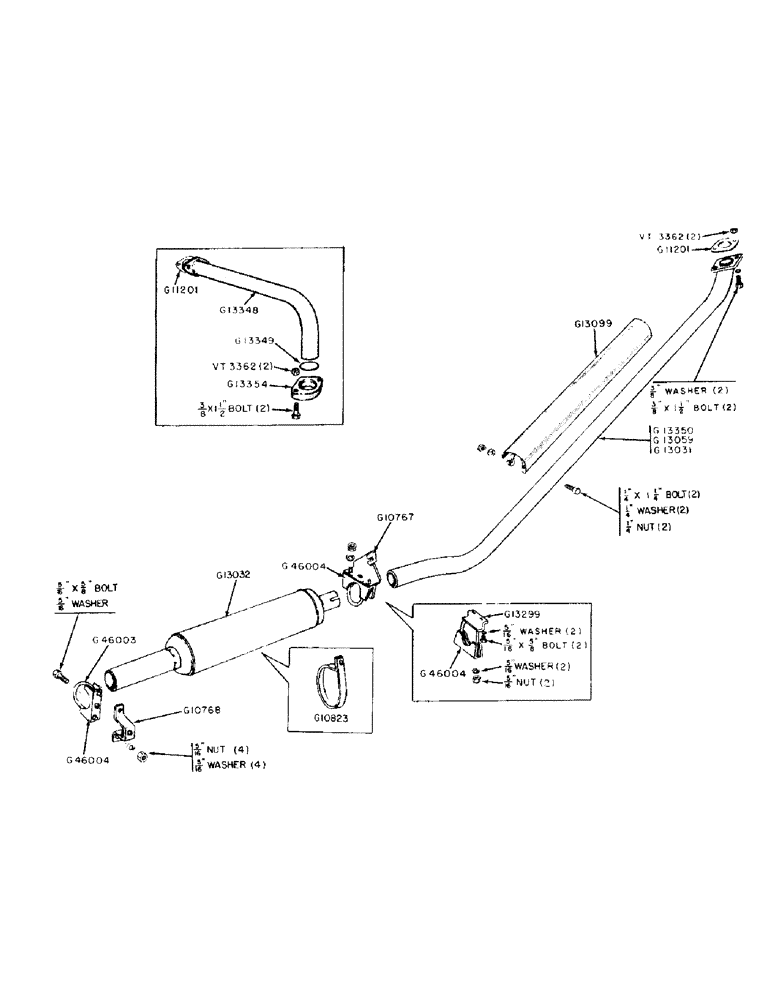

Запчасти Case IH 300-SERIES (017) - SPARK IGNITION ENGINES, UNDERNEATH MUFFLER AND EXHAUST PIPE (02) - ENGINE

G10767

BRACKET

- front, muffler mounting (311 gen. purpose spark ignition)

1шт.

G10768

BRACKET

- rear, muffler (311 gen. purpose)

1шт.

G10823

BRACKET - rear, muffler mounting (300, 310 utility)

1шт.

5/16" X 5/8" HEX. HD. BOLT, NC w/lockwasher

1шт.

G11201

GASKET

- pipe to exhaust manifold

2шт.

G13031

PIPE

- exhaust, w/flange (311 gen. purpose spark ignition)

1шт.

3/8" X 1-1/2" HEX. HD. BOLT, NC

2шт.

G13032

MUFFLER

- underneath type

1шт.

G13059

PIPE - exhaust, w/flange (310 utility spark ignition)

1шт.

3/8" X 1-1/2" HEX. HD. BOLT, NC

2шт.

G13099

SHIELD - exhaust pipe

1шт.

1/4" X 1-1/4" CARR. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

G13299

BRACKET - muffler mounting, w/"U" bolt (300, 310 utility)

1шт.

5/16" X 5/8" HEX. HD. BOLT, NC w/lockwasher

2шт.

G13348

PIPE - exhaust, crossover (300 Diesel utility)

1шт.

G13349

GASKET - crossover pipe to flange (300 Diesel Utility)

1шт.

G13350

PIPE - exhaust, w/flange (300 Diesel utility)

1шт.

3/8" X 1-1/2" HEX. HD. BOLT, NC

2шт.

G13354

FLANGE - sealing, crossover pipe to exhaust pipe (300 Diesel Utility)

1шт.

G46003

U-BOLT

"U" BOLT - muffler clamp (311 gen. purpose spark ignition)

2шт.

5/16" HEX. NUT, NC w/lockwasher

4шт.

G46004

CLAMP

- muffler (1 for 300, 310 utility)

2шт.

VT3362

X

NUT - brass, exhaust pipe bolts

2шт.
