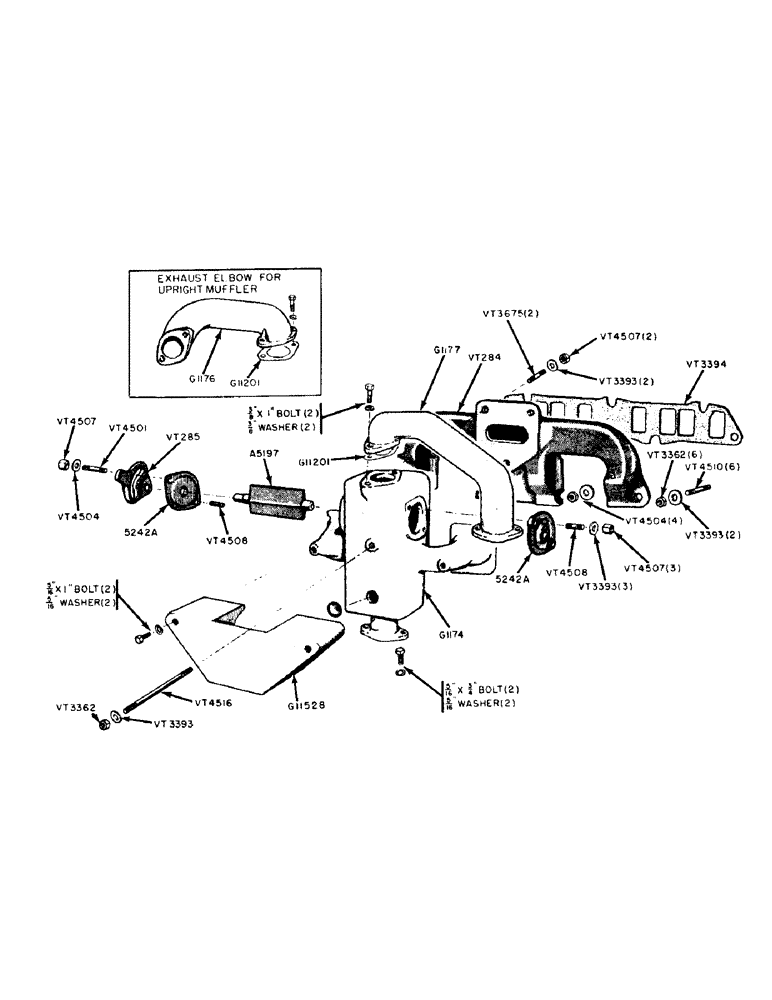

Запчасти Case IH 300-SERIES (016) - SPARK IGNITION ENGINES, LOW COST FUEL MANIFOLD (02) - ENGINE

A5197

VALVE - heat control

1шт.

G1174

MANIFOLD - intake

1шт.

5/16" X 3/4" BOLT, hex. head UNC w/lockwasher

2шт.

G1176

ELBOW - exhaust (Upright muffler)

1шт.

G1177

ELBOW - exhaust (Underneath muffler)

1шт.

3/8" X 1" HEX. HEAD BOLT NC W/LOCKWASHER

2шт.

G11201

GASKET

- exhaust, Serial Range: elbow-manifold

1шт.

G11528

HEAT BOX ASSEMBLY

1шт.

5/16" X 1" BOLT HEXAGON HEAD UNC W/LOCKWASHER

2шт.

G13184

CLAMP

- muffler (See page 15)

1шт.

5242A

FLANGE - heat control

2шт.

VT284

MANIFOLD - exhaust

1шт.

3/8" X 1" BOLT HEX. HEAD UNC W/LOCKWASHER

2шт.

VT285

LEVER - heat control valve

1шт.

VT3362

X

NUT - hexagon (Brass) 3/8" - 16

7шт.

VT3393

X

WASHER - 3/4" OD x 13/32" ID x 1/16"

8шт.

VT3394

X

GASKET - manifold

1шт.

VT3399

PLUG - Hubbard (1" diameter)

2шт.

VT3675

X

STUD - 3/8" x 1-1/2"

2шт.

VT4501

STUD - 3/8" x 1-11/16"

1шт.

VT4504

WASHER

- 7/8" OD x 13/32" ID x 1/8"

5шт.

VT4507

NUT - hexagon (Brass)

6шт.

VT4508

STUD - 3/8" - 16 x 1-1/4"

3шт.

VT4510

X

STUD - manifold 3/8" x 1-1/4"

6шт.

VT4516

X

STUD - 3/8" - 16 x 6-3/8"

1шт.

VTA2811

X

MUFFLER - exhaust (See page 15)

1шт.
