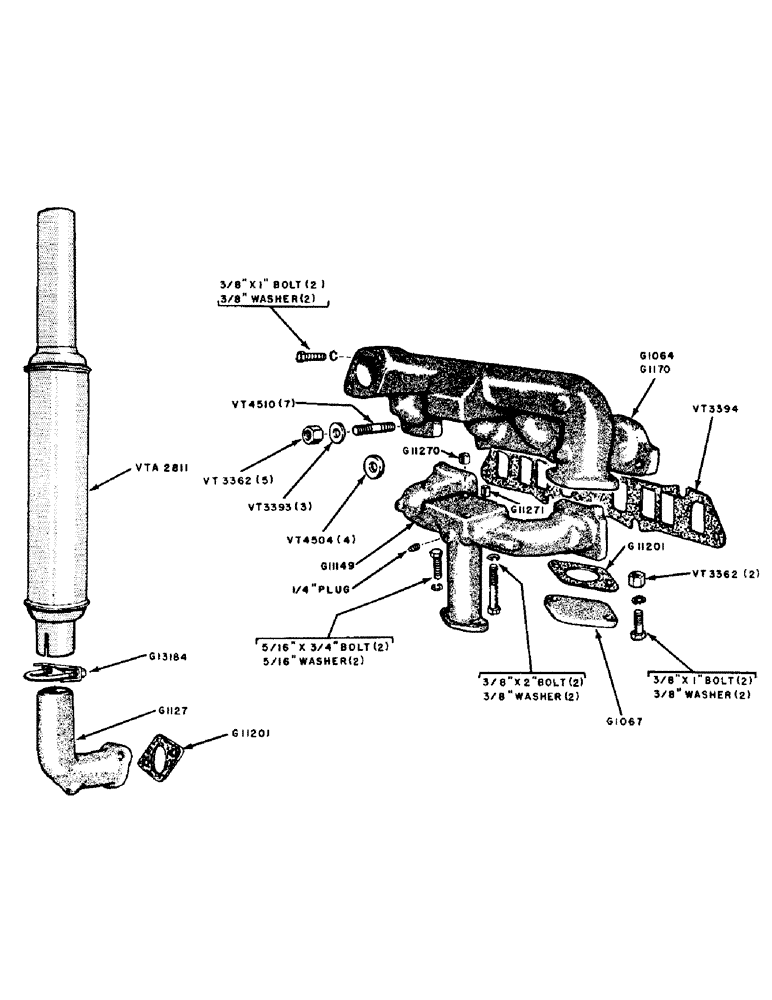

Запчасти Case IH 300-SERIES (015) - SPARK IGNITION ENGINES, MANIFOLD AND UPRIGHT MUFFLER (02) - ENGINE

G1064

MANIFOLD

- exhaust (See G1170)

1шт.

G1066

X

MANIFOLD - intake (Use G11149)

1шт.

G1067

COVER - exhaust manifold opening

1шт.

3/8" X 1" HEX. HEAD BOLT, UNC w/lockwasher

2шт.

G1127

ELBOW

- exhaust muffler, upright

1шт.

3/8" X 1" HEX. HEAD BOLT UNC W/LOCKWASHER

2шт.

G1170

MANIFOLD - exhaust (L.P.G.)

1шт.

G1178

X

MANIFOLD - intake (Use G11149)

1шт.

G11149

MANIFOLD

- intake, includes 1/4" std. sq. hd. pipe plug

1шт.

3/8" X 2" HEX. HD. BOLT N.C. W/LOCKWASHER

2шт.

G11201

GASKET

- exhaust manifold elbow and opening cover

2шт.

G11270

SPACER

- inner, manifold (L.P.G.)

1шт.

G11271

SPACER

- outer, manifold (L.P.G.)

1шт.

G13184

CLAMP

- muffler (2")

1шт.

VT3362

X

NUT - hex. (Brass 3/8" - 16)

7шт.

VT3393

X

WASHER - plain (3/4" O.D. x 13/32" I.D. x 1/16")

3шт.

VT3394

X

GASKET - manifold, exhaust and intake

1шт.

VT4504

WASHER

- plain (7/8" O.D. x 13/32" I.D. x 1/8")

4шт.

VT4510

X

STUD - manifold to cylinder head (3/8" x 1-3/4")

7шт.

VTA2811

X

MUFFLER - upright

1шт.
