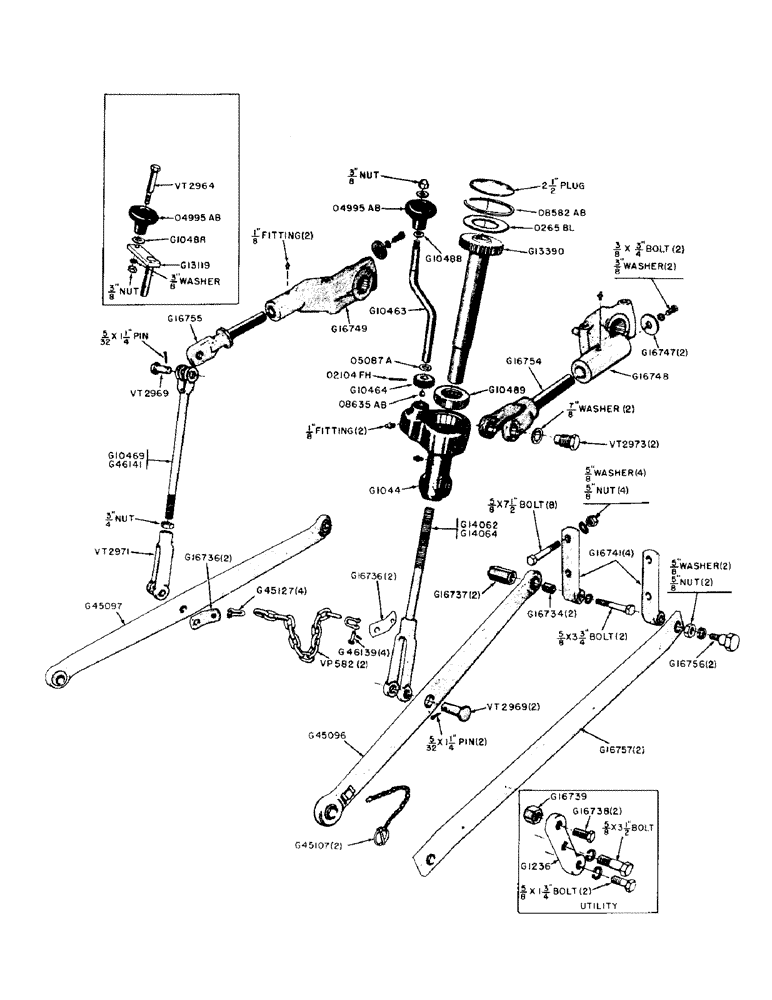

Запчасти Case IH 300-SERIES (164) - THREE-POINT HITCH, SWINGING DRAFT ARMS (09) - CHASSIS

G1044

HOUSING - adjusting screw

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

1/8" STR. SAFETY VENT FITTING (Lincoln #5099)

1шт.

2-1/2" Welch plug

1шт.

G1236

BRACKET - inside, draft arm mounting (Utility)

2шт.

5/8" X 1-3/4" NF HEX. HD. BOLT W/LOCKWASHER

2шт.

5/8" X 3-1/2" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G10463

CRANK - adjusting screw (Gen. purpose)

1шт.

3/8" - 16 HEX. ACORN NUT

1шт.

G10464

GEAR - adjusting screw crank

1шт.

G10469

YOKE

LINK - lift, LH (Utility)

1шт.

3/4" NF HEX. JAM NUT

1шт.

G10488

WASHER - thrust, adjusting screw crank

1шт.

G10489

THRUST BEARING

BEARING - thrust, adjusting screw gear (Schotz #1219)

1шт.

G13119

CRANK - adjusting screw (Utility)

1шт.

G13390

TUBE

GEAR - adjusting screw w/tube

1шт.

G14062

LINK

- lift, adjusting screw (Utility)

1шт.

G14064

ROD

LINK - lift, adjusting screw (Gen. purpose)

1шт.

G16734

BUSHING - pivot, draft arm

2шт.

G16736

LINK - chain to draft arm and draw bar support

4шт.

G16737

SPACER - axle housing stud to draft arm (Gen. purpose)

2шт.

5/8" X 3-3/4" NF HEX. HD. BOLT W/LOCKWASHER

2шт.

G16738

BOLT - draft arm (5/8" x 1-1/2") (Utility)

2шт.

G16739

SPACER - mounting bracket (Utility)

4шт.

G16741

X

BRACKET - outer, draft arm and stabilizer mounting

4шт.

5/8" X 7-1/2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

8шт.

G16747

WASHER - retainer, swivel end to lift arm (2" OD x 13/32" ID #10 ga.)

2шт.

3/8" X 3/4" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G16748

ARM - lift, RH

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G16749

ARM - lift, LH

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G16754

END - swivel, RH lift arm

1шт.

G16755

END - swivel, LH lift arm

1шт.

G16756

BOLT - shoulder, stabilizer, Serial Range: bar-bracket

2шт.

5/8" NF HEX. NUT AND LOCKWASHER

2шт.

G16757

BAR - stabilizer

2шт.

G45096

ARM - draft, RH

1шт.

G45097

ARM - draft, LH

1шт.

G45107

LINCH PIN - implement mounting pin

2шт.

G45127

SHACKLE - chain, includes G46139 pin w/cotter pin

4шт.

G46139

PIN

- chain shackle

4шт.

3/22" X 3/4" COTTER PIN

4шт.

G46141

LINK - lift, LH (General purpose)

1шт.

O5087A

X

WASHER - thrust, crank gear

1шт.

O4995AB

X

KNOB - spinner

1шт.

O8582AB

X

SNAP RING - upper housing

1шт.

O8635AB

X

BALL - crank bearing

1шт.

O265BL

WASHER - adjusting screw gear

1шт.

O2104FH

X

ROLL PIN - crank gear (5/32" x 7/8")

1шт.

VP582

CHAIN - sway

2шт.

VT2964

BOLT - spinner knob (Utility)

1шт.

3/8" NC HEX. NUT AND LOCKWASHER

1шт.

VT2969

X

PIN - yoke, lift link

3шт.

5/32" X 1-1/4" COTTER PIN

3шт.

VT2971

YOKE - LH lift link

1шт.

VT2973

X

SCREW - pivot, RH lift link

2шт.

7/8" IT Shakeproof lockwasher

2шт.
