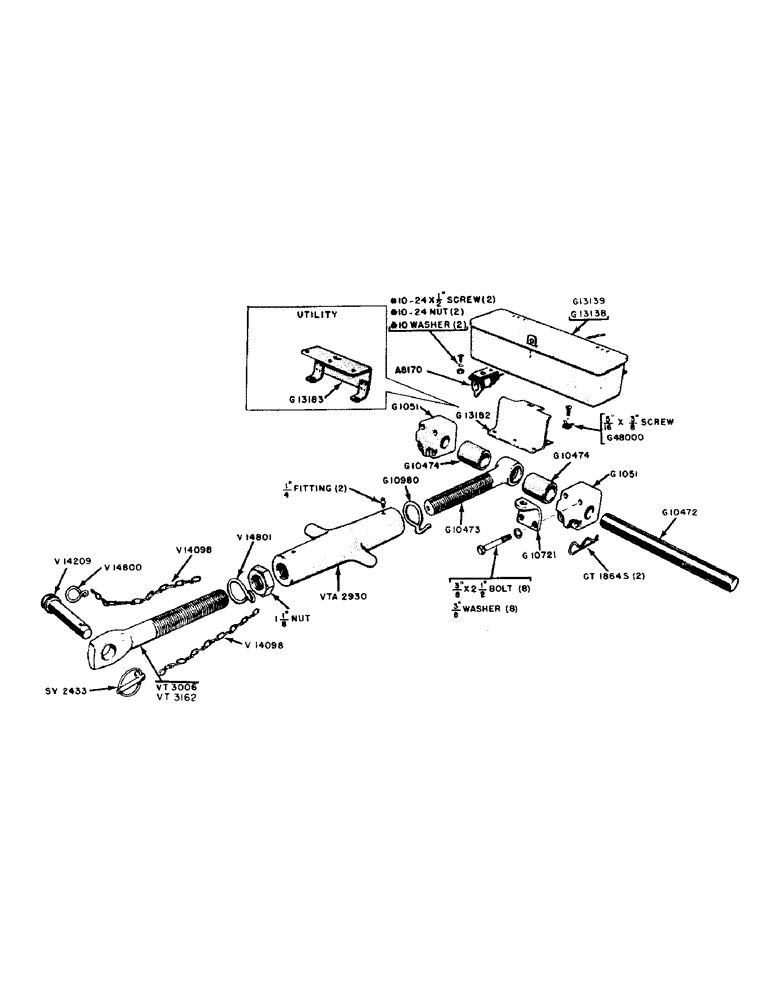

Запчасти Case IH 300-SERIES (163) - EAGLE HITCH TURNBUCKLE AND TOOL BOX (09) - CHASSIS

G1051

BRACKET - mounting

2шт.

3/8" X 2-1/2" HEX. HD. BOLT, UNC W/LOCKWASHER

8шт.

G10472

SHAFT - turnbuckle pivot

1шт.

G10473

EYE - adjusting link, front

1шт.

G10474

SPACER

- pivot shaft (1-15/16" long)

1шт.

A39002

SUPPORT

- control rod, P.T.O. (Replaces G10721)

1шт.

G10980

HOOK - turnbuckle carrying

1шт.

G13138

TOOL BOX (See G13139)

1шт.

G13139

TOOL BOX ASSEMBLY W/BRACKETS (Gen. purpose w/E.H.)

1шт.

G13182

BRACKET - tool box and link hook (Gen. purpose w/E.H.)

1шт.

5/16" X 5/8" MACH. SCREW, NC RD. HD.

1шт.

G13183

BRACKET - tool box and link hook (Utility w/E.H.)

1шт.

5/16" X 5/8" RD. HD. MACH. SCREW NC

1шт.

1502286C2

NUT,Floating Cage, 5/16"-18

- tool box to bracket (5-16" cage nut) (Replaces G48000)

1шт.

A30379

TURNBUCKLE (Use VTA2930) (Replaces VT600)

1шт.

V14098

CHAIN - pin retaining (#4 Tenso, 9 links)

2шт.

G16735

PIN

- mast. (Replaces V14209)

1шт.

A30706

"S" HOOK - small

1шт.

A29730

HOOK

"S" HOOK - large (Replaces V14800)

1шт.

A29201

EYE - rear adjusting (Replaces V14801)

1шт.

1-1/8" NC HEX. NUT (Replaces VT3006)

1шт.

A29246

EYE - rear, long (Competitive implements) (Repalces VT3162)

1шт.

A30379

TURNBUCKLE WITH FITTINGS (Includes (2) 1/4" fitting straight drive (Lincoln #5029) (Replaces VTA2930)

1шт.

T25682

SPLIT PIN

PIN - spring, pivot shaft retaining (Replaces CT1864S)

2шт.

A30338

PIN

RETAINING PIN AND RING ASSEMBLY (Klick pin) (Replaces SV2433)

1шт.
