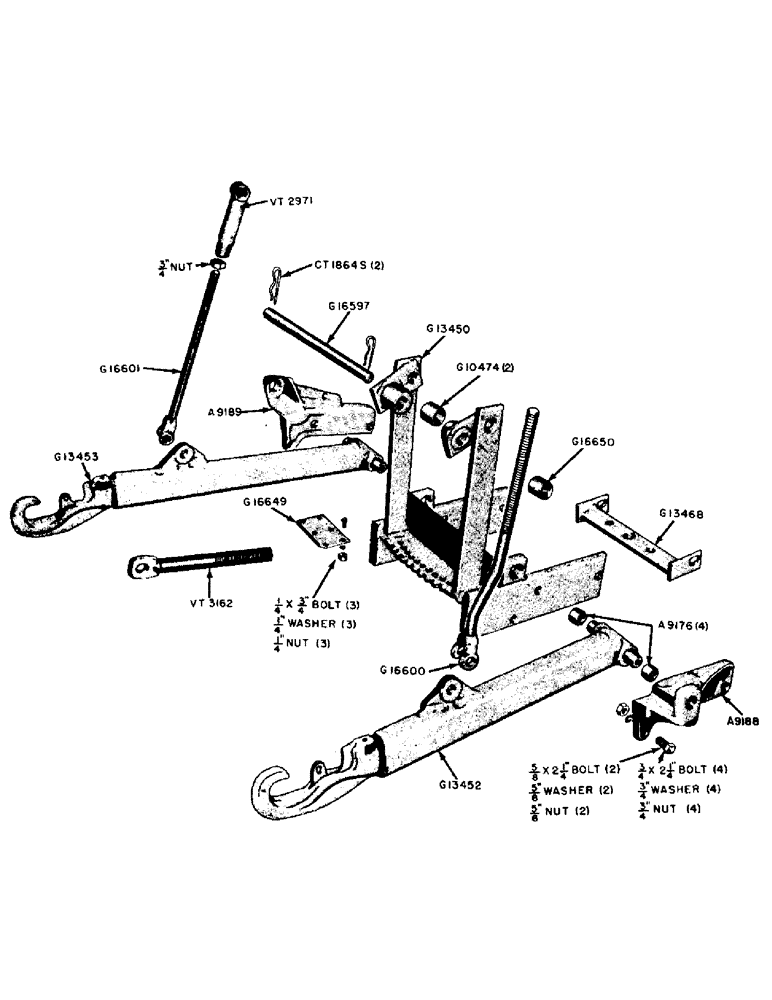

Запчасти Case IH 300-SERIES (162) - EAGLE HITCH DRAFT ARMS AND LIFT LINKS, 302-312 (09) - CHASSIS

A9176

BUSHING

- draft arm pivot bracket and mounting bracket

4шт.

A9186

BRACKET (Use A9188)

1шт.

A9187

BRACKET (USE A9189)

1шт.

A9188

BRACKET - draft arm pivot, RH, includes A9176 bushing

1шт.

5/8" X 2-1/4" NC HEX. HD. BOLT W/LOCKWASHER

1шт.

3/4" X 2-1/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

A9189

BRACKET - draft arm pivot, LH, includes A9176 bushing

1шт.

5/8" X 2-1/4" NC HEX. HD. BOLT W/LOCKWASHER

1шт.

3/4" X 2-1/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

G10474

SPACER

- turnbuckle pivot shaft (1-15/16" long)

2шт.

G13450

BRACKET - mounting pivot brackets, turnbuckle and swinging drawbar (Includes 2 - A9176 bushing)

1шт.

G13452

ARM - draft, RH

1шт.

G13453

ARM - draft, LH

1шт.

G13468

SUPPORT - front, drawbar pin

1шт.

G16597

PIN - pivot, depth adjusting turnbuckle

1шт.

G16600

LINK

- lift, adjusting screw, RH

1шт.

G16601

LINK - lift, LH

1шт.

3/4" NF HEX. JAM NUT

1шт.

G16649

BRACKET - hookup, turnbuckle

1шт.

1/4" X 3/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

3шт.

G16650

SPACER - turnbuckle pivot shaft (1-5/16" long)

1шт.

VT2971

YOKE - lift link, LH

1шт.

VT3162

EYE - rear adjusting, Eagle Hitch turnbuckle

1шт.

CT1864S

X

PIN - spring, pivot shaft retaining

2шт.
